Front Side Door Window Belt Reveal Molding Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

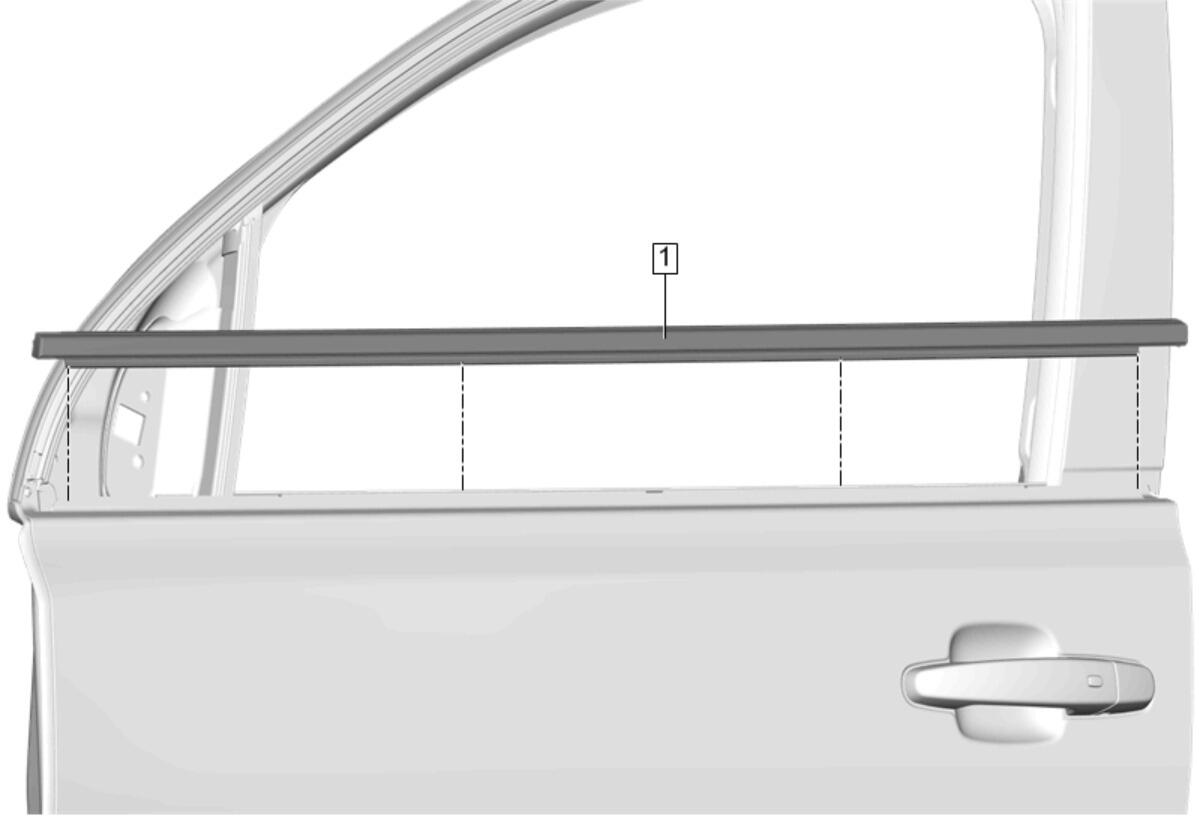

Fig 1: Front Side Door Window Belt Reveal Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Window Upper Reveal Molding Replacement Outside Rearview Mirror Replacement
1	Front Side Door Window Belt Reveal Molding Procedure Place the front door window in the full down position. Apply masking tape to the outer applique and door frame. Using the appropriate tool, lift the belt molding up to remove from the door flange. Press firmly to insert the front side door window belt reveal molding back on the door flange. Inspect the window for proper operation.

Callout

Component Name

Preliminary Procedures

Front Side Door Window Upper Reveal Molding Replacement
Outside Rearview Mirror Replacement

Front Side Door Window Belt Reveal Molding

Procedure

Place the front door window in the full down position.
Apply masking tape to the outer applique and door frame.
Using the appropriate tool, lift the belt molding up to remove from the door flange.
Press firmly to insert the front side door window belt reveal molding back on the door flange.
Inspect the window for proper operation.
