Front Side Door Trim Panel Applique Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

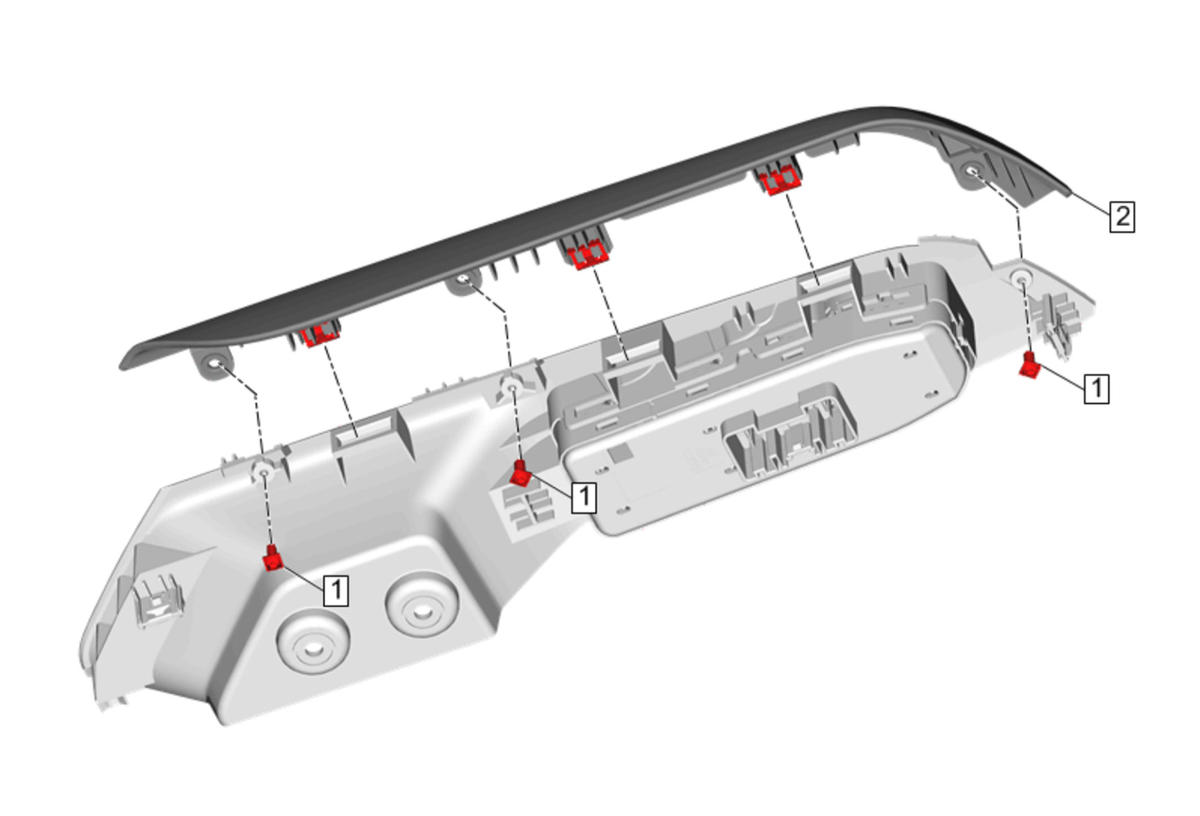

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Side Door Accessory Switch Mount Plate Replacement - Driver Side |
|
| 1 | Front Side Door Trim Retainer Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Side Door Trim Panel Applique Procedure Use a flat-bladed plastic trim tool to disengage clips. |
