Front Side Door Accessory Switch Mount Plate Replacement - Driver Side

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

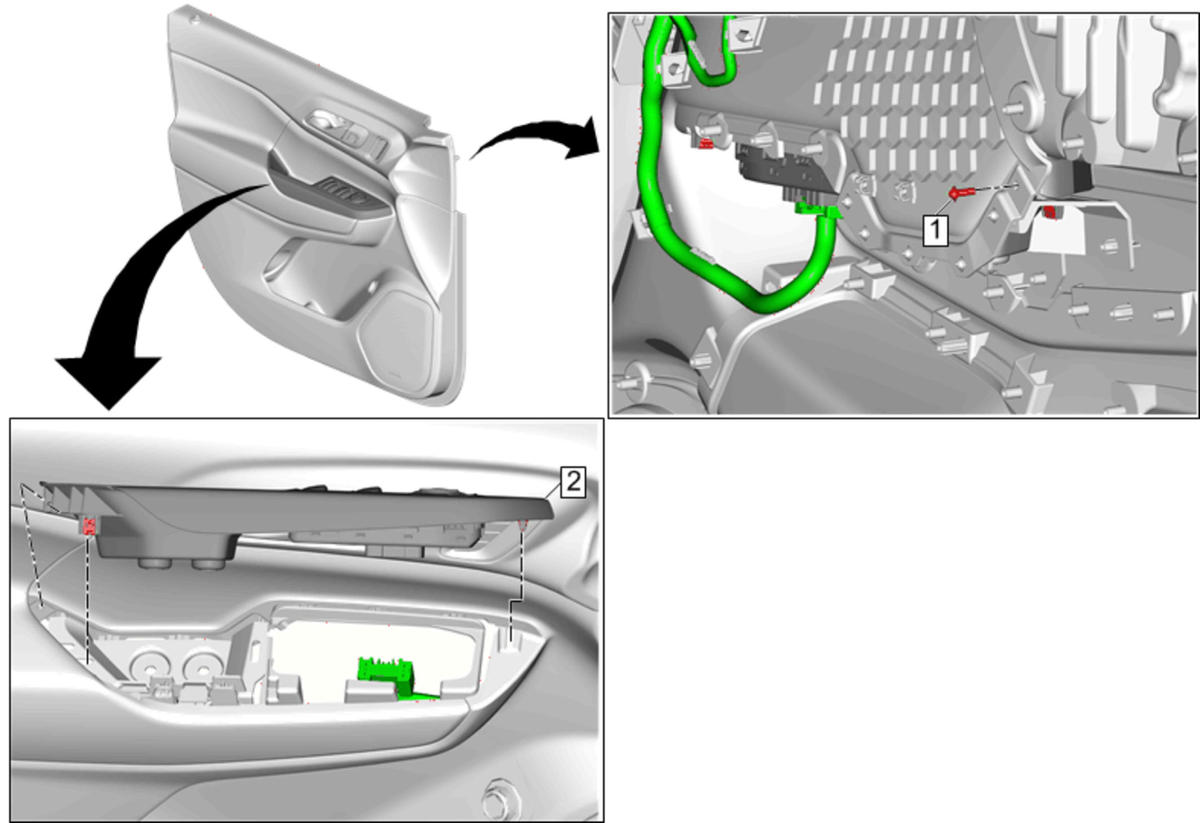

Fig 1: Front Side Door Accessory Switch Mount Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement
1	Front Side Door Trim Retainer Bolt CAUTION: Refer to Fastener Caution . NOTE: Bolt is located on the backside of the door trim panel. Tighten 2.5 N.m (22 lb in)
2	Front Side Door Accessory Switch Mount Plate - Driver Side Procedure Using a flat-bladed plastic trim tool, start at the front of the accessory switch mount plate and gently insert trim tool to lift the front side door accessory switch mount plate from the door trim assembly. Disconnect the electrical connector. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure
Front Side Door Trim Replacement

Front Side Door Trim Retainer Bolt

CAUTION:

Refer to Fastener Caution .

NOTE:

Bolt is located on the backside of the door trim panel.

Tighten
2.5 N.m (22 lb in)

Front Side Door Accessory Switch Mount Plate - Driver Side

Procedure

Using a flat-bladed plastic trim tool, start at the front of the accessory switch mount plate and gently insert trim tool to lift the front side door accessory switch mount plate from the door trim assembly.
Disconnect the electrical connector.
Transfer parts as necessary.
