Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle

Fig 1: Rear Bumper Fascia Trailer Hitch Access Hole Cover

Courtesy of GENERAL MOTORS COMPANY

Remove Rear Bumper Fascia Trailer Hitch Access Hole Cover (1)Rear Bumper Fascia Trailer Hitch Access Hole Cover Replacement

Fig 2: Tow Vehicle Electrical Receptacle Housing Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Disconnect Tow Vehicle Electrical Receptacle Housing Electrical Connector (1)

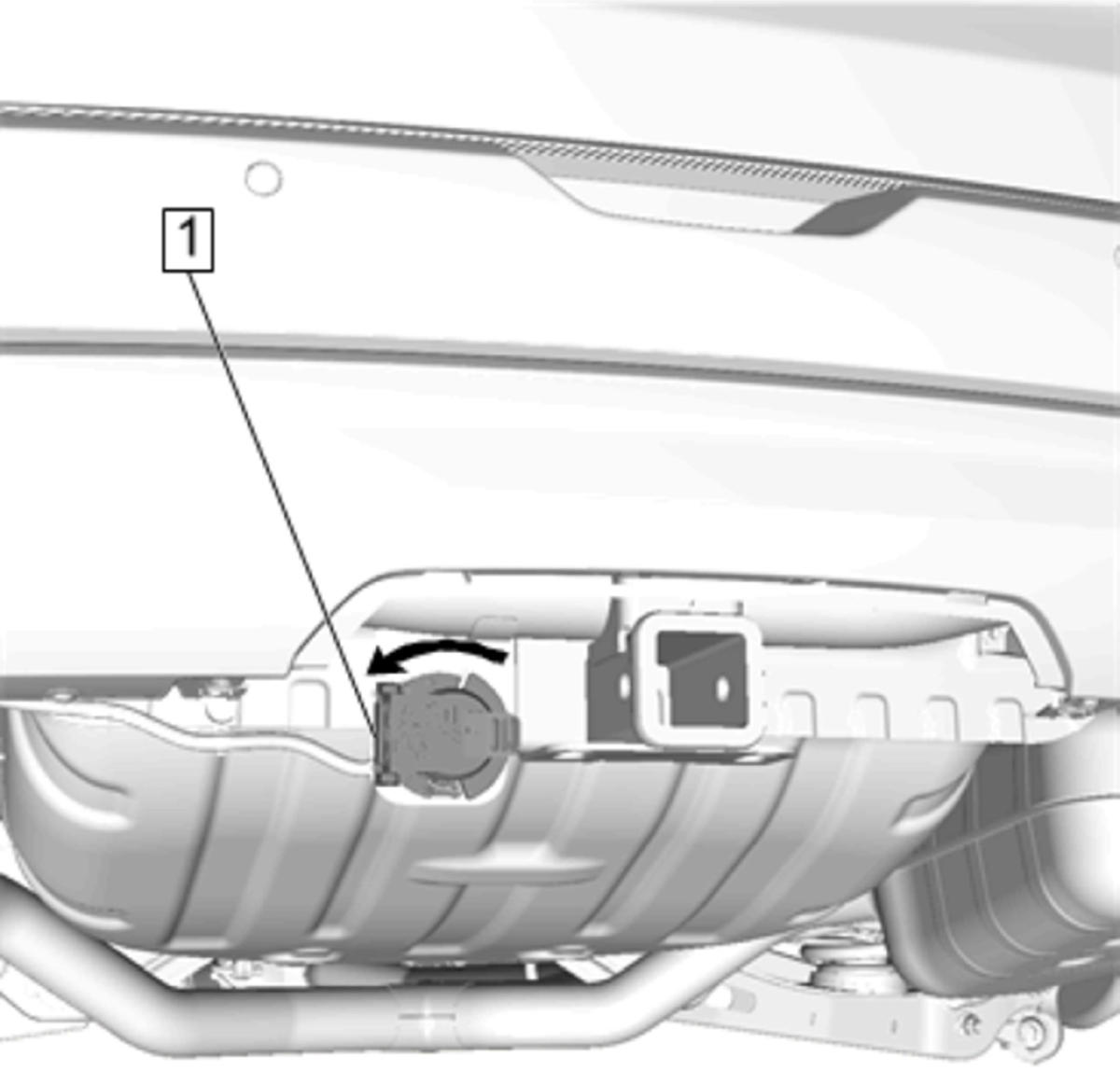

Fig 3: Rotate Left Tow Vehicle Electrical Receptacle Housing

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Release the locking tabs.

Rotate Left Tow Vehicle Electrical Receptacle Housing (1)

Fig 4: Tow Vehicle Electrical Receptacle Housing

Courtesy of GENERAL MOTORS COMPANY

Remove Tow Vehicle Electrical Receptacle Housing (1)
