Rear Bumper Fascia Trailer Hitch Access Hole Cover Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

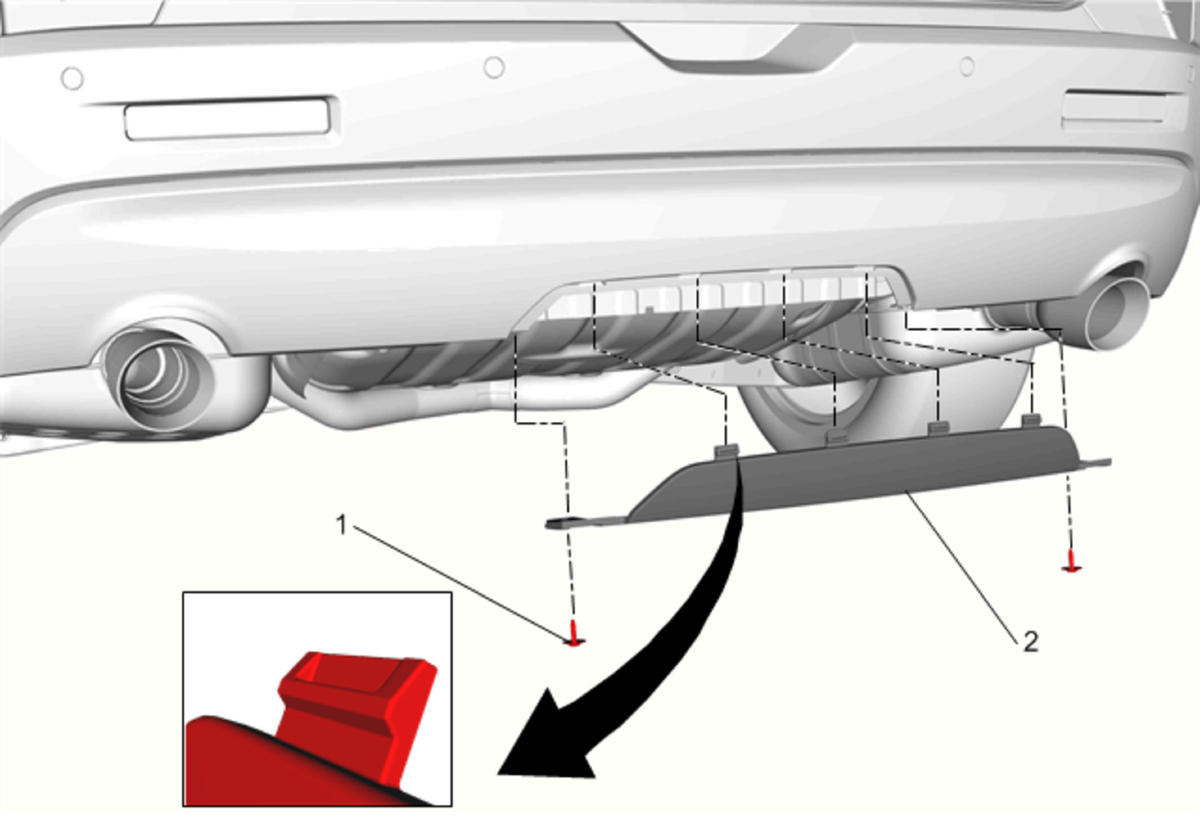

| Callout | Component Name |
|---|---|
| 1 | Rear Bumper Fascia Trailer Hitch Access Hole Cover Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Bumper Fascia Trailer Hitch Access Hole Cover Procedure Using a trim type tool, release the retainer tabs and carefully pull the rear bumper fascia trailer hitch access hole cover down from the rear bumper fascia. |
