Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

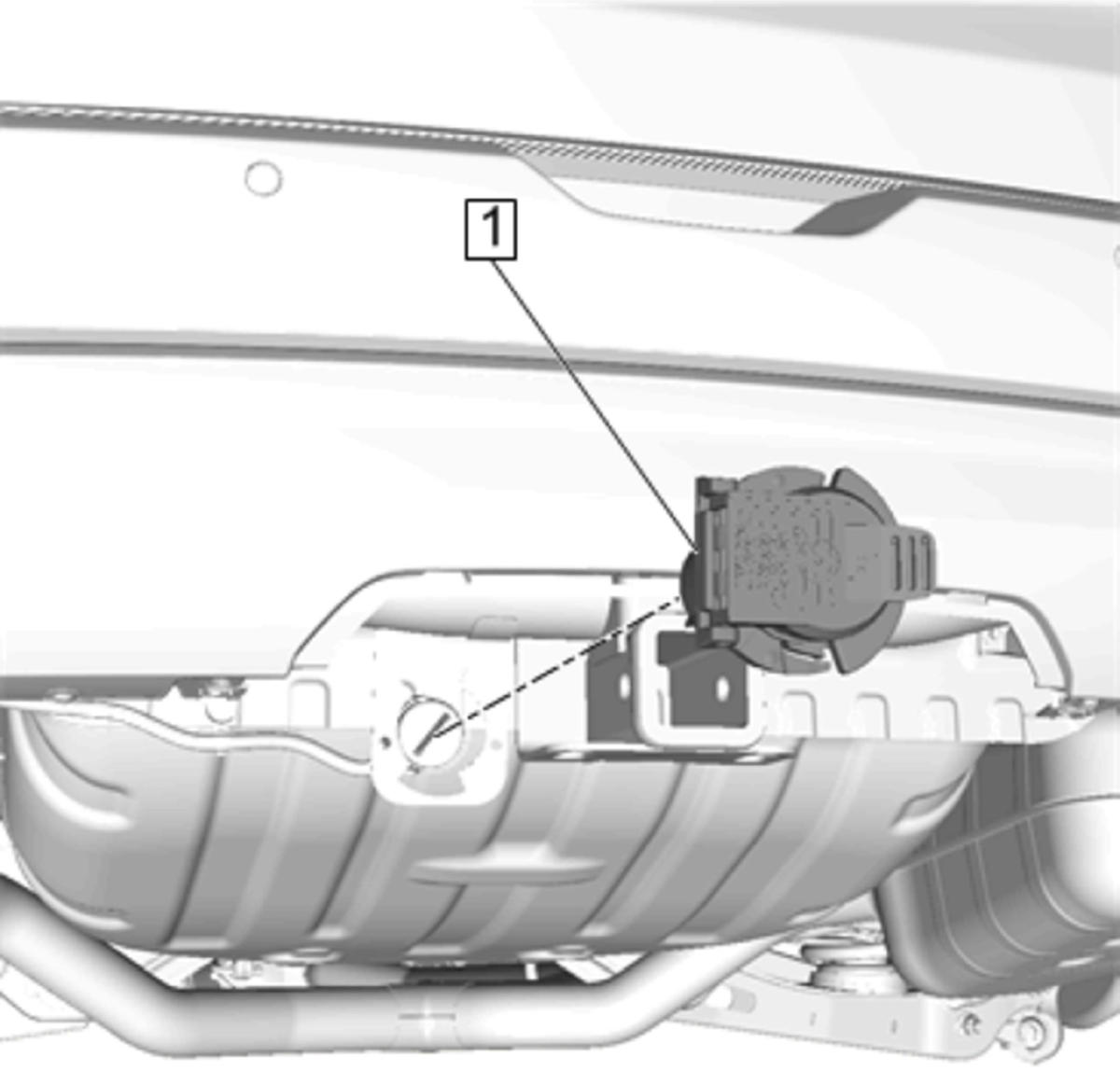

Fig 1: Tow Vehicle Electrical Receptacle Housing

Courtesy of GENERAL MOTORS COMPANY

Install Tow Vehicle Electrical Receptacle Housing (1)

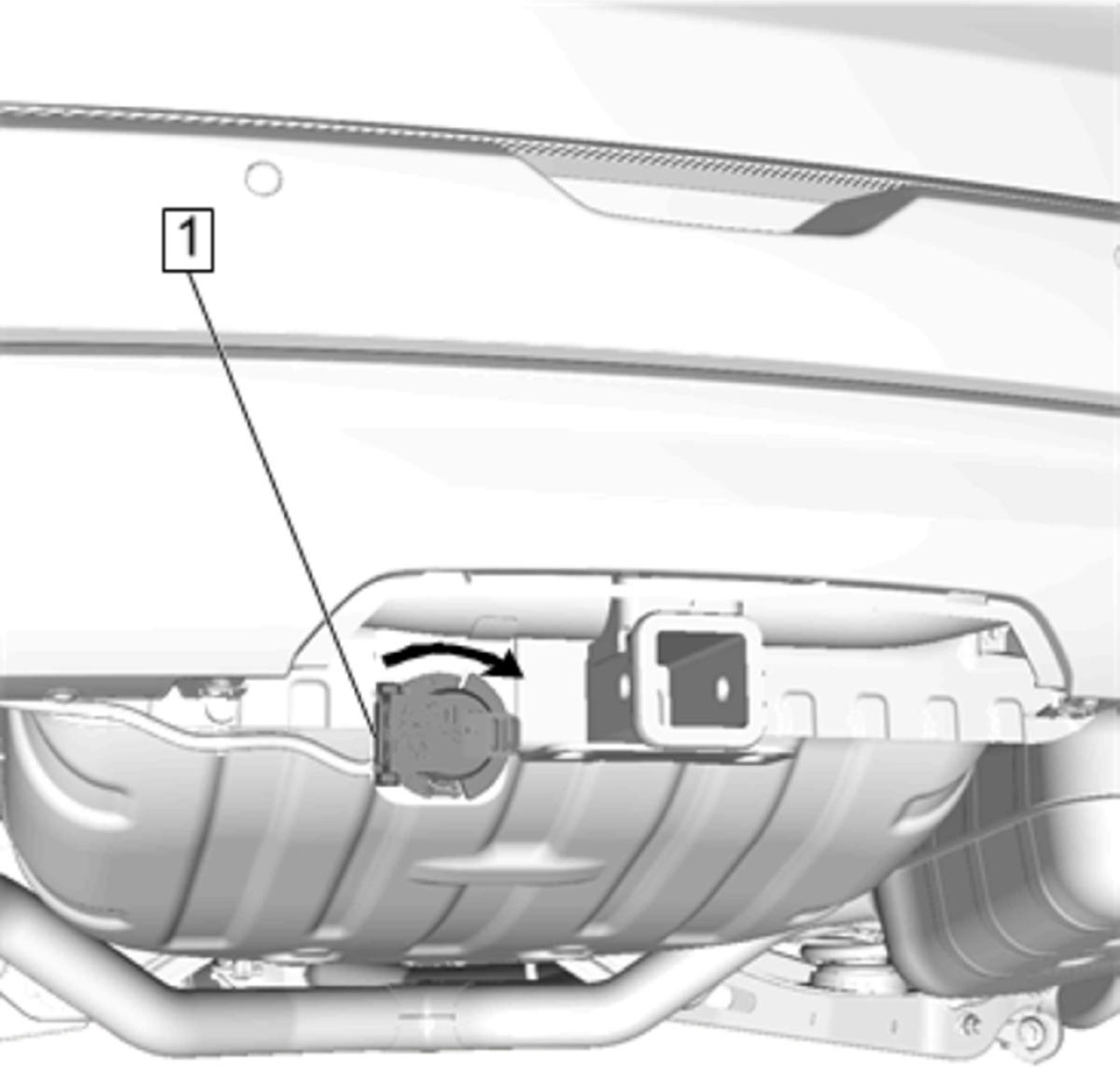

Fig 2: Rotate Right Tow Vehicle Electrical Receptacle Housing

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Engage the locking tabs.

Rotate Right Tow Vehicle Electrical Receptacle Housing (1)

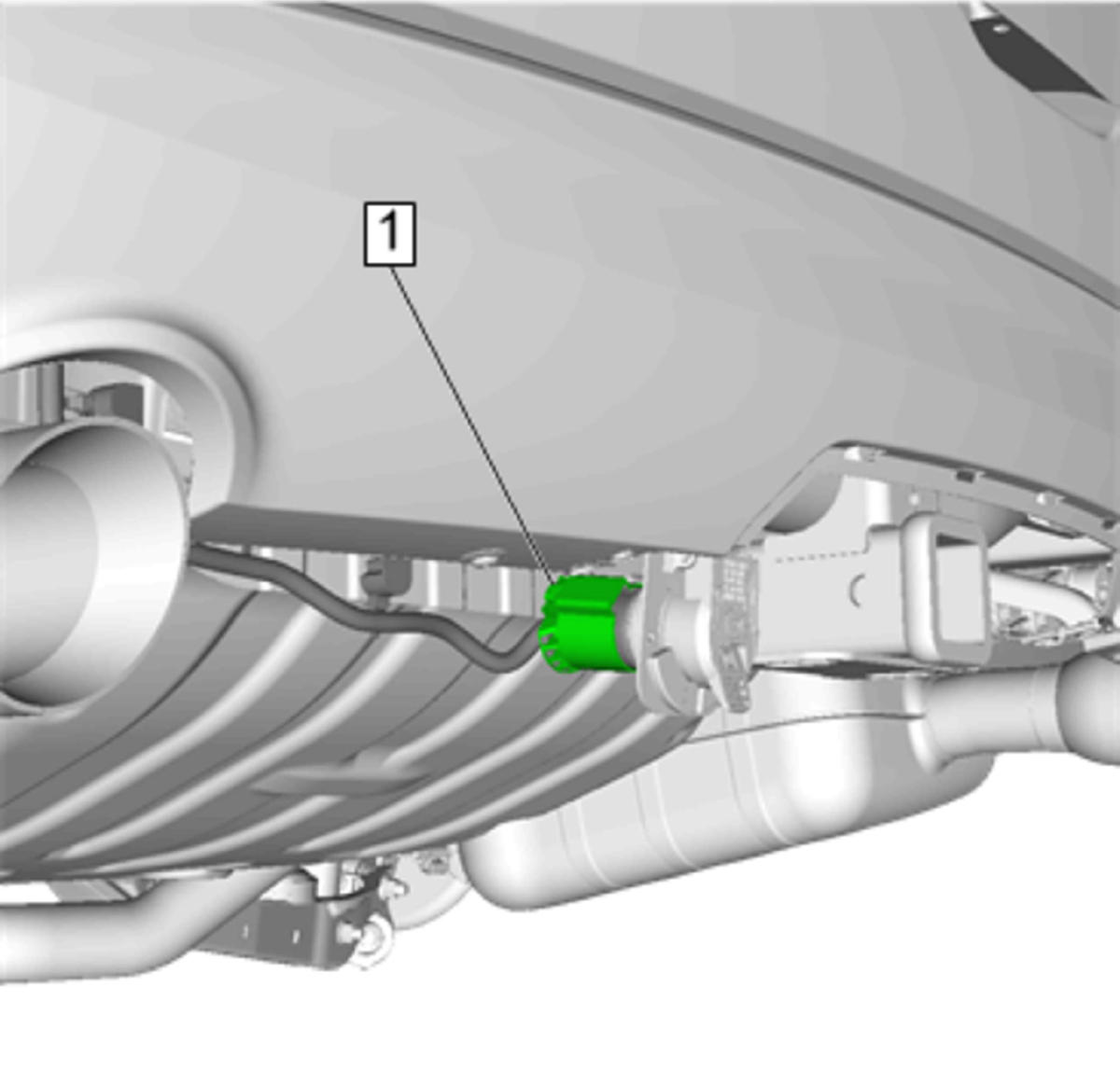

Fig 3: Tow Vehicle Electrical Receptacle Housing Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Connect Tow Vehicle Electrical Receptacle Housing Electrical Connector (1)

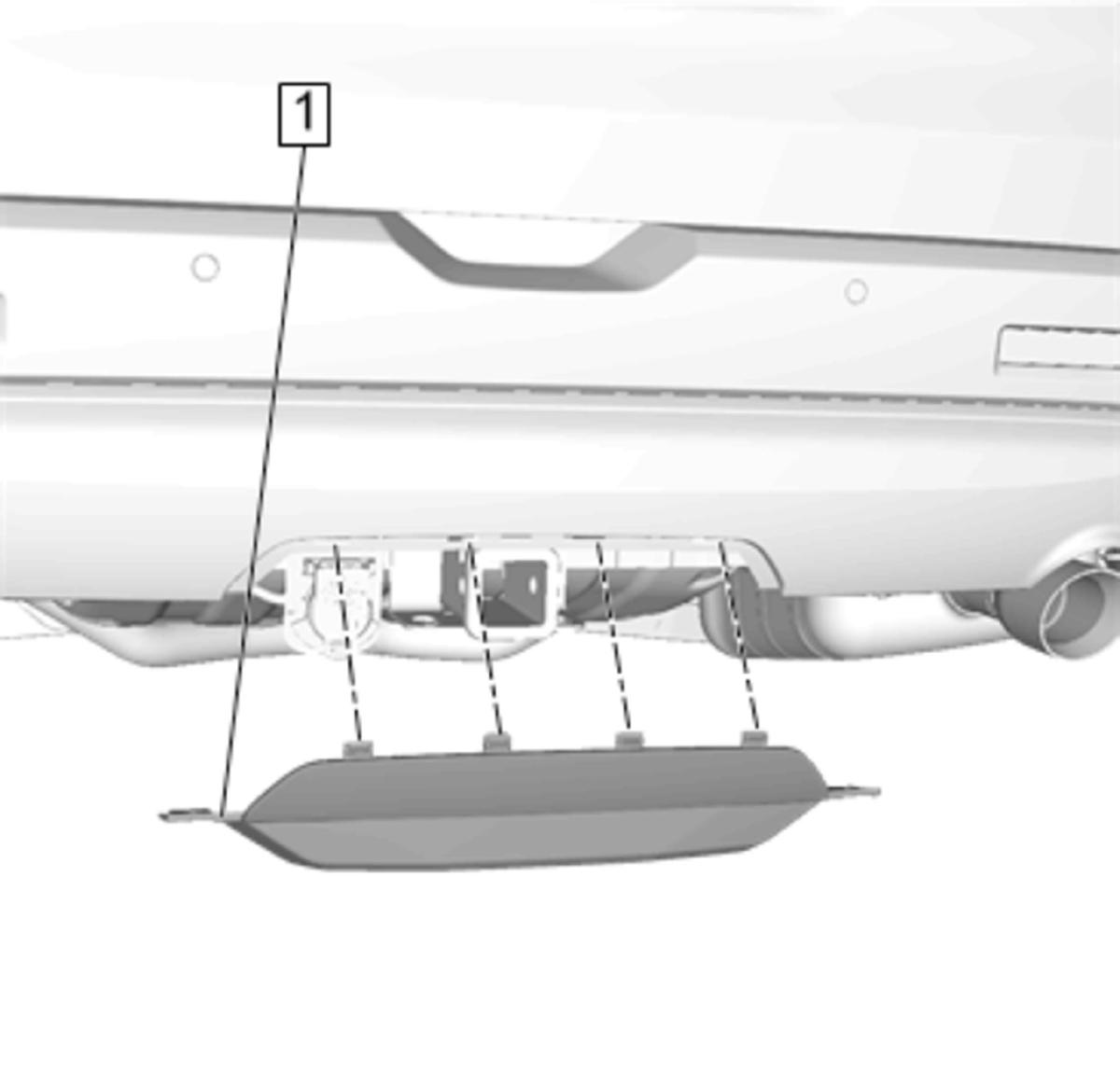

Fig 4: Rear Bumper Fascia Trailer Hitch Access Hole Cover

Courtesy of GENERAL MOTORS COMPANY

Install Rear Bumper Fascia Trailer Hitch Access Hole Cover (1)Rear Bumper Fascia Trailer Hitch Access Hole Cover Replacement
