Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

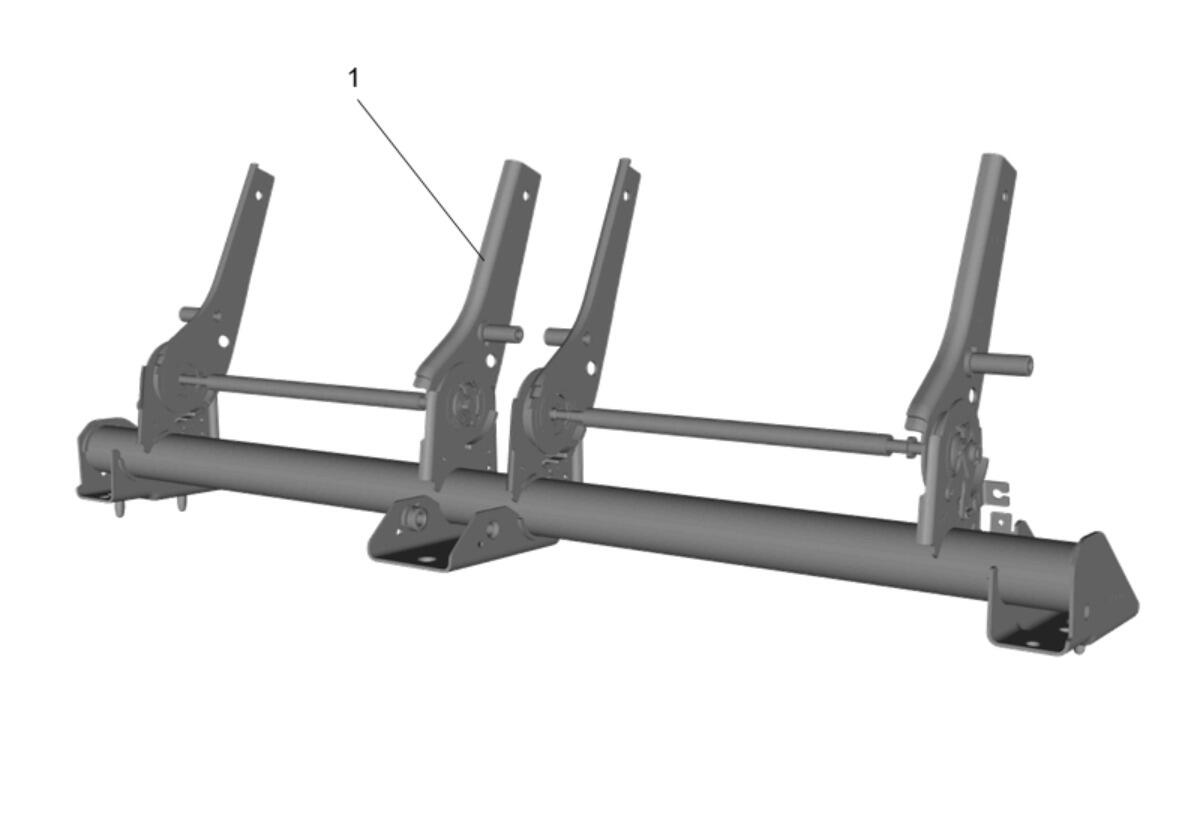

    Fig 1: 3rd Row Seat Riser
    GM4382726Courtesy of GENERAL MOTORS COMPANY
  1. Install 3rd Row Seat Riser (1)

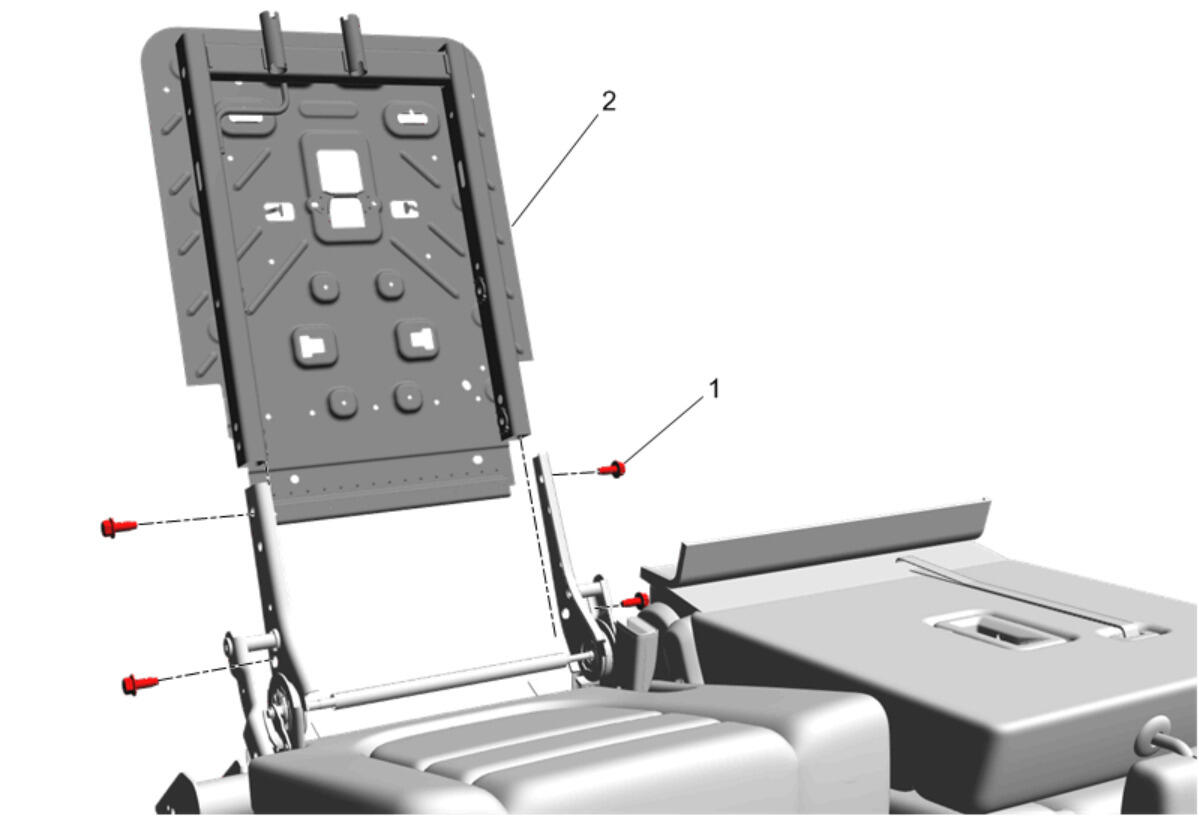

    2. Fig 2: 3rd Row Seat Back Frame
    GM4381037Courtesy of GENERAL MOTORS COMPANY
  2. Install 3rd Row Seat Back Frame (2). Refer to 3rd Row Seat Back Frame Replacement
    3. Fig 3: Rear Seat Pull Strap Rivet and Cable
    GM4381040Courtesy of GENERAL MOTORS COMPANY
  3. Connect the cable (2) to the recliner.

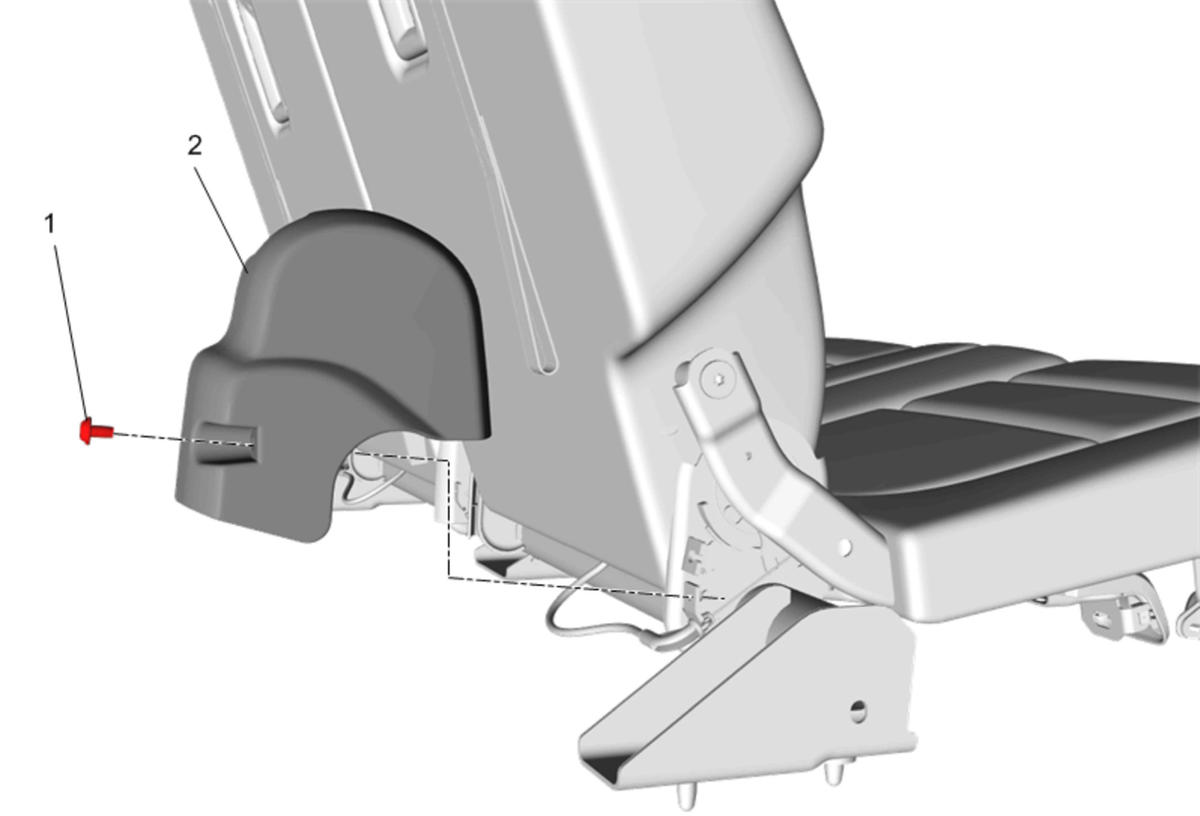

    4. Fig 4: 3rd Row Seat Hinge Finish Cover - Outboard
    GM4377367Courtesy of GENERAL MOTORS COMPANY
  4. Install 3rd Row Seat Hinge Finish Cover - Outboard (2). Refer to 3rd Row Seat Hinge Finish Cover Replacement (Outboard)

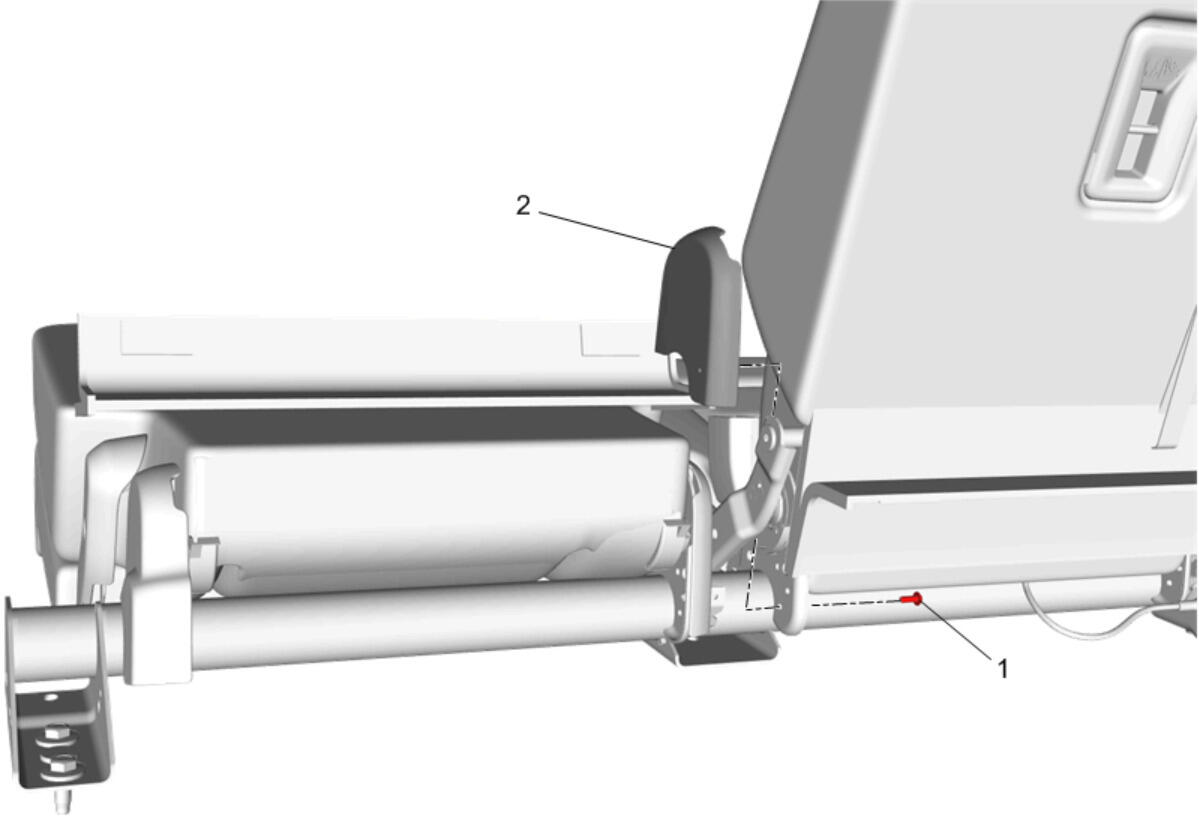

    5. Fig 5: 3rd Row Seat Hinge Finish Cover - Inboard
    GM4377353Courtesy of GENERAL MOTORS COMPANY
  5. Install 3rd Row Seat Hinge Finish Cover - Inboard (2). Refer to 3rd Row Seat Hinge Finish Cover Replacement (Inboard)
    6. Fig 6: 3rd Row Seat Cushion Frame
    GM4381038Courtesy of GENERAL MOTORS COMPANY
  6. Install 3rd Row Seat Cushion Frame (2). Refer to 3rd Row Seat Cushion Frame Replacement

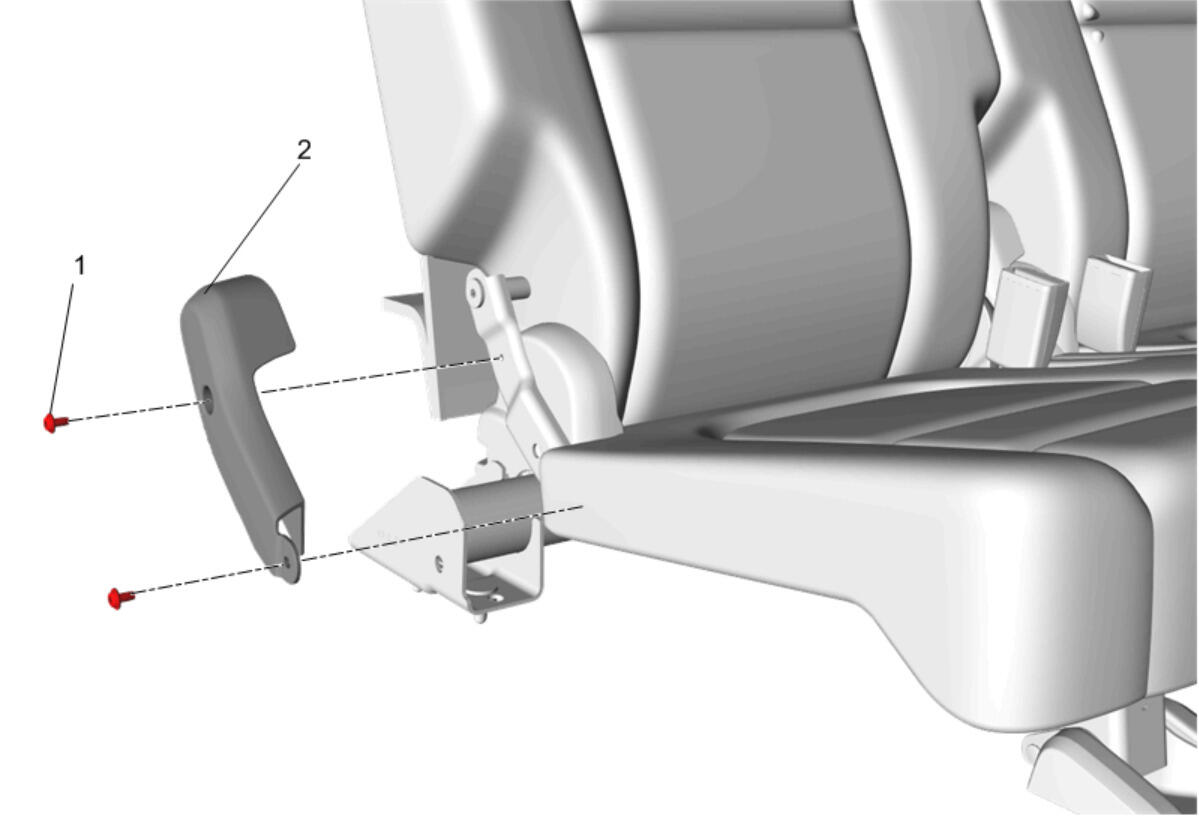

    7. Fig 7: 3rd Row Seat Back Hinge Finish Cover - Outboard
    GM4377363Courtesy of GENERAL MOTORS COMPANY
  7. Install 3rd Row Seat Back Hinge Finish Cover - Outboard (2). Refer to 3rd Row Seat Back Hinge Finish Cover Replacement (Outboard)
    8. Fig 8: 3rd Row Seat Back Hinge Finish Cover - Inboard
    GM4377358Courtesy of GENERAL MOTORS COMPANY
  8. Install 3rd Row Seat Back Hinge Finish Cover - Inboard (2). Refer to 3rd Row Seat Back Hinge Finish Cover Replacement (Inboard)

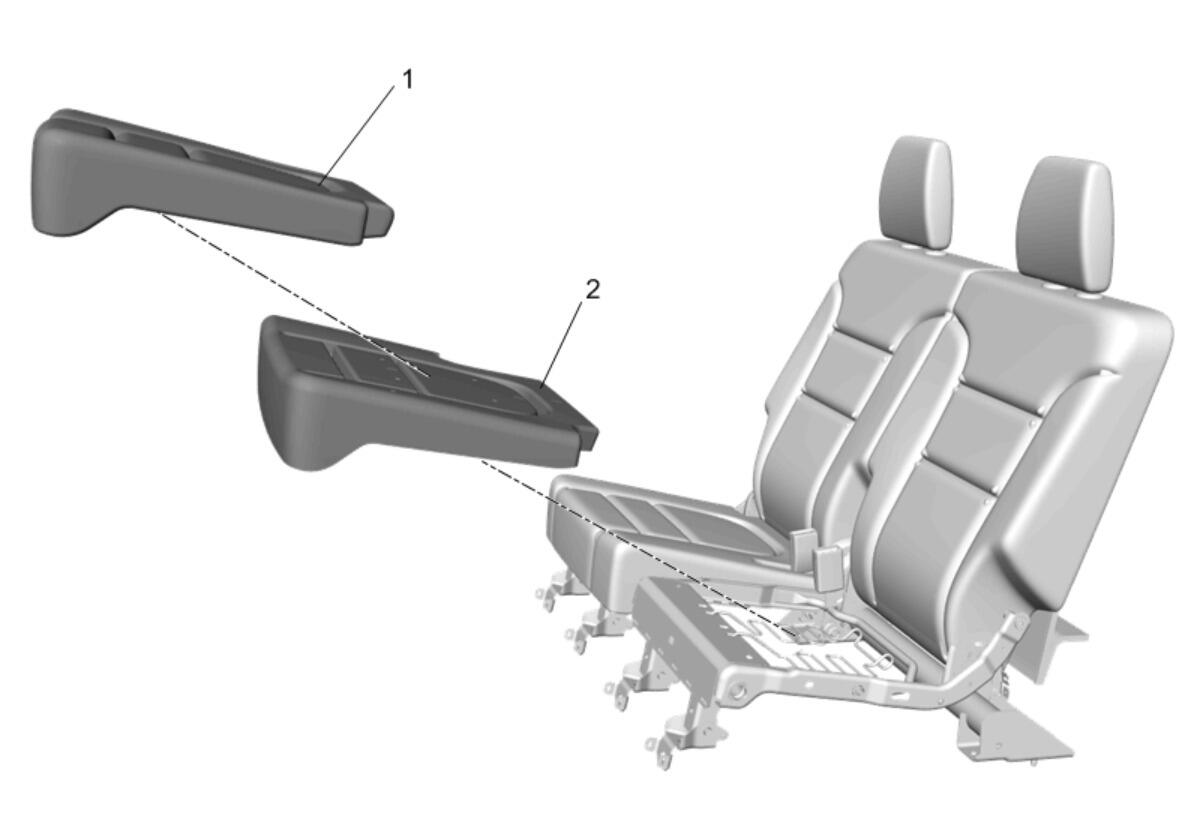

    9. Fig 9: 3rd Row Seat Cushion Cover and Pad
    GM4381043Courtesy of GENERAL MOTORS COMPANY
  9. Install 3rd Row Seat Cushion Cover and Pad (2). Refer to 3rd Row Seat Cushion Cover and Pad Replacement

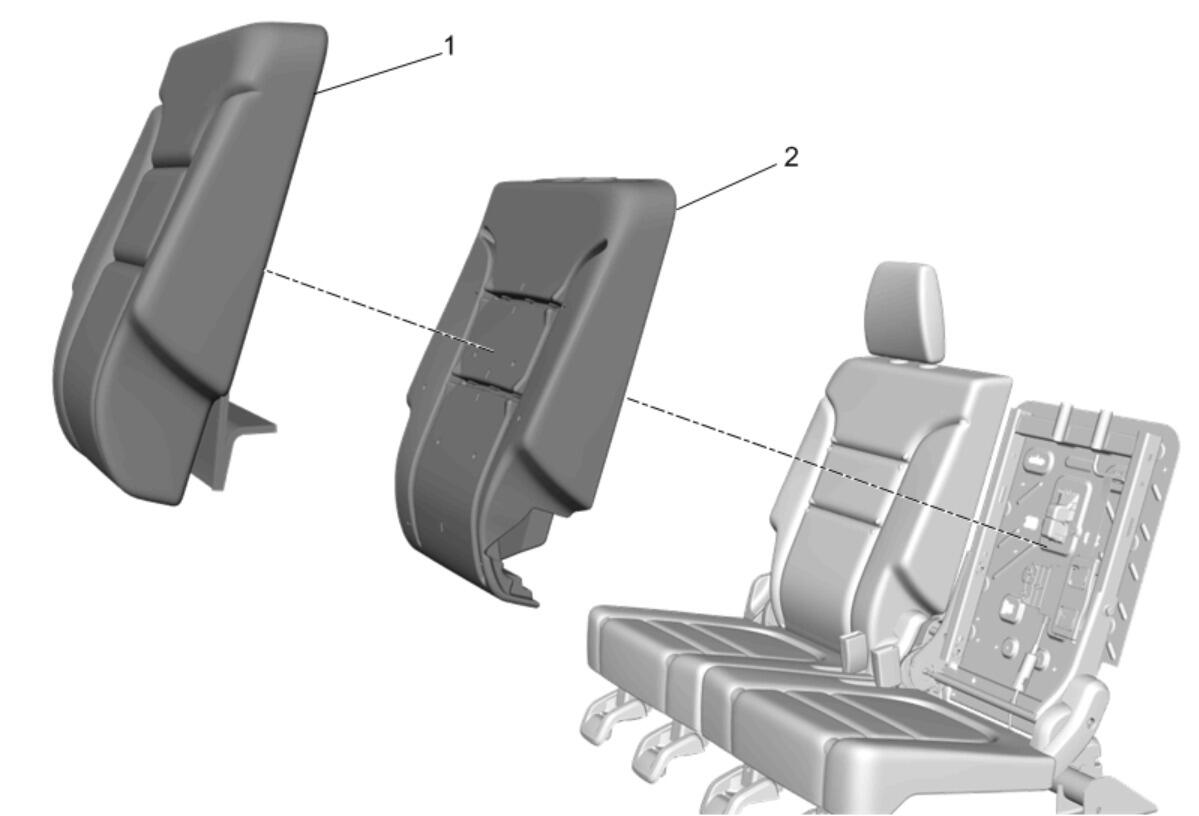

    10. Fig 10: 3rd Row Seat Back Cover and Pad
    GM4381035Courtesy of GENERAL MOTORS COMPANY
  10. Install 3rd Row Seat Back Cover and Pad (2). Refer to 3rd Row Seat Back Cover and Pad Replacement
