3rd Row Seat Back Hinge Finish Cover Replacement (Inboard)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

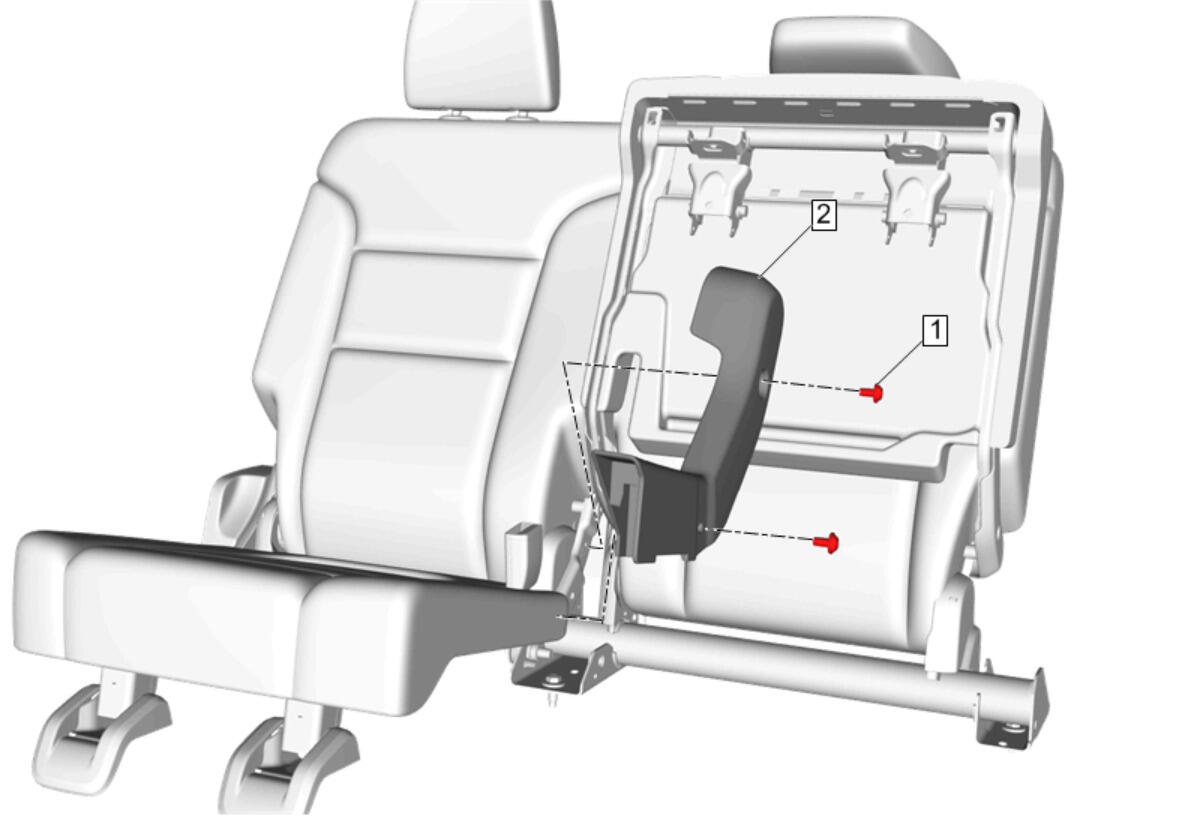

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the 3rd row seat front bolts and lift the seat cushion. Refer to 3rd Row Seat Removal and Installation |
|
| 1 | 3rd Row Seat Back Hinge Finish Cover Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | 3rd Row Seat Back Hinge Finish Cover |
