Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: 3rd Row Seat
    GM4375342Courtesy of GENERAL MOTORS COMPANY
  1. Remove 3rd Row Seat (4). Refer to 3rd Row Seat Removal and Installation
    2. Fig 2: Rear Seat Anchor Plate Bezel
    GM4318445Courtesy of GENERAL MOTORS COMPANY
  2. Remove Rear Seat Anchor Plate Bezel (1). Refer to Rear Seat Anchor Plate Bezel Replacement
  3. Disengage the J-channel retainers from the seat back cushion frame.
  4. Open the seat back cushion cover zippers.
  5. Reposition the seat back cover and pad.
  6. Disconnect the head restraint cable from the rear seat pull strap.

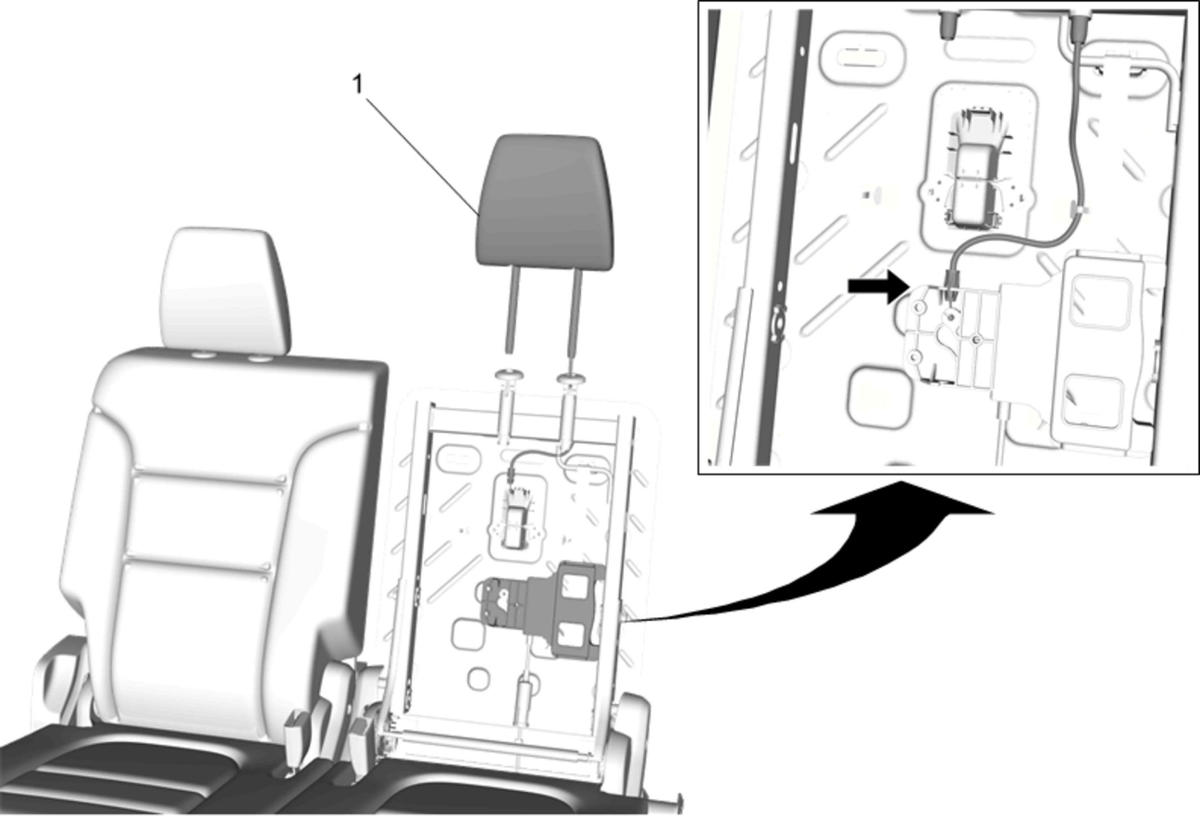

    7. Fig 3: 3rd Row Seat Head Restraint
    GM4378959Courtesy of GENERAL MOTORS COMPANY
  7. Remove 3rd Row Seat Head Restraint (1). Refer to 3rd Row Seat Head Restraint Replacement
    8. Fig 4: 3rd Row Seat Head Restraint Guide
    GM4143750Courtesy of GENERAL MOTORS COMPANY
  8. Remove 3rd Row Seat Head Restraint Guide (1). Refer to 3rd Row Seat Head Restraint Guide Replacement
    9. Fig 5: 3rd Row Seat Back Cover and Pad
    GM4381035Courtesy of GENERAL MOTORS COMPANY
  9. Remove 3rd Row Seat Back Cover (1)
  10. Remove 3rd Row Seat Back Pad (2)
