Luggage Compartment Components Left

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Items
1: K124 Active Safety Control Module (UGN) K124 Active Safety Control Module X1 K124 Active Safety Control Module X2
2: X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body X1 X53A Fuse Block - Rear Body X2 X53A Fuse Block - Rear Body X3 X53A Fuse Block - Rear Body X4
3: K38 Chassis Control Module K38 Chassis Control Module (G96)K38 Chassis Control Module (Coupe-G96)K38 Chassis Control Module (Sedan-G96)
4: X92RA USB Receptacle - Rear Compartment (IO6+MAW) X92RA USB Receptacle - Rear Compartment
5: T10E Keyless Entry Antenna - Rear Compartment T10E Keyless Entry Antenna - Rear Compartment
6: K19 Suspension Control Module (F55) K19 Suspension Control Module
7: X50D Fuse Block - Battery X50D Fuse Block - Battery X1 X50D Fuse Block - Battery X2 X50D Fuse Block - Battery X3 X50D Fuse Block - Battery X4 X50D Fuse Block - Battery X5 (KL9)X50D Fuse Block - Battery X6 X50D Fuse Block - Battery X7
8: B18 Battery Current Sensor B18 Battery Current Sensor
9: T19 Power Supply Transformer
10: C1 Battery C1 Battery (-) (Battery Negative cable)C1 Battery (-) (-KL9)
11: B110 Battery Sensor Module (KL9) B110 Battery Sensor Module X1 B110 Battery Sensor Module X2 (KL9)

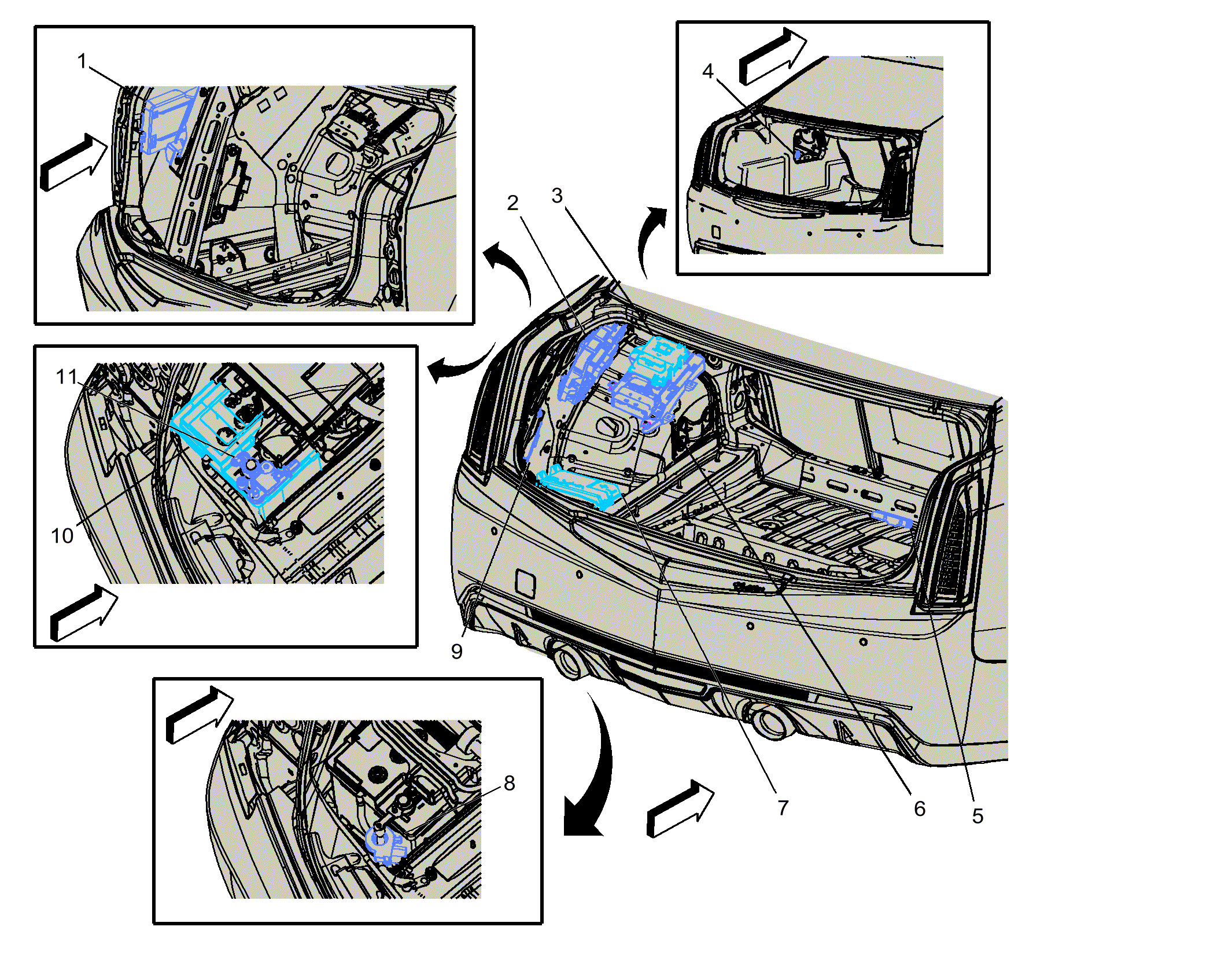

Fig 1: Luggage Compartment Components Left

Courtesy of GENERAL MOTORS COMPANY
