Radiator Grille Water Deflector Replacement - Lower

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

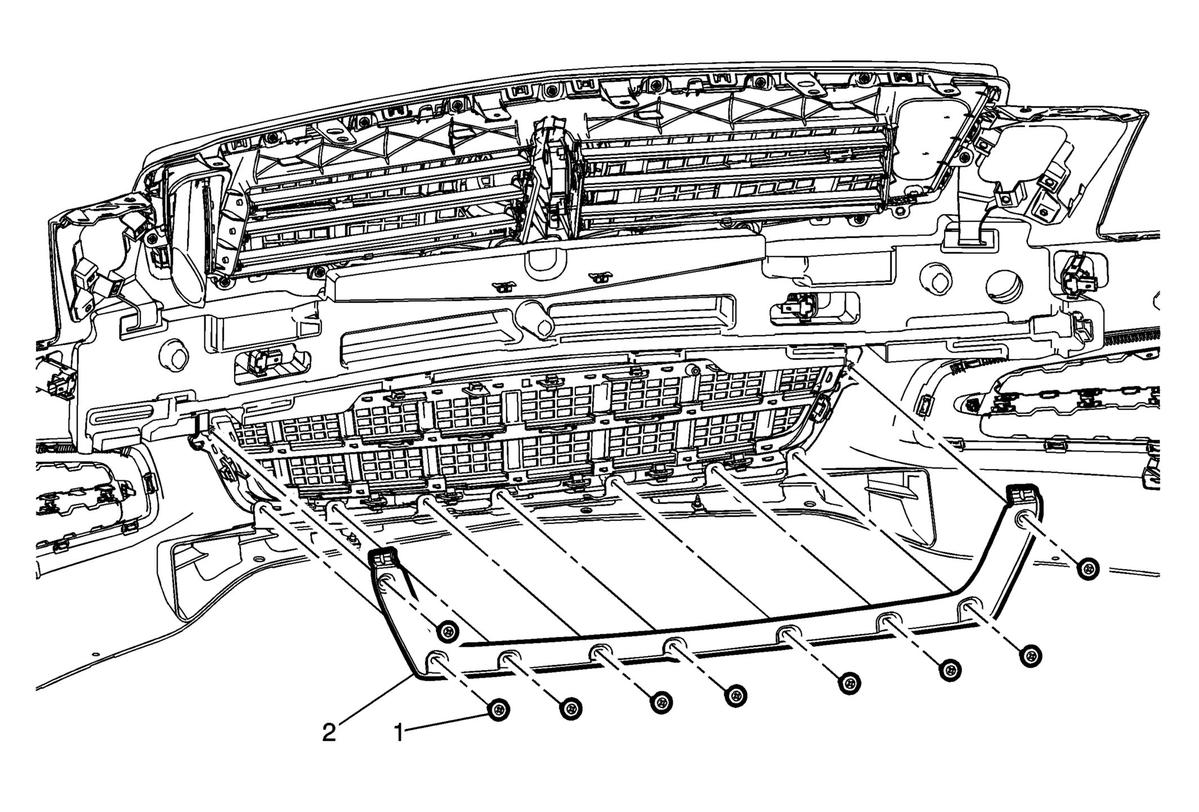

Fig 1: Radiator Grille Water Deflector & Bolts - Lower

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .
1	Radiator Grille Water Deflector Lower Bolts (Qty: 9) CAUTION: Refer to Fastener Caution .
2	Radiator Grille Water Deflector Lower Procedure Pull the radiator grille water deflector lower from the front bumper fascia.
