Front Fog Lamp Bezel Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper fascia lower molding. Refer to Front Bumper Fascia Lower Molding Replacement .
Place the bumper fascia face down on a clean protected surface.

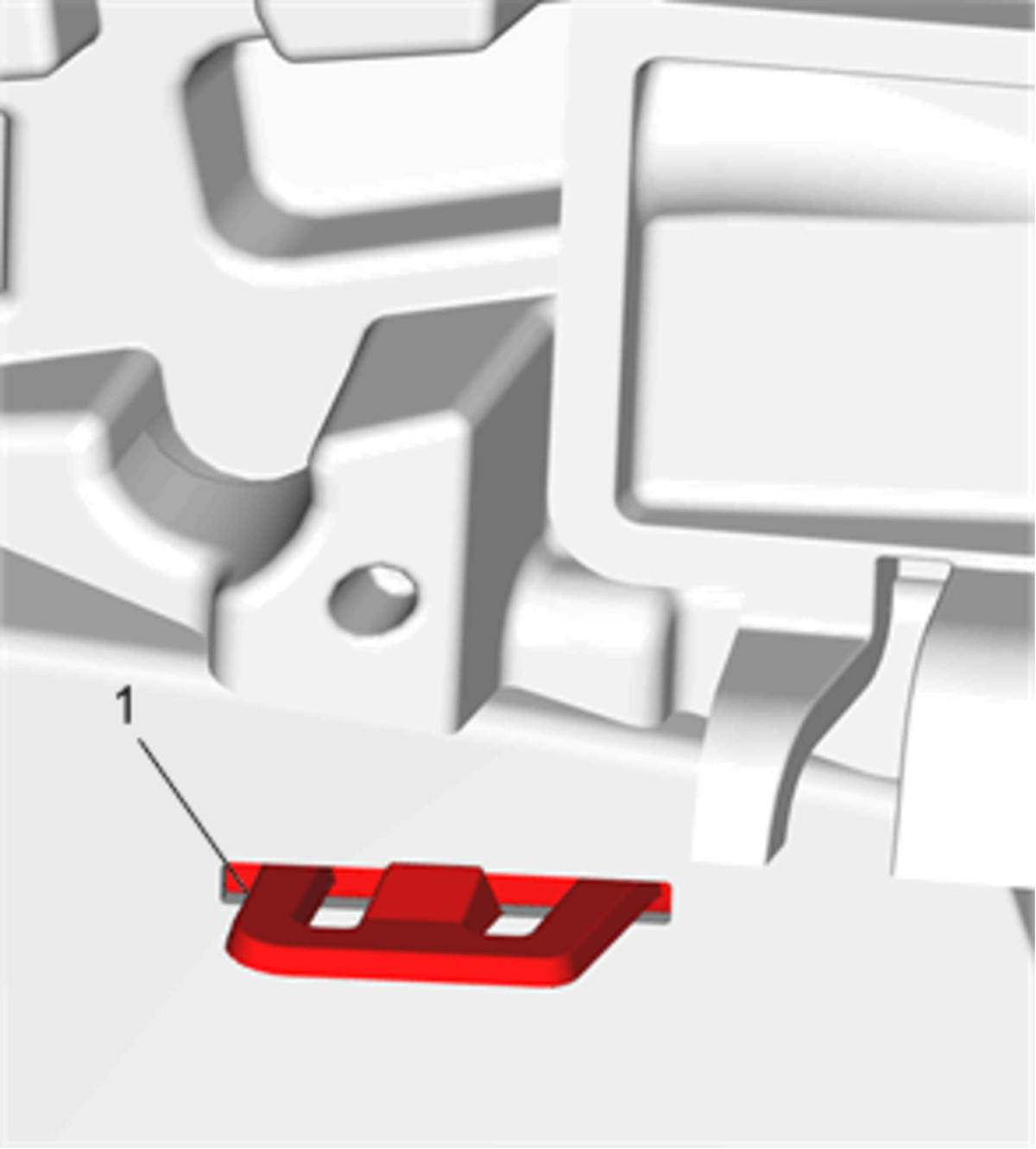

Fig 1: Retainers

Courtesy of GENERAL MOTORS COMPANY

Remove the two retainers (1).

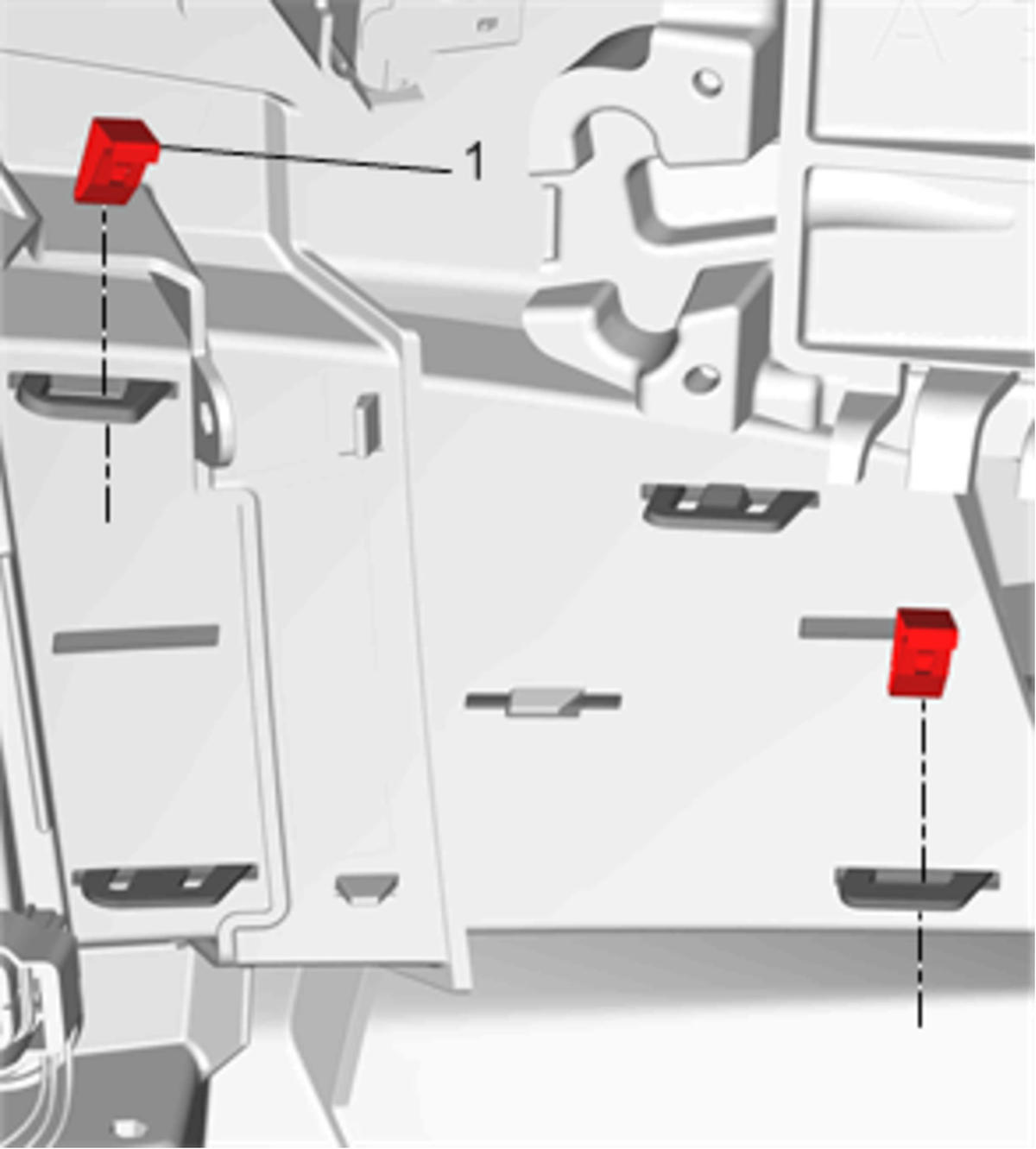

Fig 2: Foglamp Bezel And Lower Grille Alligator Clip

Courtesy of GENERAL MOTORS COMPANY

Remove the foglamp bezel and lower grille alligator clip (1).

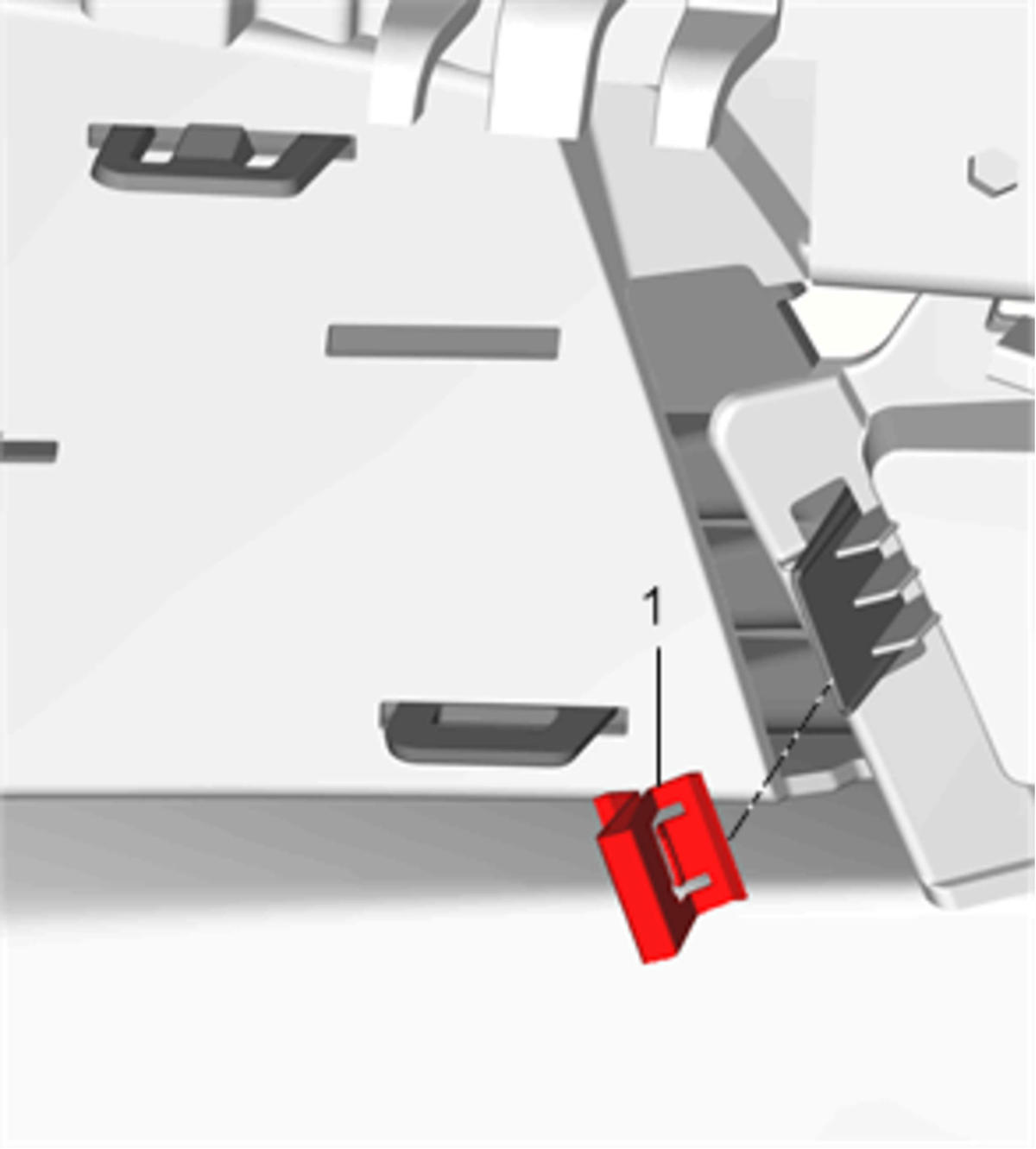

Fig 3: Retainer Tab

Courtesy of GENERAL MOTORS COMPANY

Release the upper right hand retainer tab and lower left hand retainer tab (1).

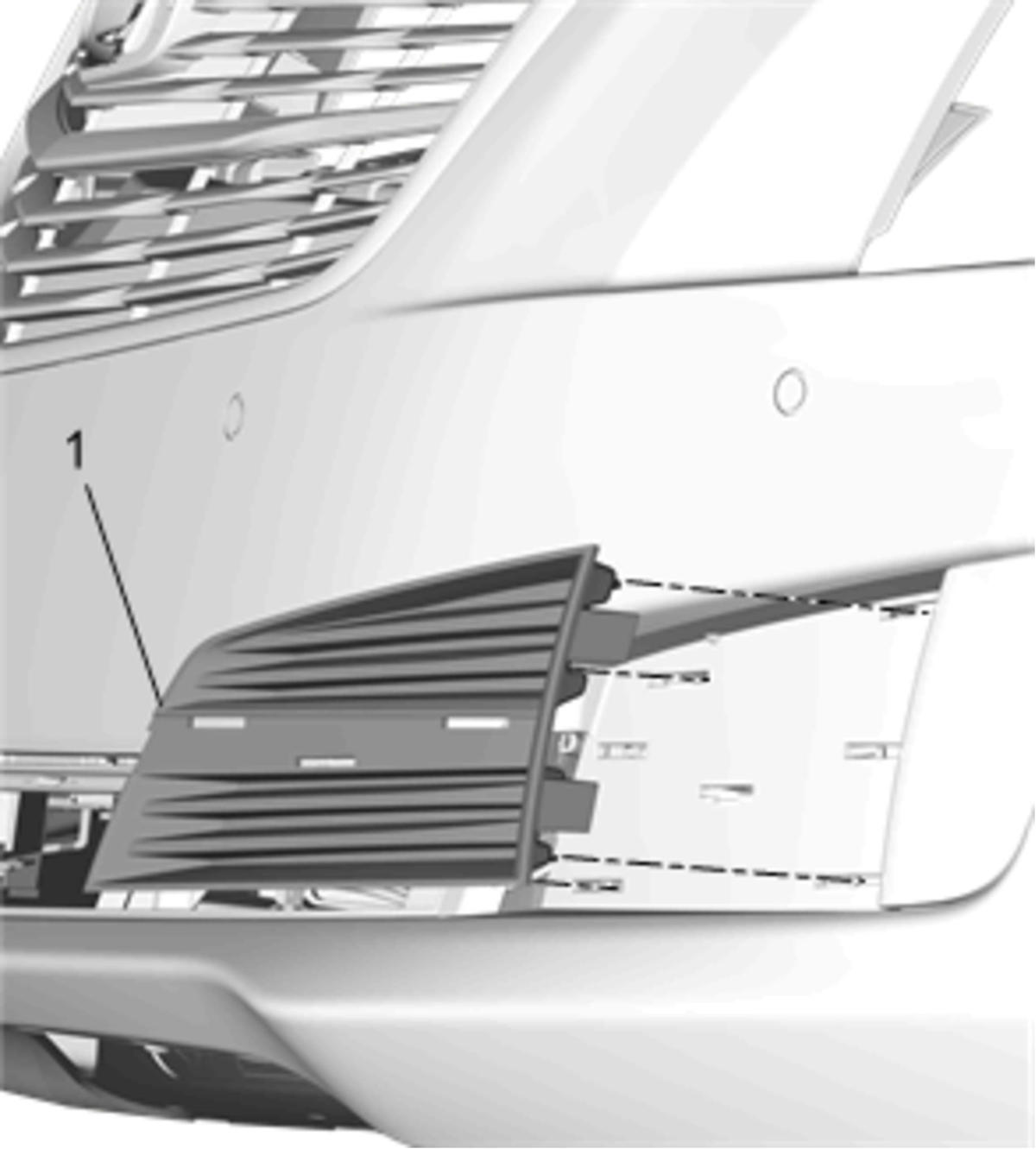

Fig 4: Fog Lamp Bezel

Courtesy of GENERAL MOTORS COMPANY

Remove the fog lamp bezel (1), take care not to damage the 2 alignment tabs.
