Front Bumper Fascia Lower Molding Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

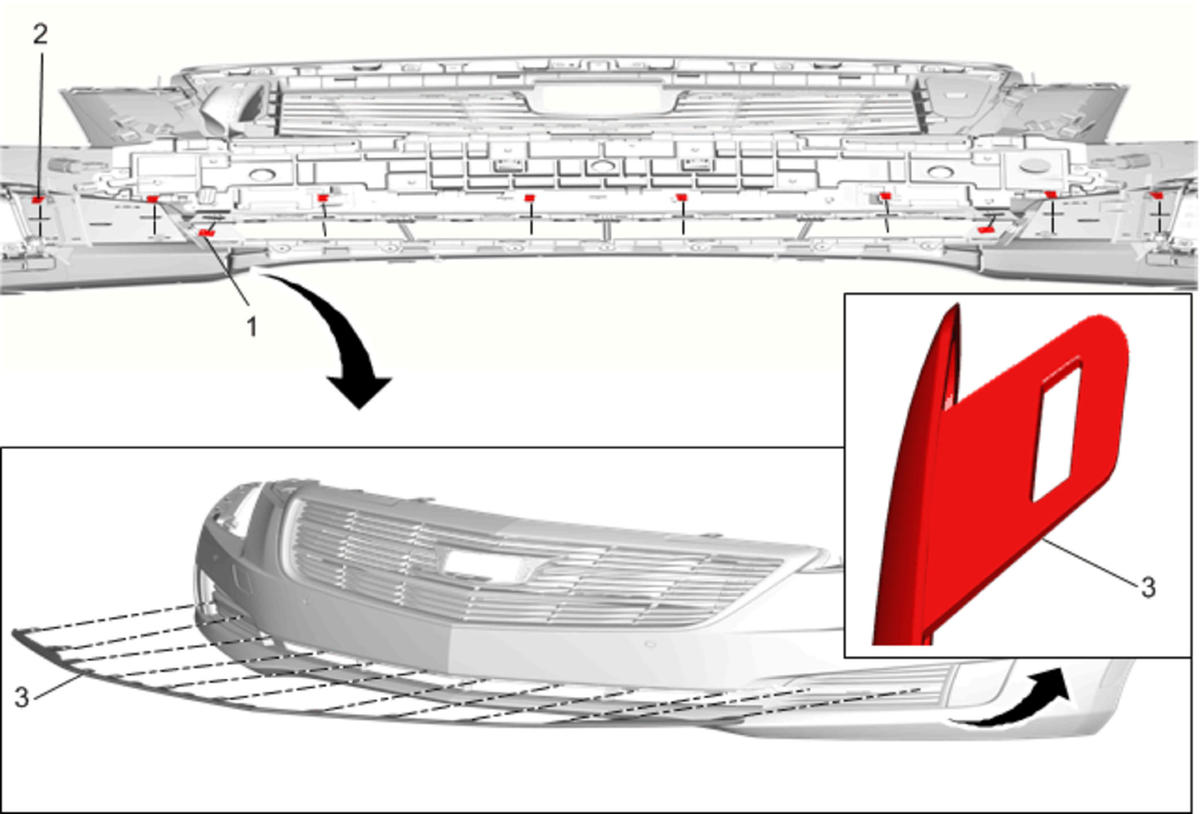

Fig 1: Front Bumper Fascia Lower Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) . Place the bumper fascia face down on a clean protected surface.
1	Front Bumper Fascia Lower Molding Alligator Clip (Qty 2) NOTE: Shared with the front bumper upper absorber.
2	Front Bumper Fascia Lower Molding Wedge Retainer (Qty: 8)
3	Front Bumper Fascia Lower Molding Procedure Release the 12 locking tabs from the front bumper fascia and lower grille and remove molding from the fascia.
