Outside Rearview Mirror Seal Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

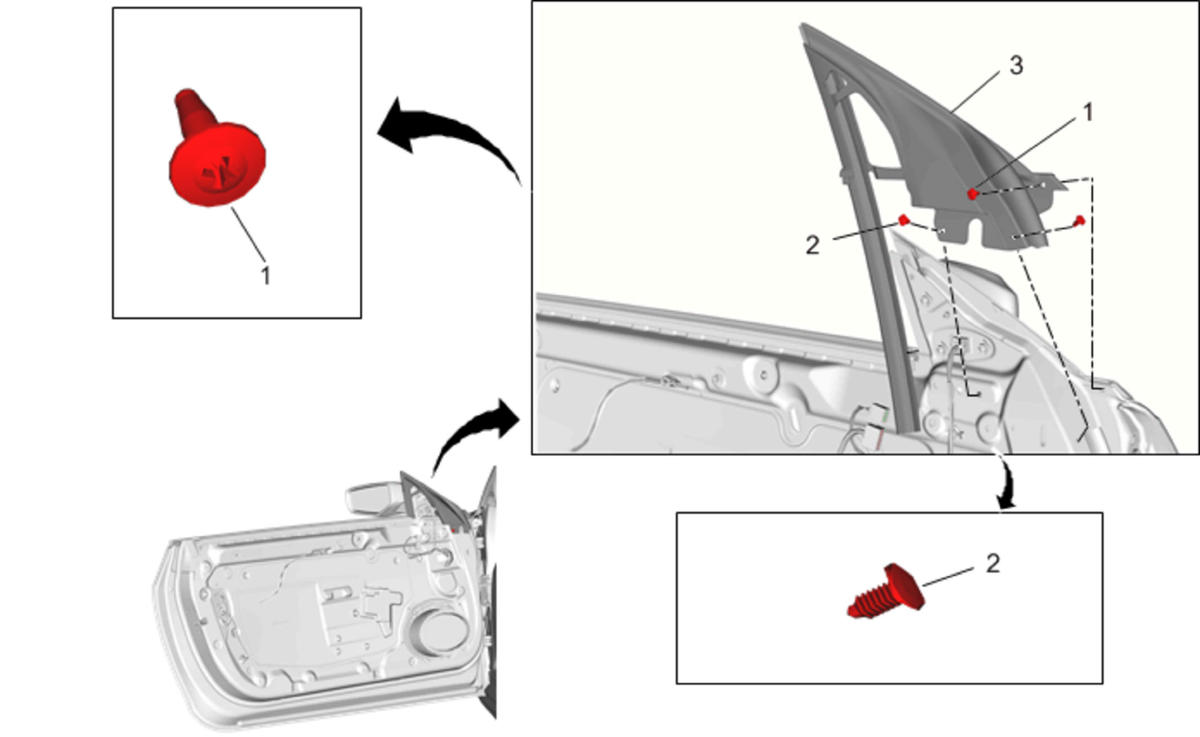

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door upper trim panel. Refer to Front Side Door Upper Trim Panel Replacement (Coupe) . |
|
| 1 | Front Side Door Window Belt Reveal Molding Screw
CAUTION:
Refer to Fastener Caution . Tighten 1.8 N.m (16 lb in) |
| 2 | Outside Rearview Mirror Seal Retainer (Qty: 2) Procedure Using the appropriate tool, remove the retainers from the front side door upper trim panel. |
| 3 | Outside Rearview Mirror Seal |
