Front Side Door Upper Trim Panel Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement (Coupe) . |
|

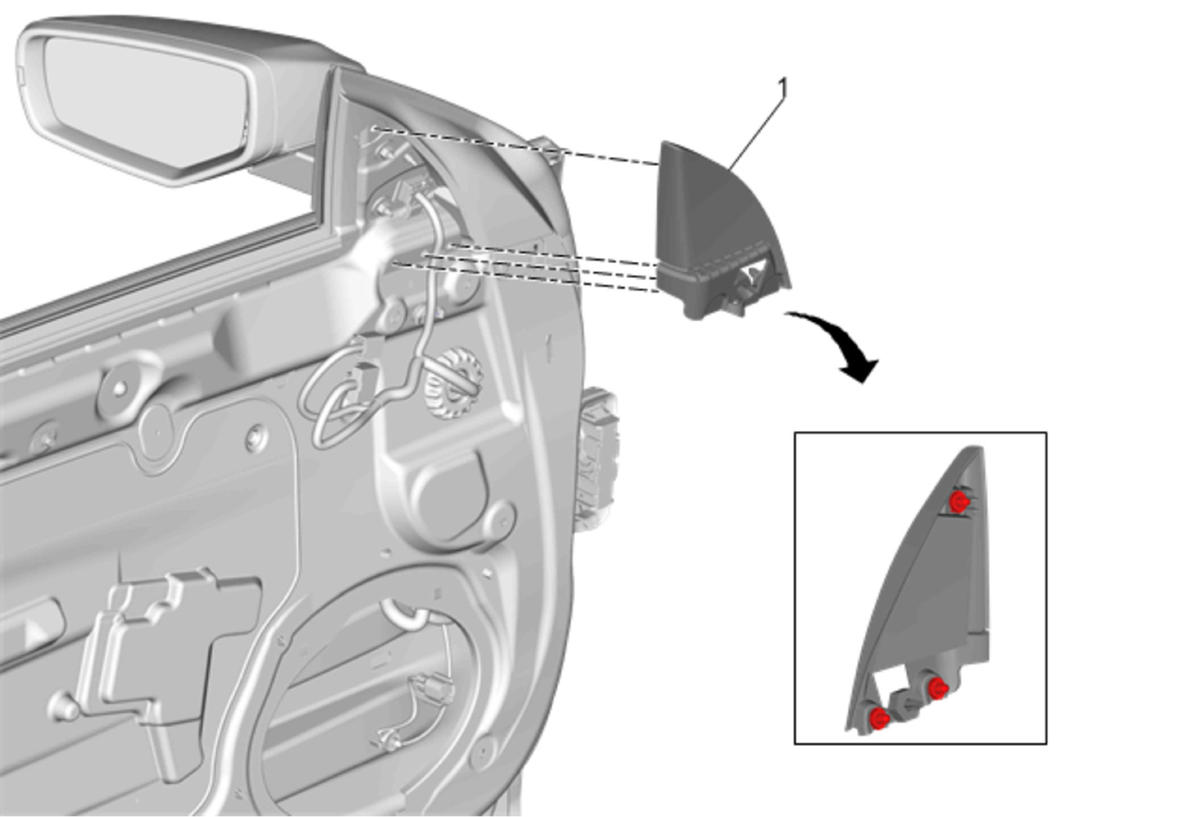

| 1 | Front Side Door Upper Trim Panel Assembly Procedure Use a flat-bladed plastic trim tool to disengage the front side door upper trim panel from the front side door inner panel. |
