Front Side Door Garnish Molding Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

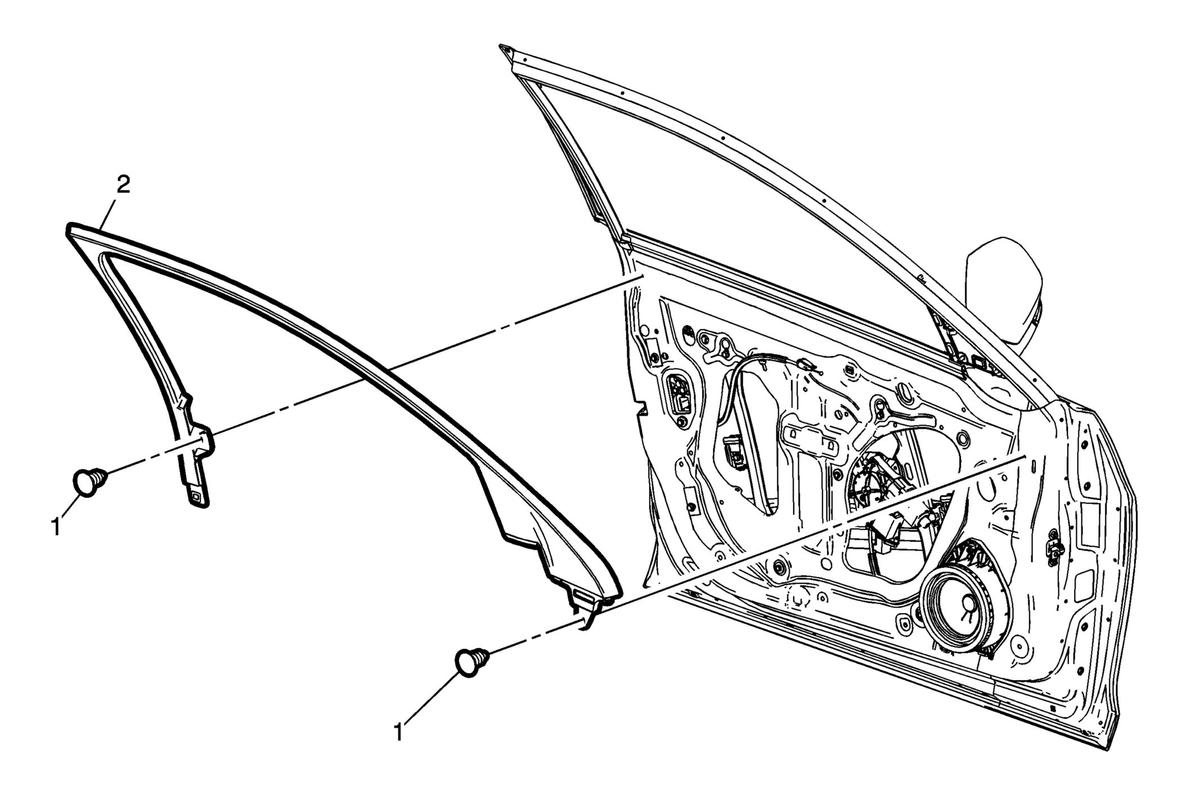

Fig 1: Front Side Door Garnish Molding Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement (Sedan) Front Side Door Trim Replacement (Coupe) .
1	Front Side Door Garnish Molding Retainer (Qty: 2)
2	Front Side Door Garnish Molding Assembly Procedure Use a plastic flat-bladed tool to remove the push-in retainers. Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement (Sedan) Front Side Door Trim Replacement (Coupe) .

Front Side Door Garnish Molding Retainer (Qty: 2)

Front Side Door Garnish Molding Assembly

Procedure

Use a plastic flat-bladed tool to remove the push-in retainers.
Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary.
