Outside Rearview Mirror Housing Upper Cover Replacement (DR5)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

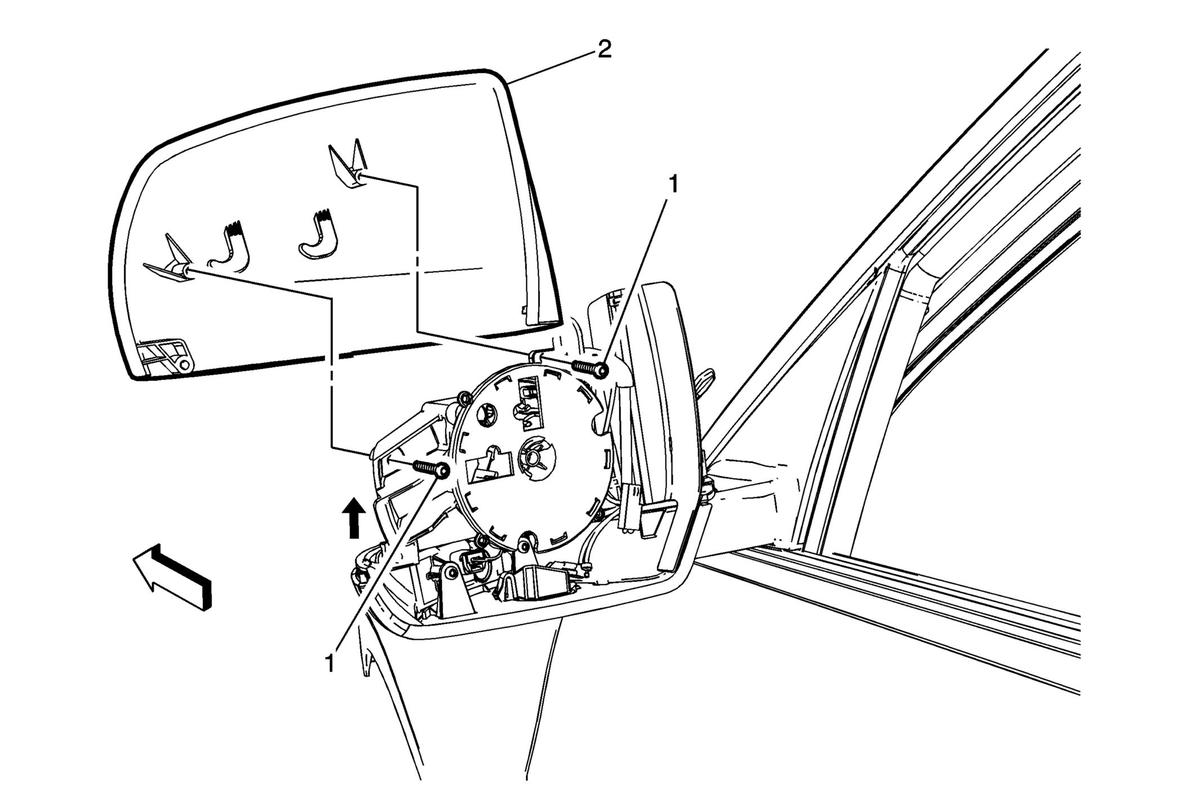

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the outside rearview mirror housing bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement . |
|
| 1 | Outside Rearview Mirror Upper Housing Cover Screws (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Outside Rearview Upper Mirror Housing Cover
NOTE:
Inspect the outside rearview mirror for proper operation. |
