Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the brake pedal several times until the pedal becomes firm to deplete the power vacuum brake booster vacuum reserve.
  2. Disconnect the power brake booster vacuum sensor electrical connector.
    3. Fig 1: Power Brake Booster Vacuum Sensor
    GM4066216Courtesy of GENERAL MOTORS COMPANY
  3. Remove Power Brake Booster Vacuum Sensor (1)
  4. Remove Front End Sheet Metal Diagonal Brace - Left Side. Refer to Front End Sheet Metal Diagonal Brace Replacement - Left Side »Remove

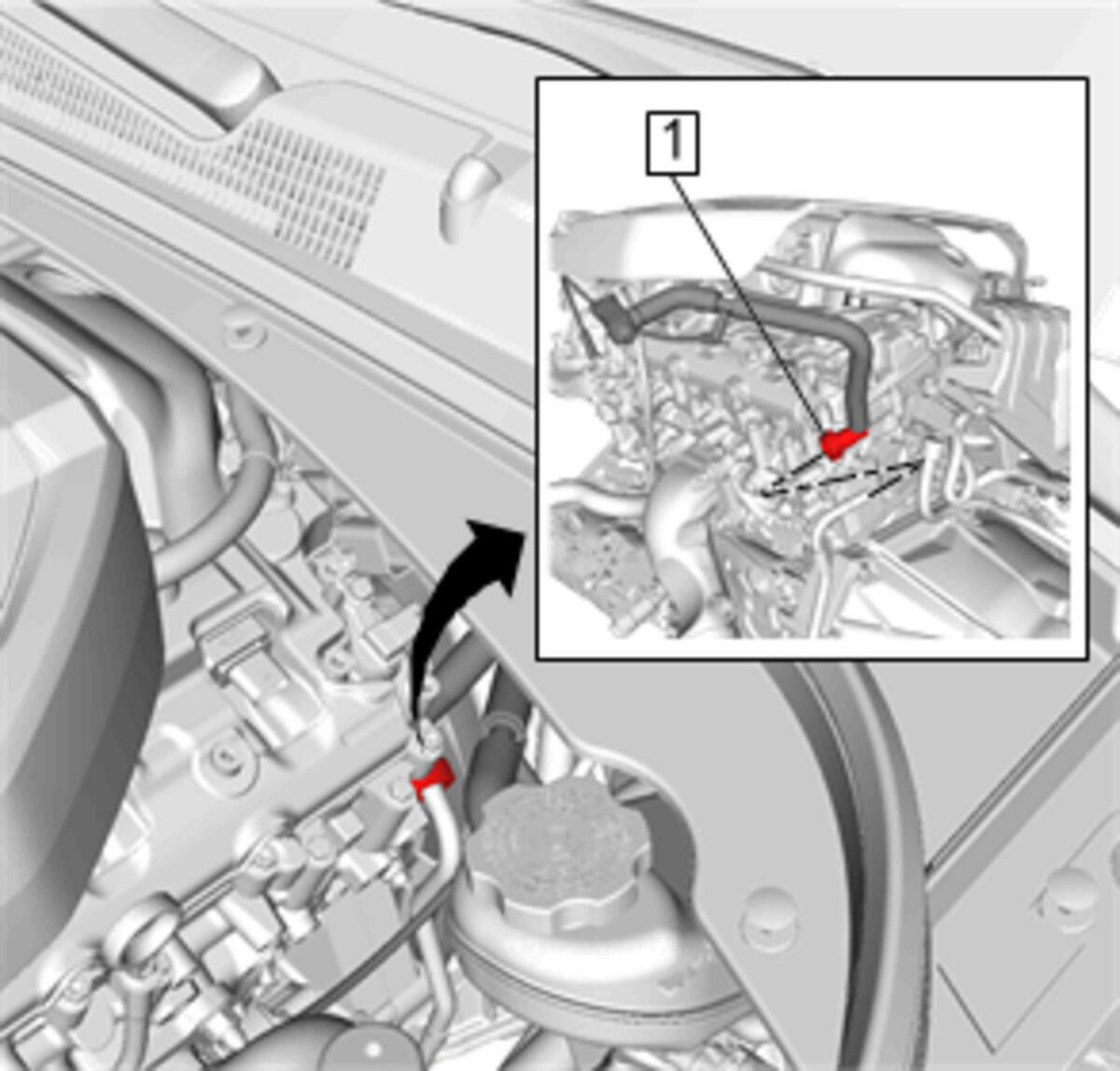

    5. Fig 2: Power Brake Booster Vacuum Hose Quick Connect
    GM4066222Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect Power Brake Booster Vacuum Hose Quick Connect (1) @ Vacuum Pipe

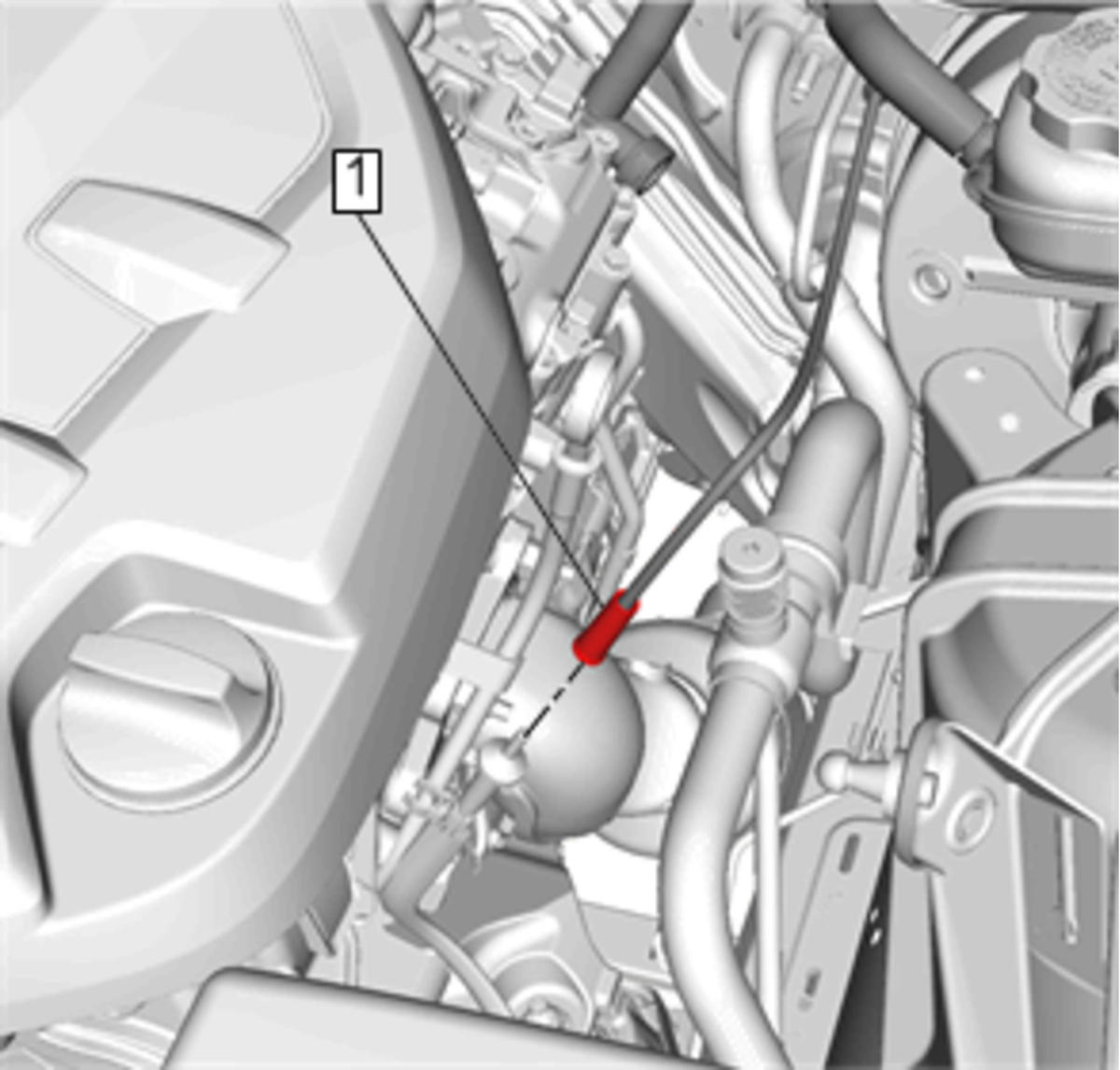

    6. Fig 3: Engine Mount Vacuum Hose
    GM4066225Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect Vacuum Hose (1) @ Engine Mount
  7. Remove Power Brake Booster Vacuum Hose Assembly
