Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Dust Warning .

  1. Turn the ignition OFF.
  2. Block the rear drive wheels.
  3. Disable the parking brake cable adjuster, if equipped. Parking Brake Cable Adjuster Disabling (With J77) Parking Brake Cable Adjuster Disabling (Without J77)
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
  5. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
    6. Fig 1: Parking Brake Shoe Lower Return Spring
    GM4428422Courtesy of GENERAL MOTORS COMPANY
  6. Remove the parking brake shoe lower return spring <p01>. Parking Brake Shoe Replacement
    7. Fig 2: Parking Brake Shoe Actuator Lever Spring
    GM2833255Courtesy of GENERAL MOTORS COMPANY
  7. Lift the parking brake actuator lever spring clip (1).
  8. Disconnect the park brake cable from the actuator.

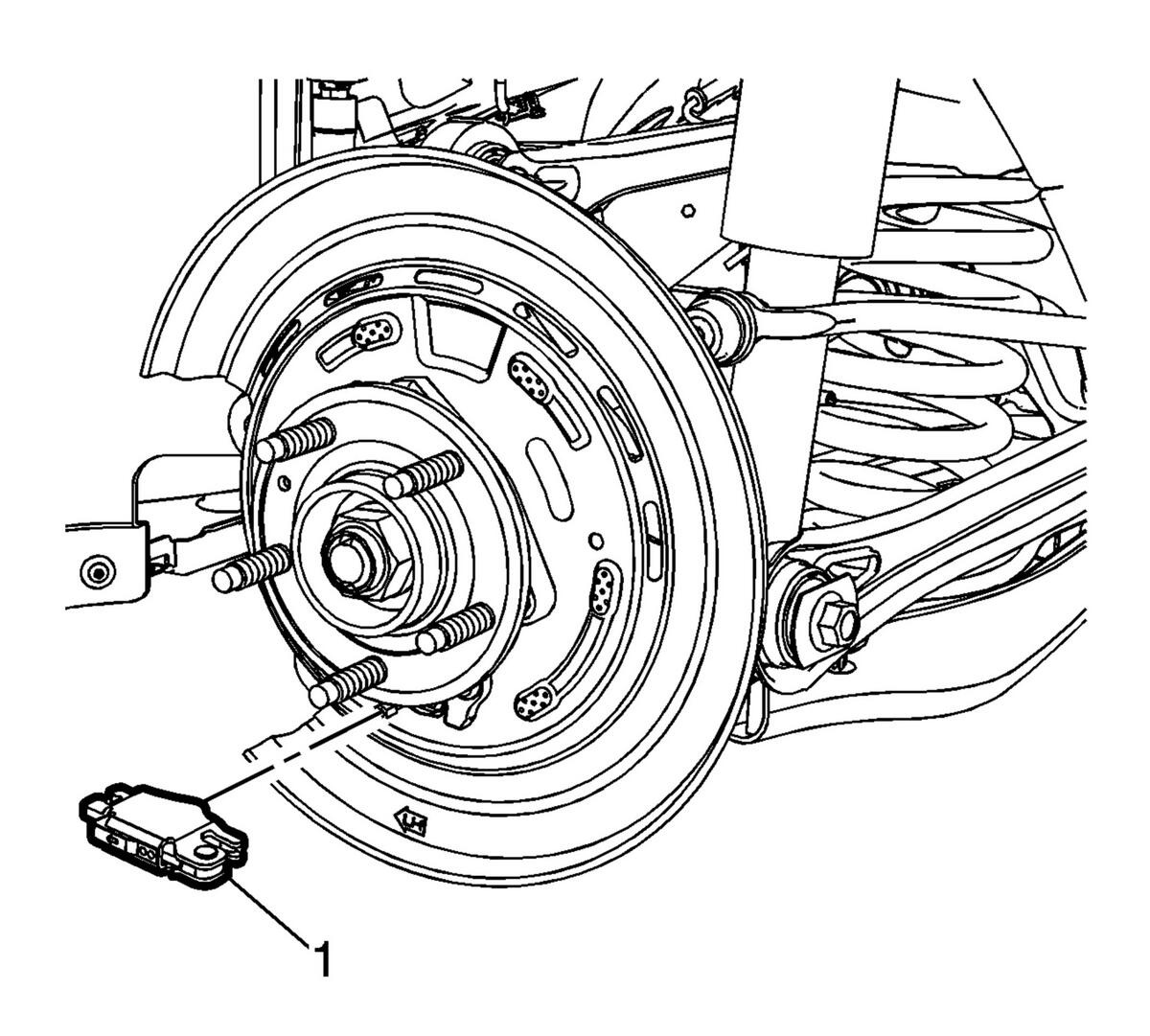

    9. Fig 3: Parking Brake Actuator Lever
    GM2833257Courtesy of GENERAL MOTORS COMPANY
  9. Remove the parking brake actuator lever (1).
