Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

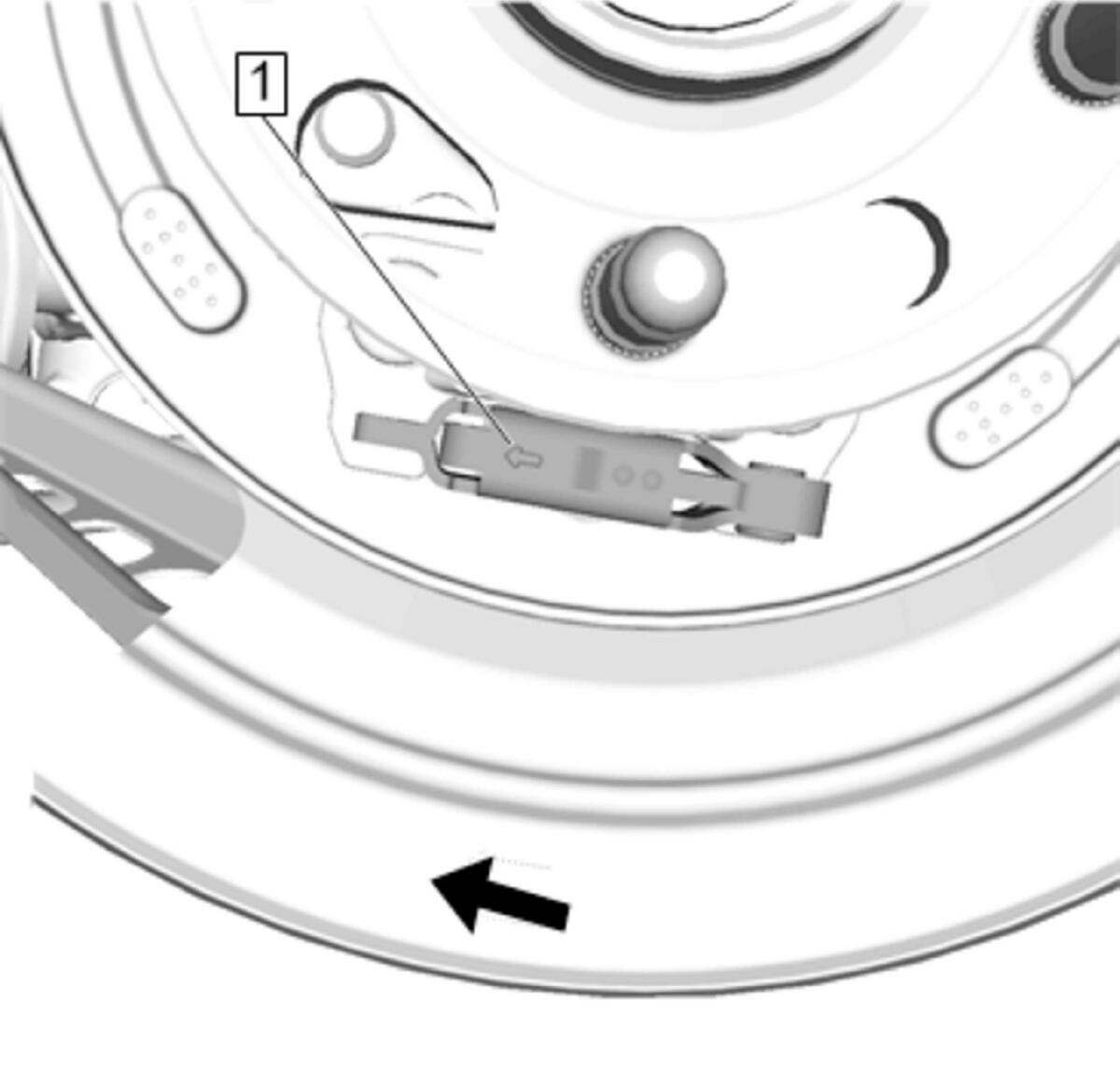

- Install the parking brake actuator lever, aligning the arrow (1) on the actuator lever with the arrow on the rear parking brake anchor backing plate.

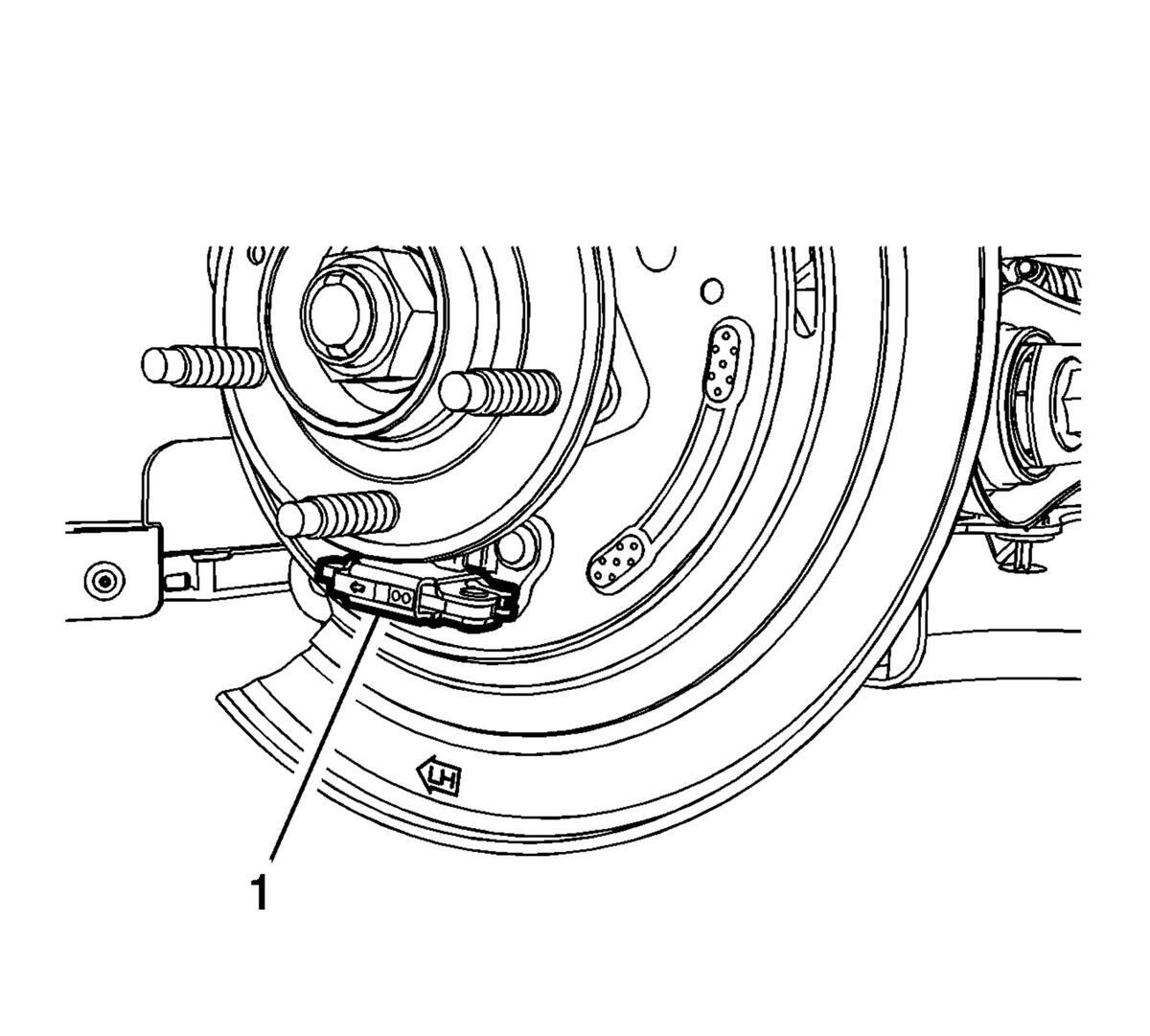

- Lift the parking brake actuator lever spring clip (1).
- Connect the park brake cable to the actuator.
- Install the parking brake shoe lower return spring. Parking Brake Shoe Replacement
- Adjust the parking brake. Parking Brake Adjustment
- Enable the parking brake cable adjuster, if equipped. Parking Brake Cable Adjuster Enabling (Without J77) Parking Brake Cable Adjuster Enabling (With J77)
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
