Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the rear parking brake cable to the vehicle.
- Insert the rear parking brake cable end into the rear brake backing plate.
- Grasp the rear parking brake cable and push the cable into the rear brake backing plate until the cable end seats in the parking brake shoe actuator lever.
- Ensure the parking brake cable end is fully seated in the parking brake shoe actuator lever by attempting to pull the cable from the rear brake backing plate.

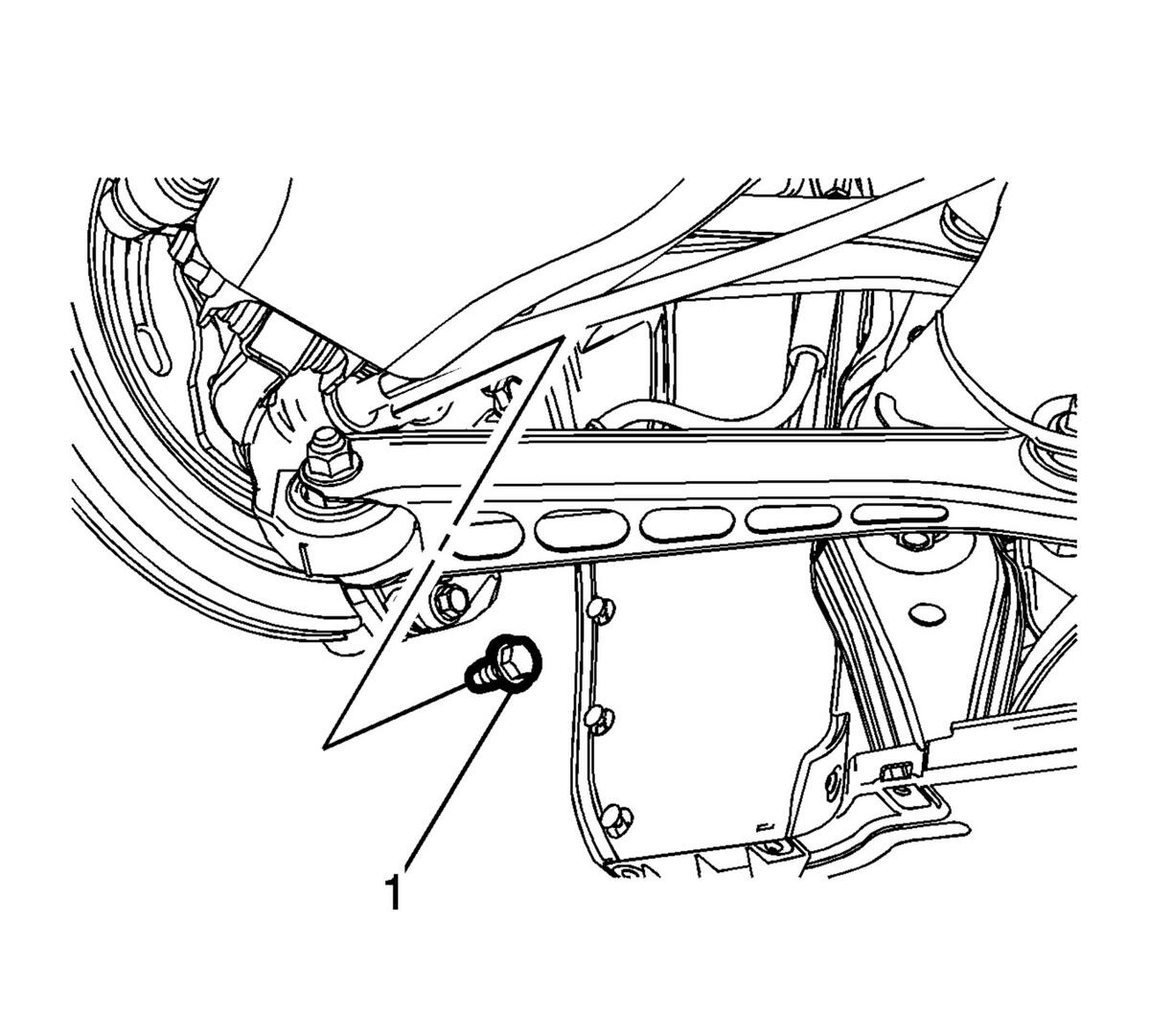

- Install the parking brake cable bolt (1) and tighten to 9 N.m (80 lb in).

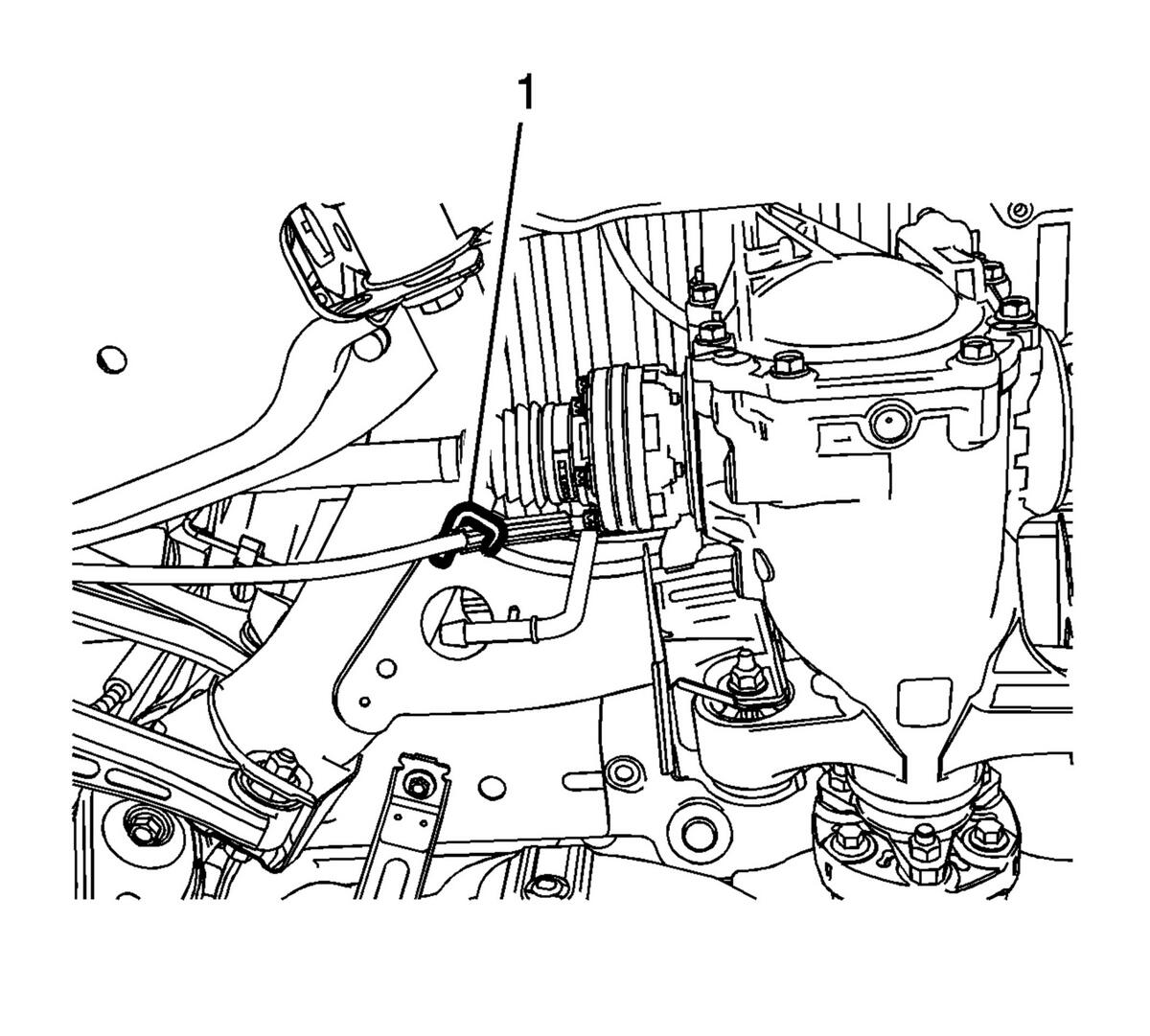

- Feed the rear parking brake cable through the bracket (1) on the rear frame.

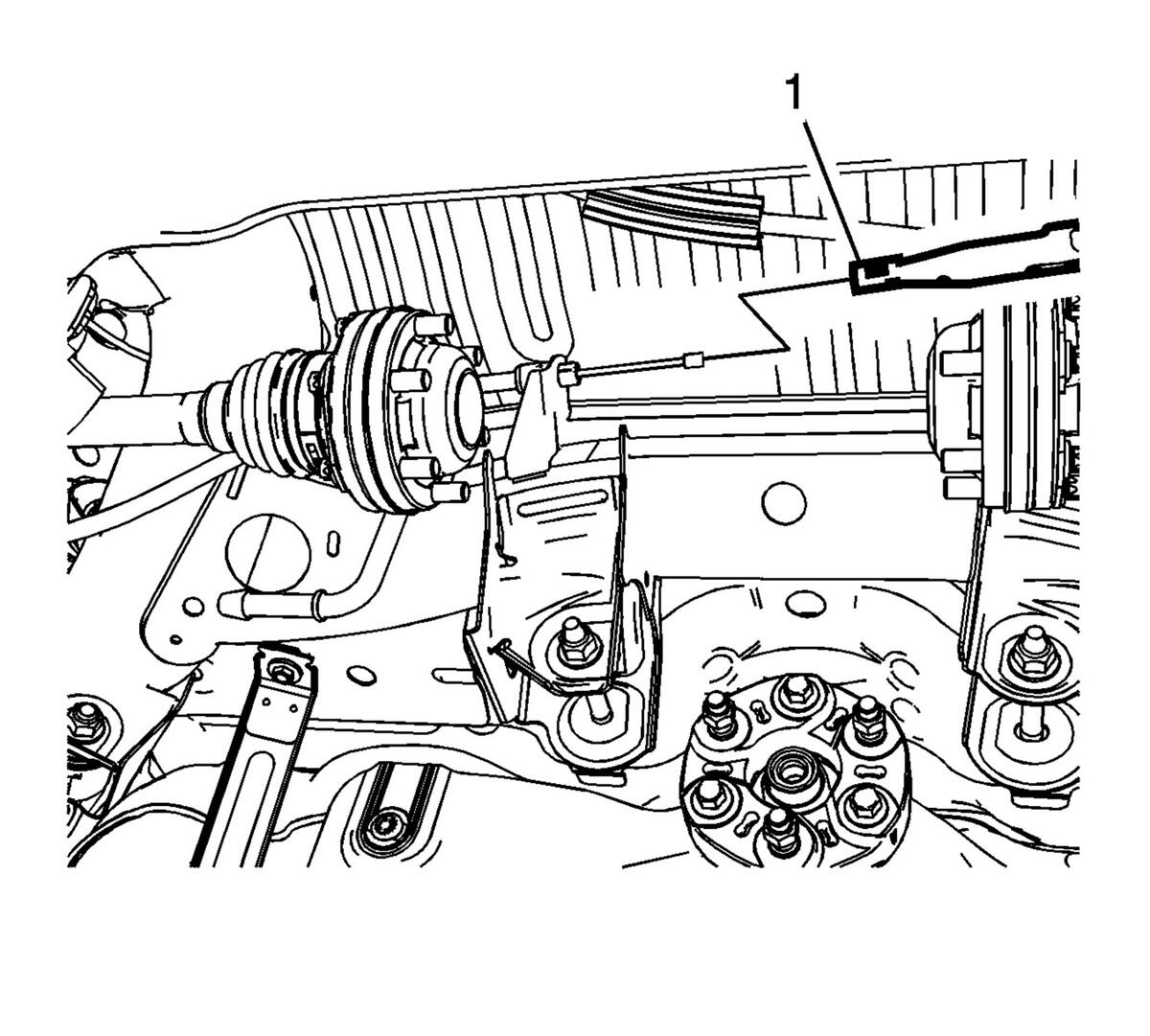

- Install the rear parking brake cable (1) to the bracket on the rear frame until there is an audible click.
- Ensure the rear parking brake cable locking tabs are fully engaged to the parking brake cable bracket on the rear frame.

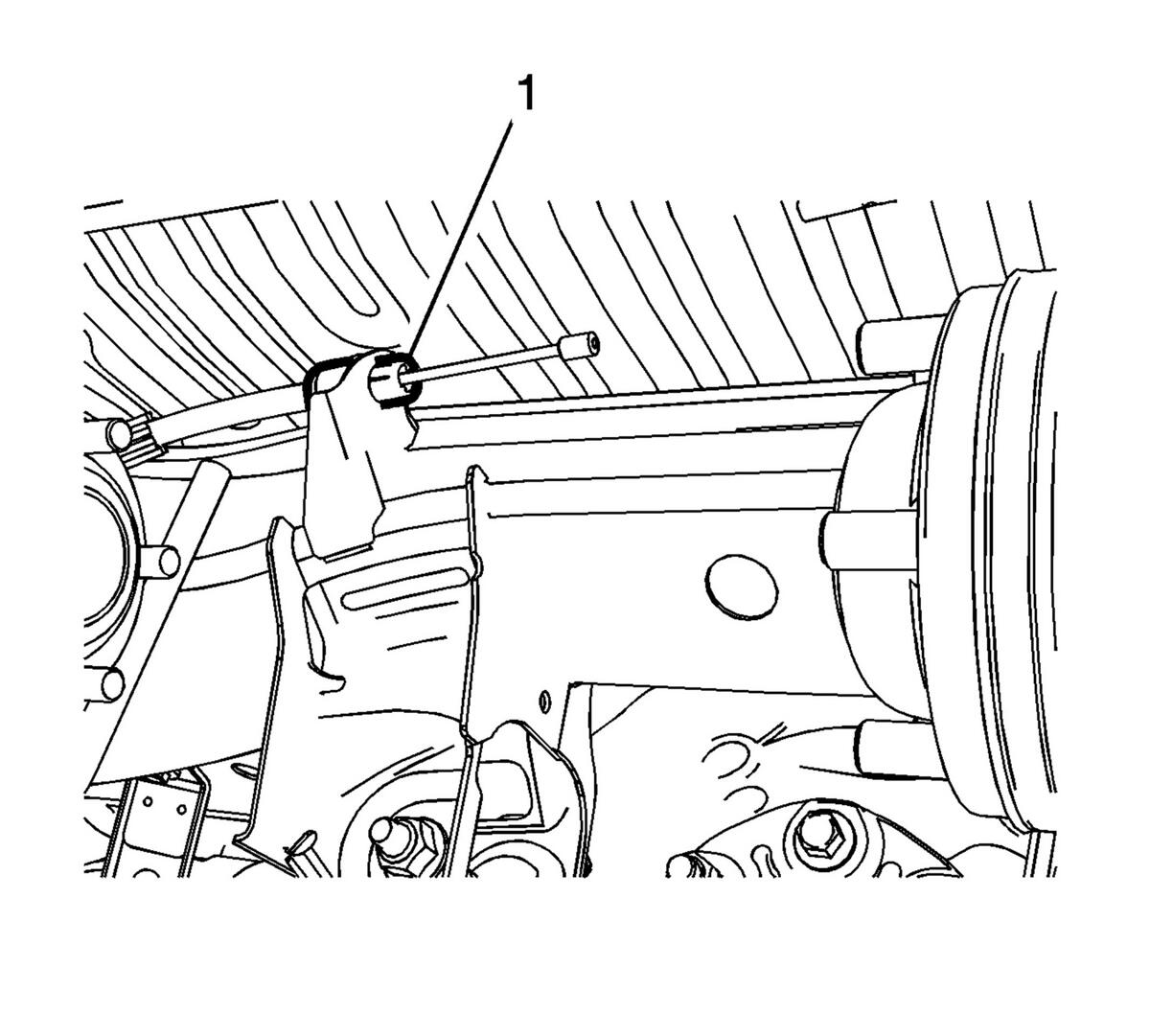

- Connect the parking brake rear cable (1) to the intermediate parking brake cable equalizer.
- Install the left rear brake rotor. Refer to Rear Brake Rotor Replacement (JE5, J55)Rear Brake Rotor Replacement (J6G) .
- Install the left rear tire and wheel assembly. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
- Enable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Enabling (Without J77) Parking Brake Cable Adjuster Enabling (With J77) .
CAUTION:
Refer to Fastener Caution .
