Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement .

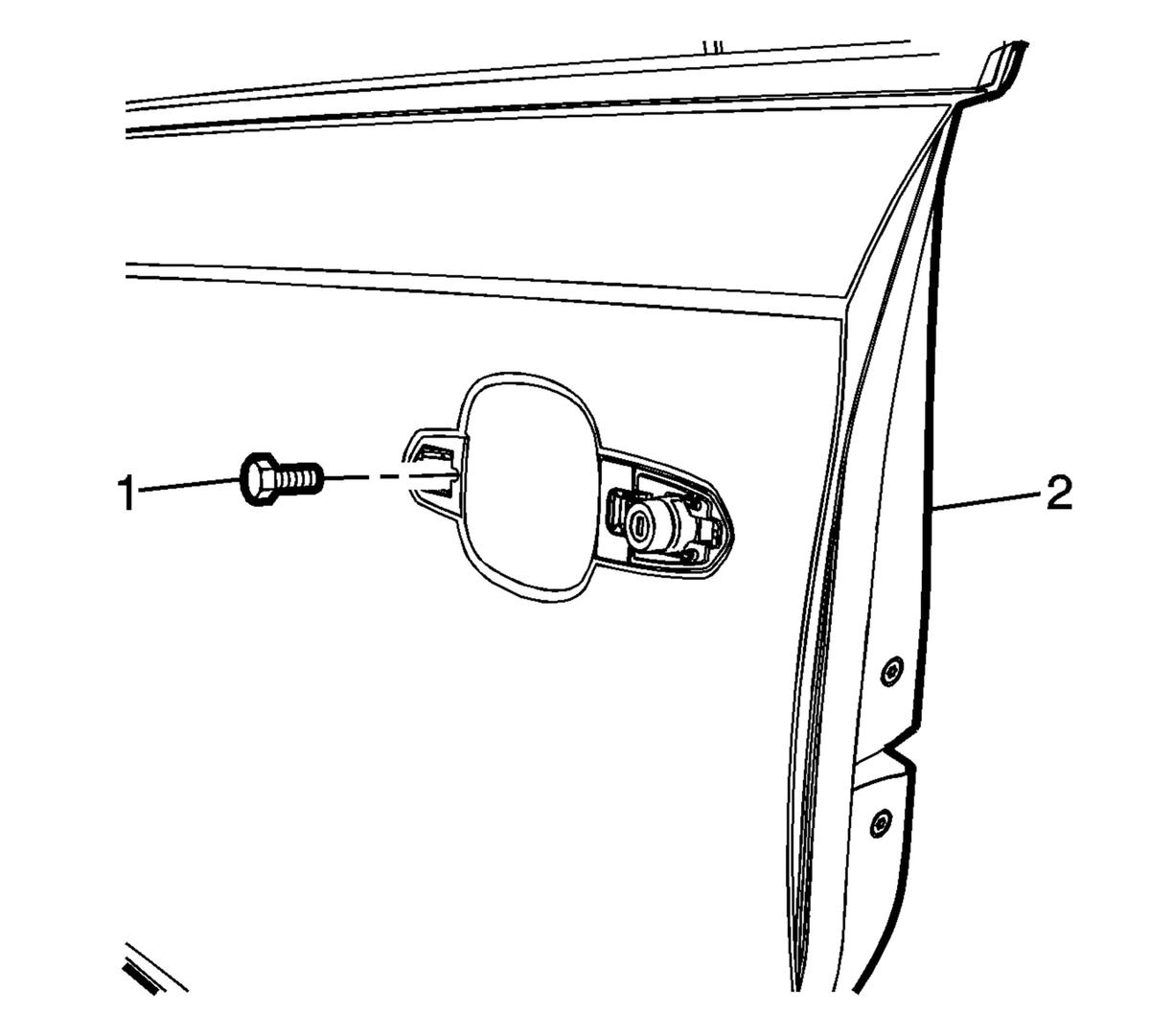

    2. Fig 1: Front Side Door Outside Bracket & Screws
    GM2755842Courtesy of GENERAL MOTORS COMPANY
  2. Remove the screw (1) that retains the rear side door outside bracket to the door (2).

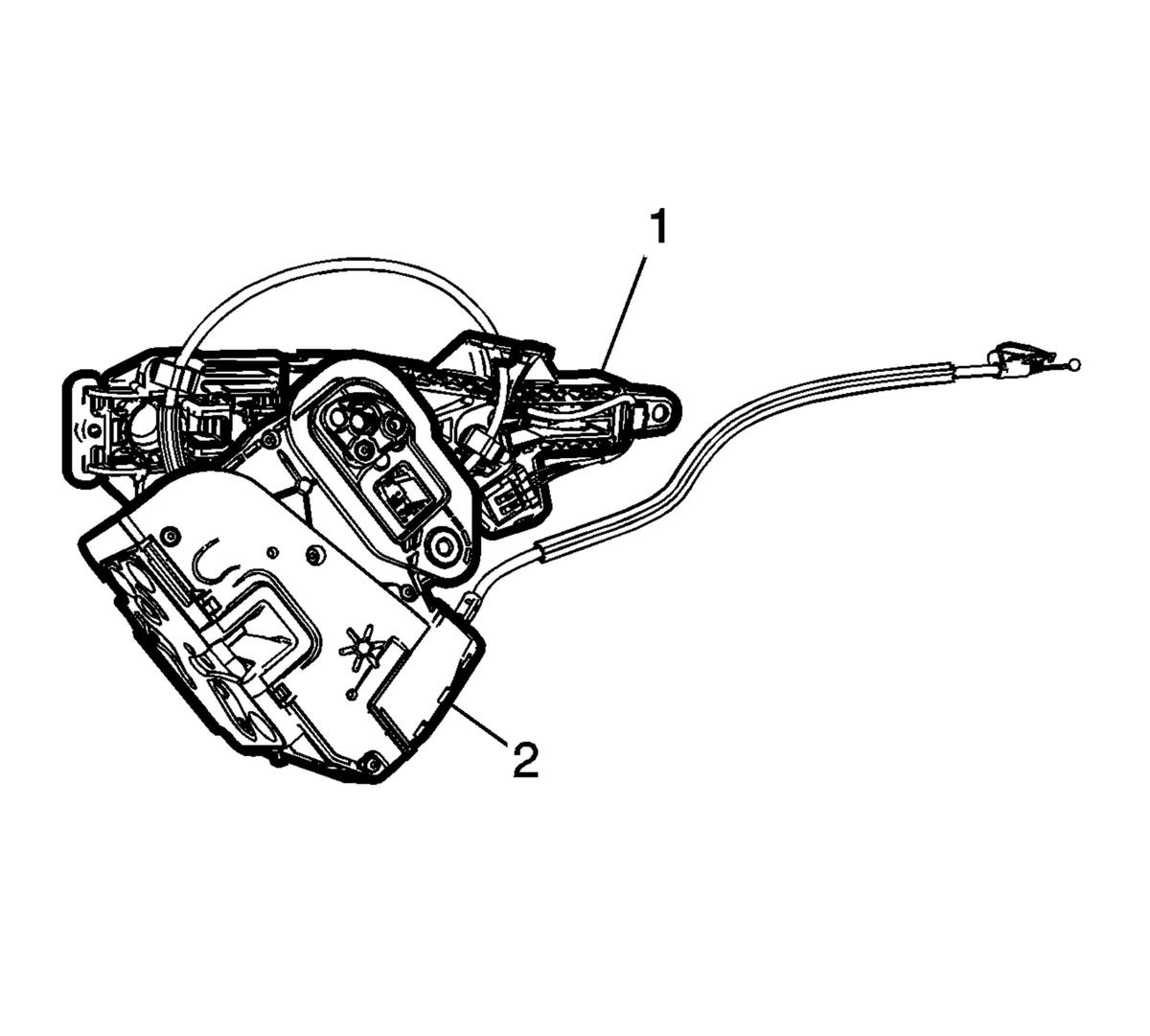

    3. Fig 2: Door Outside Handle Bracket & Latch
    GM2725373Courtesy of GENERAL MOTORS COMPANY
  3. Remove the outside handle bracket (1) and the rear side door latch (2) assembly from the vehicle as one. Refer to Rear Side Door Latch Replacement .

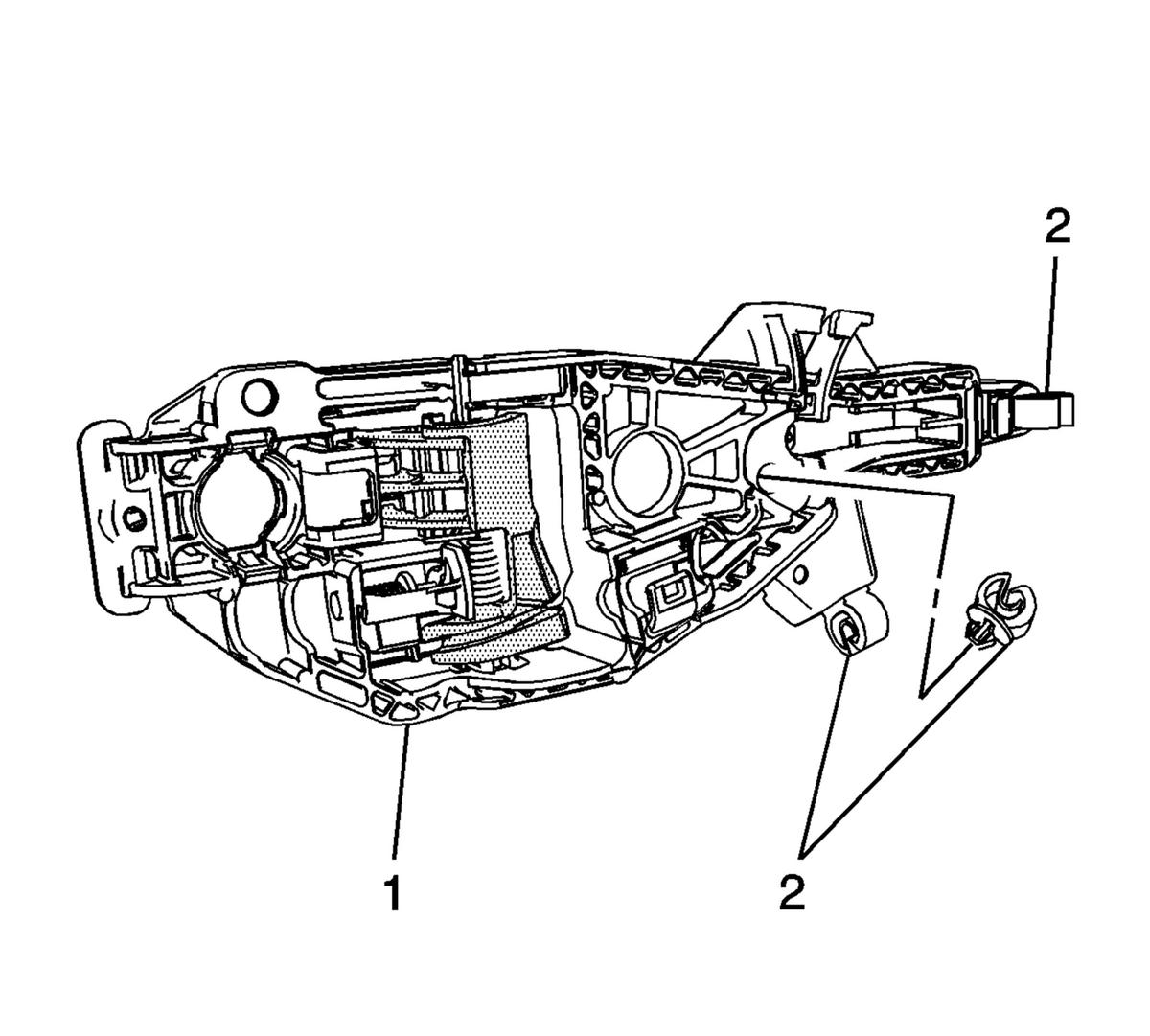

    4. Fig 3: Door Outside Handle Bracket & Cable Retainers
    GM2755846Courtesy of GENERAL MOTORS COMPANY
  4. Remove the rear side door outside handle cable from the bracket (1) retainers (2).
  5. Remove the rear side door outside handle cable. Refer to Rear Side Door Outside Handle Cable Replacement .
  6. Remove the lock cylinder blank from the bracket.
