Rear Side Door Inside Handle Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

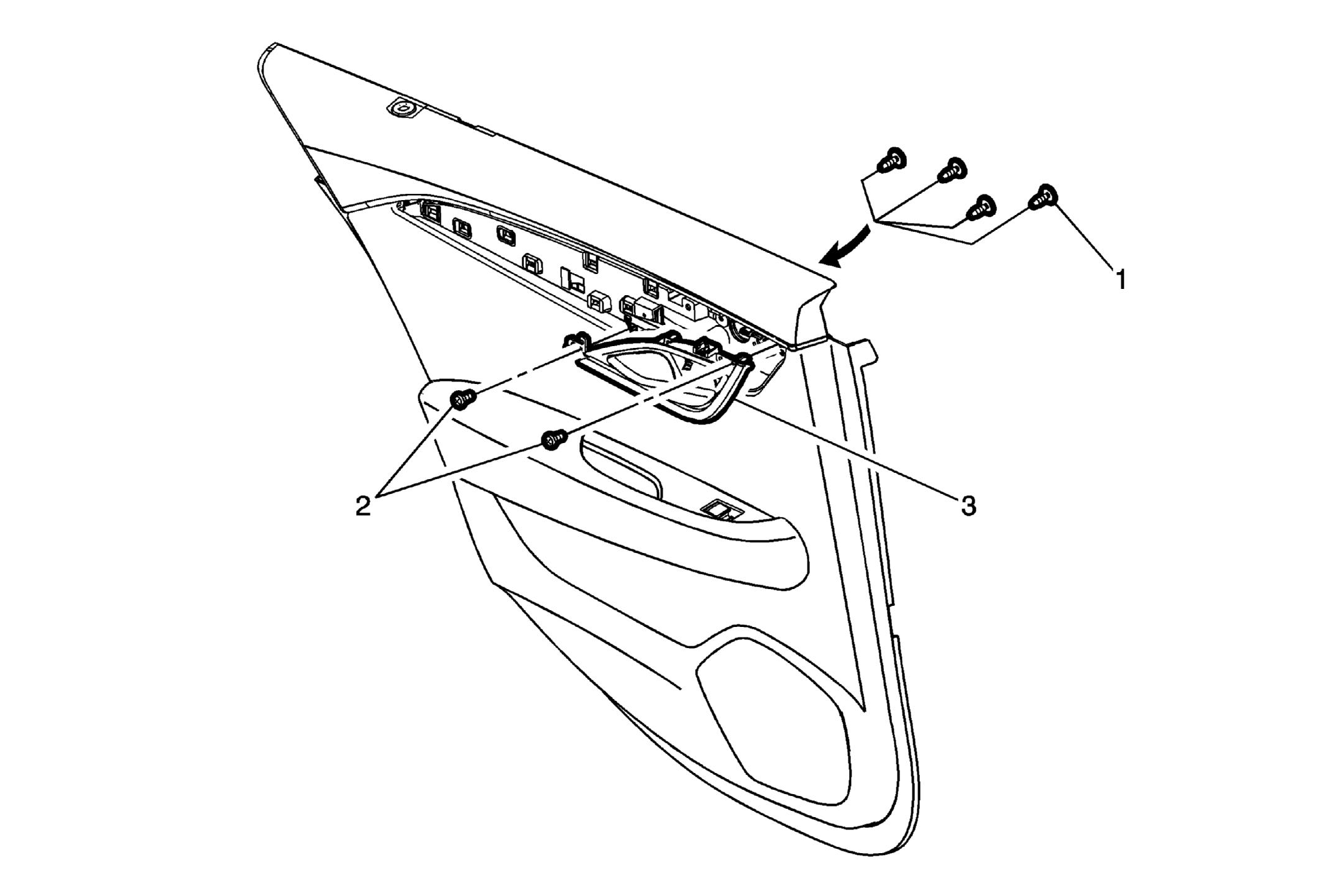

Fig 1: Rear Side Door Inside Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the rear side door trim panel applique. Refer to Rear Side Door Trim Panel Applique Replacement .
1	Rear Side Door Inside Handle Rear Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . NOTE: The four screws are located on the backside of the trim panel.
2	Rear Side Door Inside Handle Bezel Fastener (Qty: 2)
3	Rear Side Door Inside Handle Assembly Procedure Disconnect the rear side door inside handle illumination lamp connector and harness retainer. Release the handle trim from the metal retaining clip from the backside of the trim panel. Remove the handle and bezel as an assembly from the door trim panel. Transfer the handle illumination lamp and the bezel to the new handle.
