Rear Side Door Trim Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

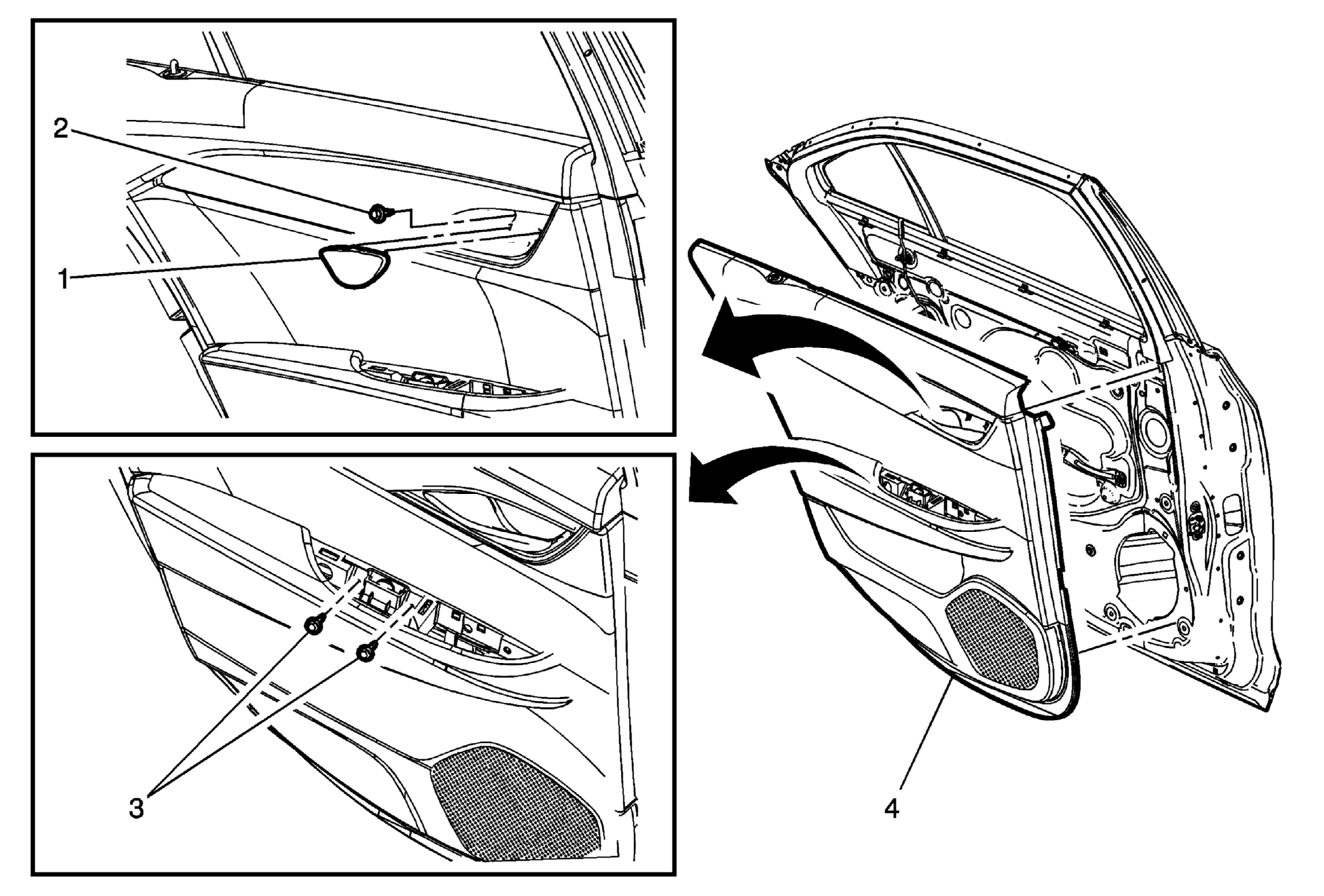

Fig 1: Rear Side Door Trim Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door armrest switch mount plate. Refer to Rear Side Door Armrest Switch Mount Plate Replacement .
1	Rear Side Door Inside Handle Bolt Cap NOTE: Use a suitable tool, place the tool between the notch located at the top of the door handle cap and the door handle. Turn the suitable tool clockwise releasing the door handle cap, exposing the handle fastener.
2	Rear Side Door Inside Handle Fastener CAUTION: Refer to Fastener Caution .
3	Rear Side Door Armrest Pull Cup Fastener (Qty: 2)
4	Rear Side Door Trim Assembly Procedure Using the appropriate plastic trim tool loosen the retainers along the bottom of the door trim panel. Remove the door trim panel along with the rear side door window inner sealing strip and metal retainer clips by pulling in an upwards direction. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector. Place the door trim panel on a clean flat surface. Remove the rear side door window inner sealing strip and metal retainer clips from door trim panel. Refer to Rear Side Door Window Inner Sealing Strip Replacement . When installing the door trim panel, reinstall metal clips and rear side door window inner sealing strip prior to installing door trim panel.
