Rear Compartment Lid Latch Release Cable Handle Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

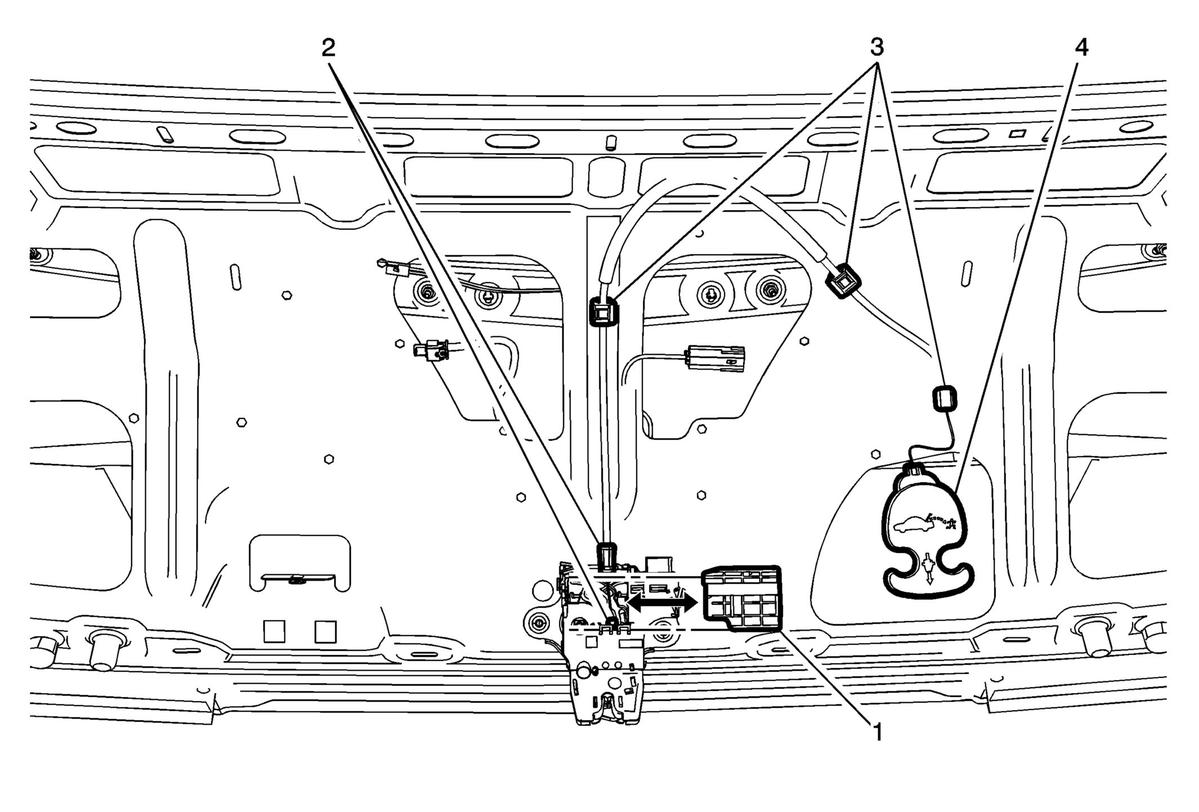

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Inner Panel Trim Replacement . |
|
| 1 | Rear Compartment Lid Latch Release Cable Handle Access Cover Procedure Depress the retainers and slide the access cover to the right to access the cable end. |
| 2 | Rear Compartment Lid Latch Release Cable Handle Procedure Disconnect the rear compartment lid inside latch handle cable from the rear compartment lid latch. |
| 3 | Rear Compartment Lid Latch Release Cable Handle Retainer (Qty: 3) |
| 4 | Rear Compartment Lid Latch Release Cable Handle |
