Auxiliary Rear Compartment Latch Release Handle Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

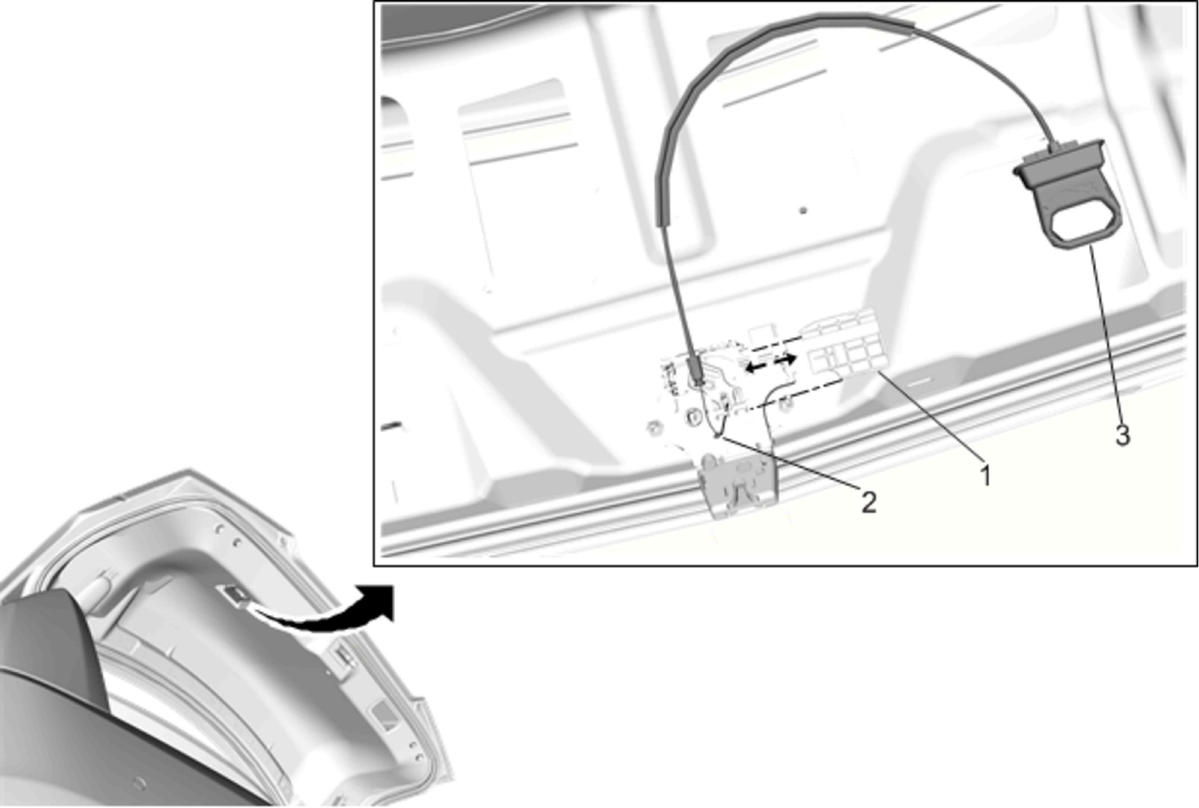

Fig 1: Auxiliary Rear Compartment Latch Release Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Auxiliary Rear Compartment Latch Release Handle Access Cover Procedure Depress the retainers and slide the access cover to the right to access the cable end.
2	Auxiliary Rear Compartment Latch Release Handle Retainer Procedure Turn the auxiliary rear compartment latch release handle retainer 180 degrees and pull out of the rear compartment lid latch.
3	Auxiliary Rear Compartment Latch Release Handle Procedure Using the appropriate tool, remove the auxiliary rear compartment latch release handle from the rear compartment lid inner panel trim.
