Temperature Valve Actuator Replacement - Right Side

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

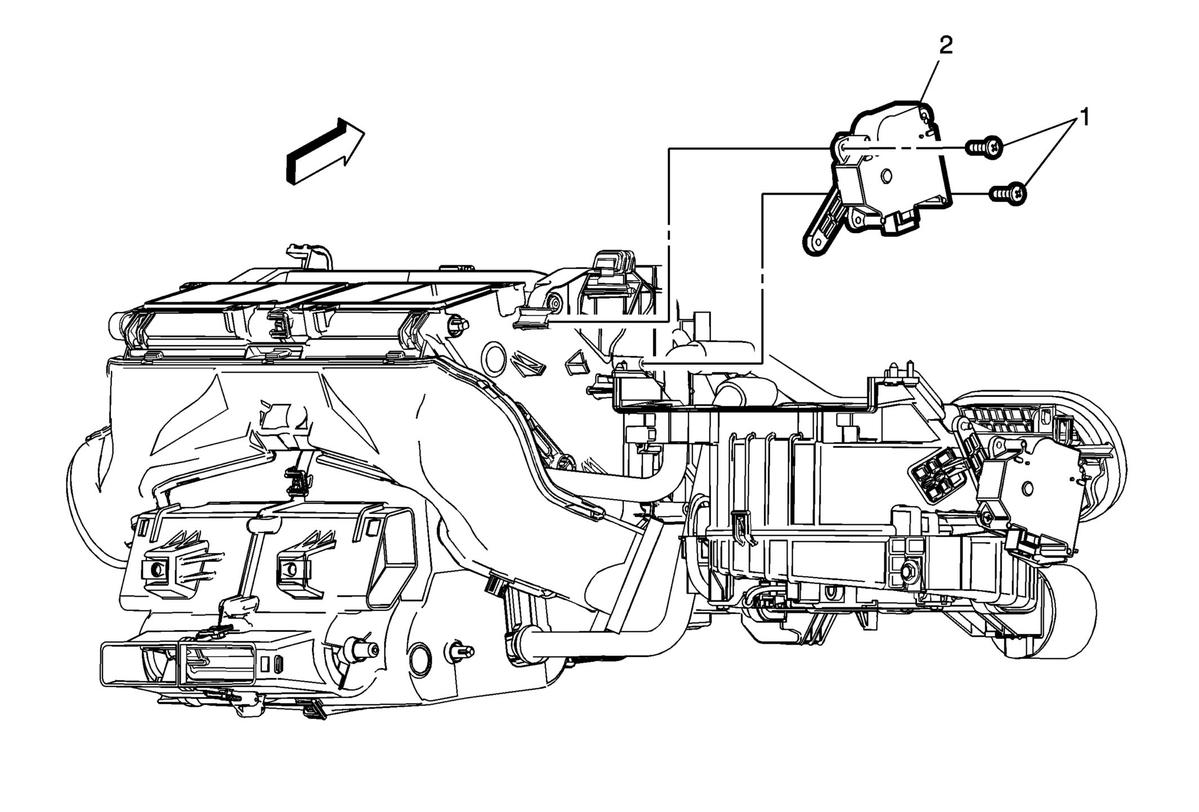

Fig 1: Temperature Valve Actuator - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fresh air inlet housing assembly. Refer to Air Inlet Housing Replacement .
1	Right Side Temperature Valve Actuator Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Temperature Valve Actuator - Right Side Procedures Disconnect the right side temperature valve actuator connector. Perform the actuator calibration procedure. Refer to Actuator Recalibration .

Callout

Component Name

Preliminary Procedure
Remove the fresh air inlet housing assembly. Refer to Air Inlet Housing Replacement .

Right Side Temperature Valve Actuator Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Temperature Valve Actuator - Right Side

Procedures

Disconnect the right side temperature valve actuator connector.
Perform the actuator calibration procedure. Refer to Actuator Recalibration .
