Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

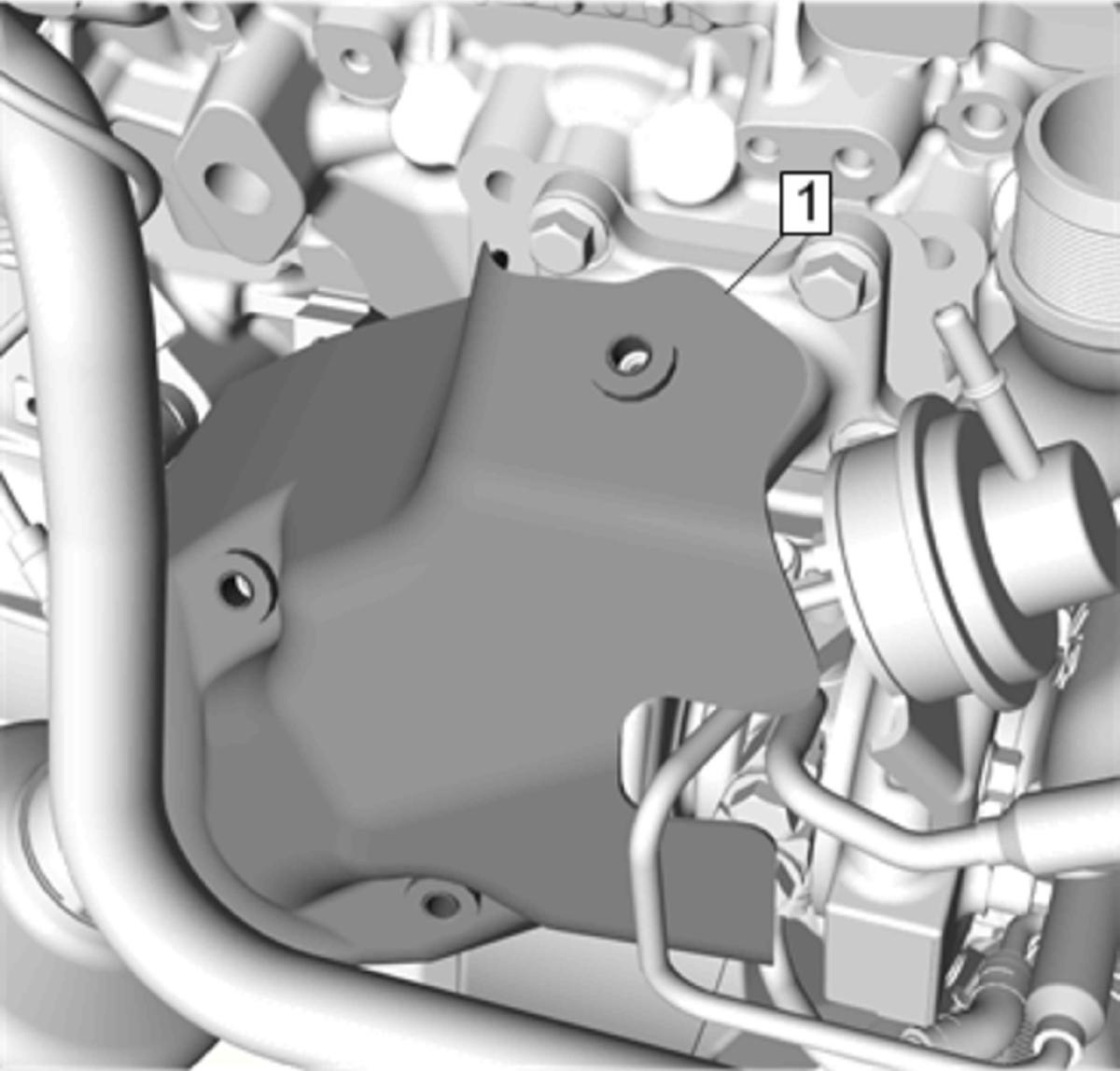

Fig 1: Turbocharger Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Install Turbocharger Heat Shield (1)

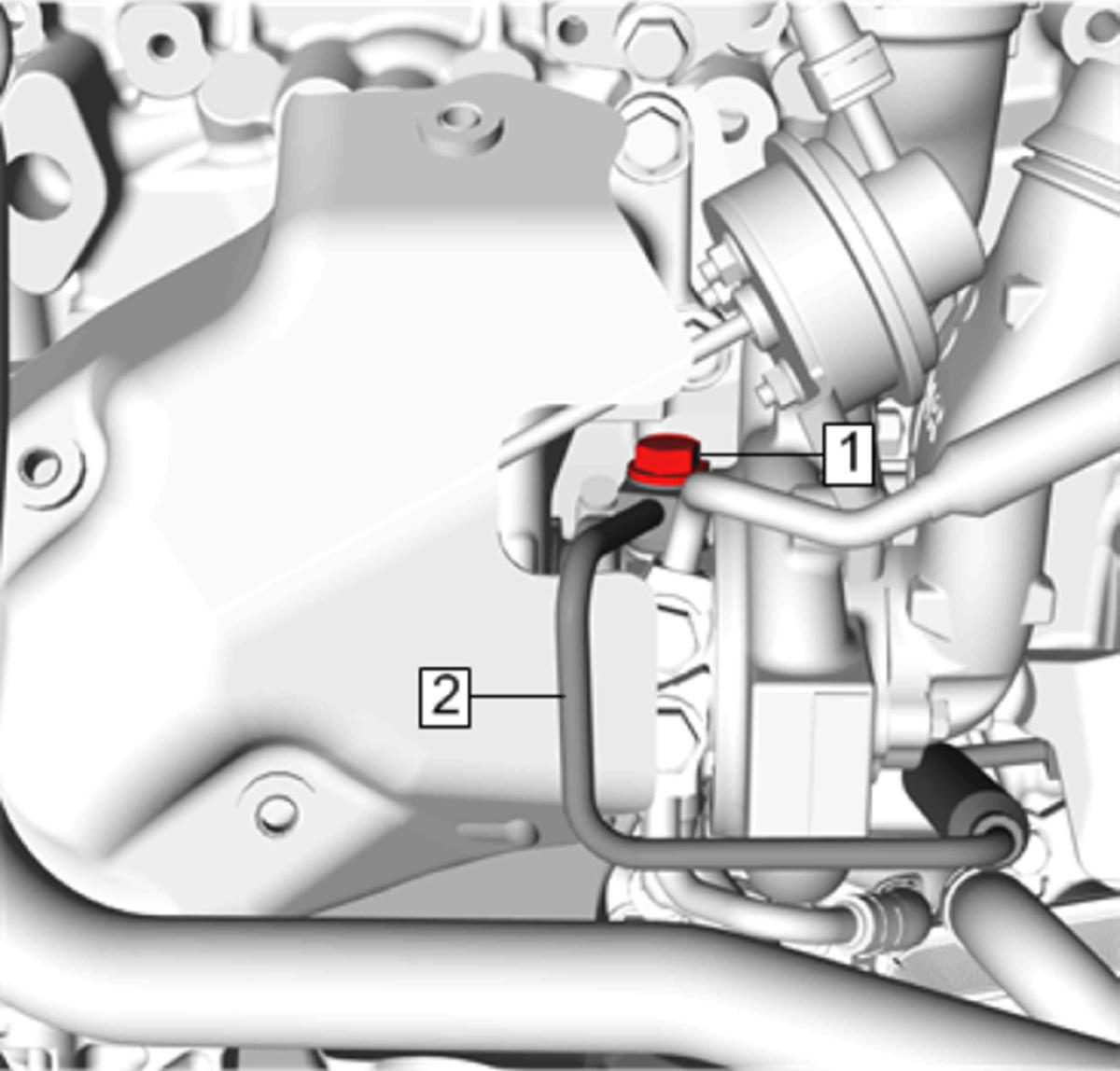

Fig 2: Turbocharger Oil Feed Pipe Hollow Screw

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

NOTE:

Install NEW copper gaskets.

Install Turbocharger Oil Feed Pipe Hollow Screw (1) and tighten 35 N.m (26 lb ft)

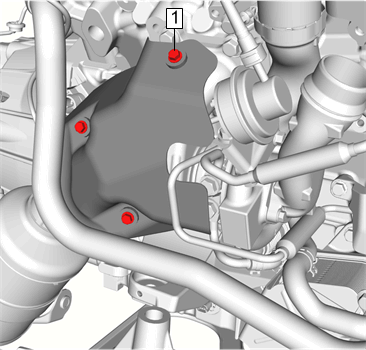

Fig 3: Turbocharger Heat Shield Fasteners

Courtesy of GENERAL MOTORS COMPANY

Install Turbocharger Heat Shield Fastener (1) and tighten 9 N.m (80 lb in)
Install Radiator Surge Tank Radiator Surge Tank Replacement (LF4, LGX)
