Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Install a NEW catalytic to manifold seal.

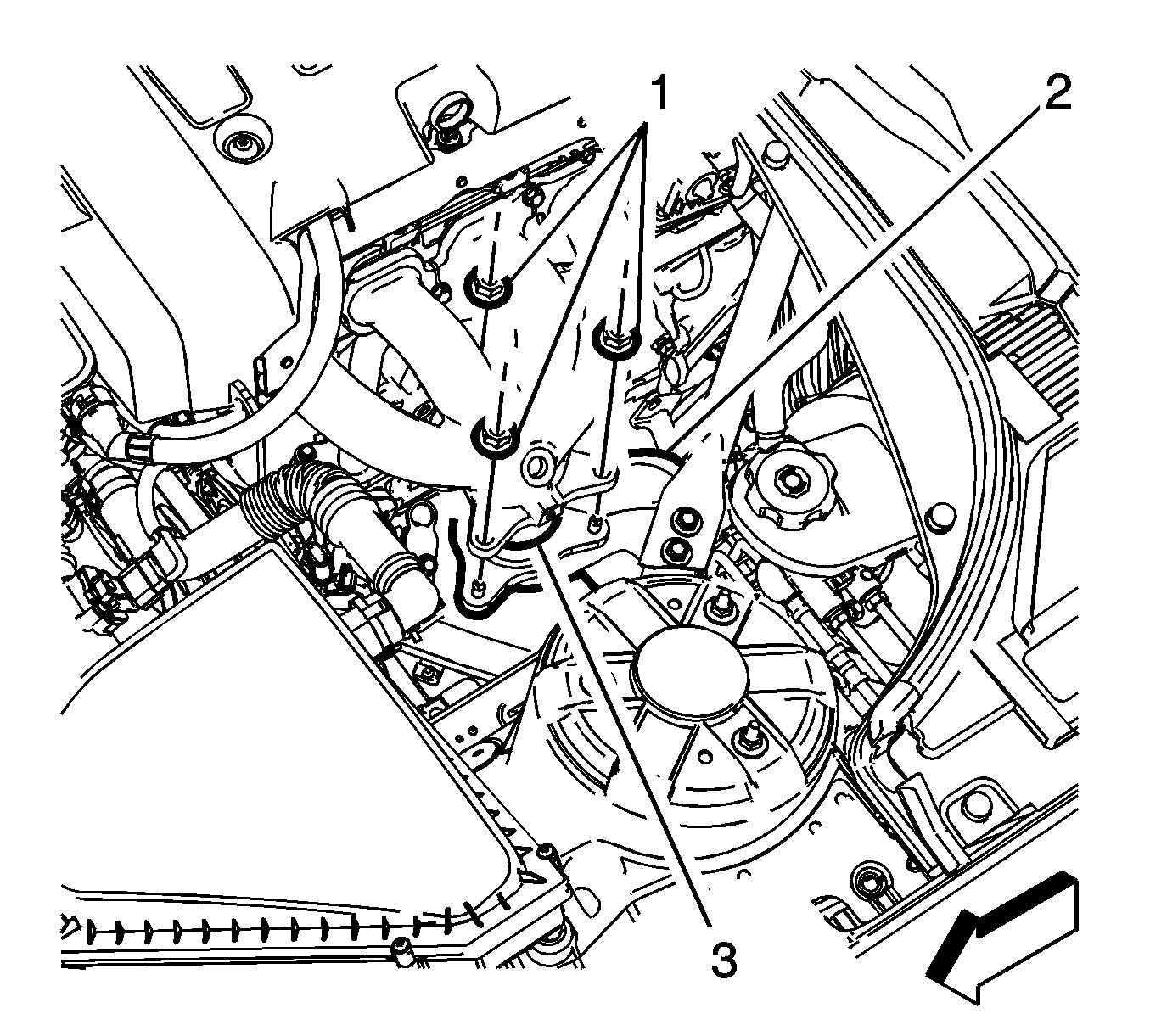

Fig 1: Exhaust Manifold Fasteners

Courtesy of GENERAL MOTORS COMPANY

With the aid of a second technician, install the catalytic converter (2) into the exhaust manifold with a NEW seal (3).
Loosely tighten the exhaust manifold fasteners (1).

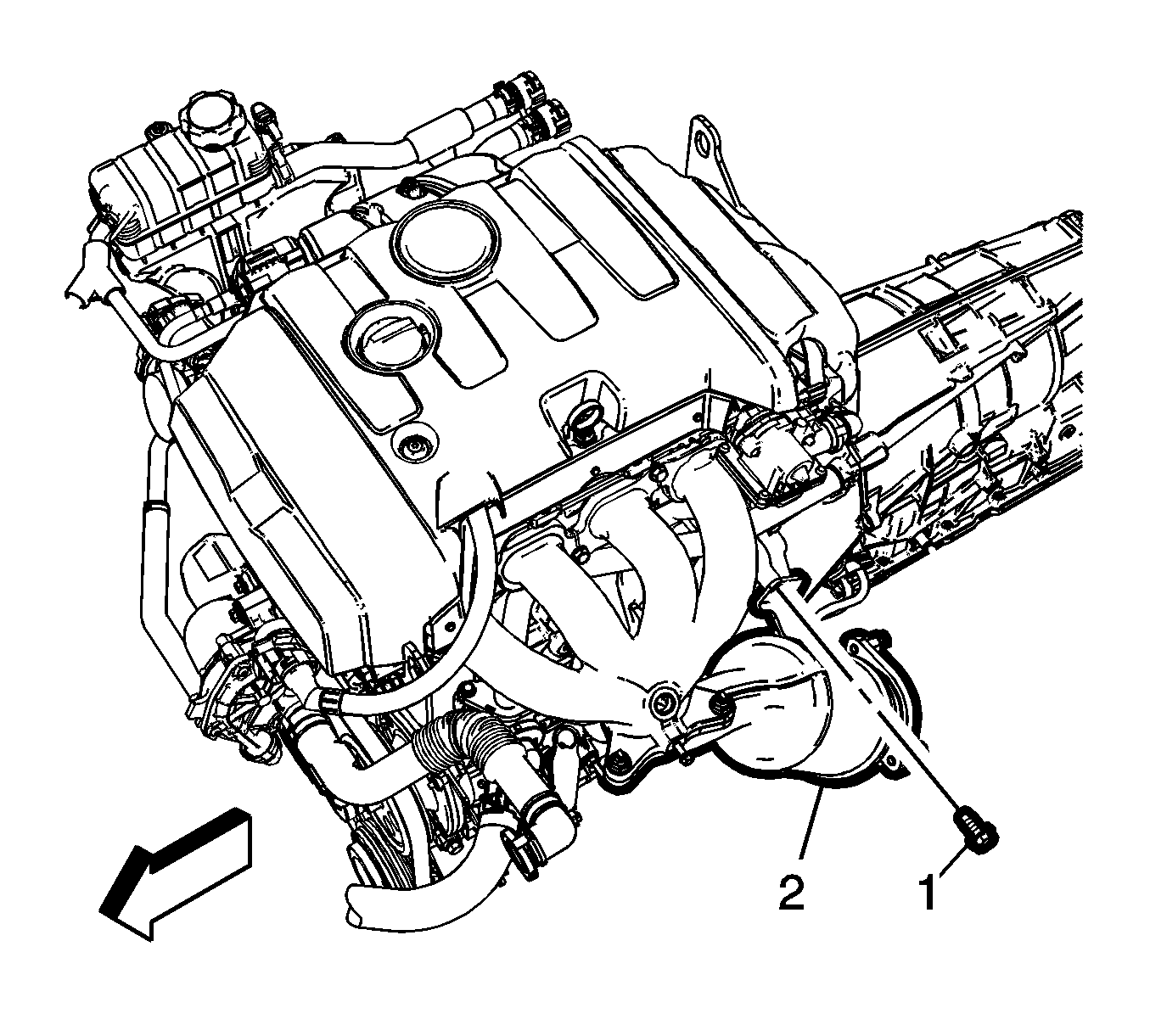

Fig 2: Catalytic Converter & Exhaust Support Brace Fastener

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the catalytic converter support brace to the engine block and tighten the fastener (1) to 22 N.m (16 lb ft).

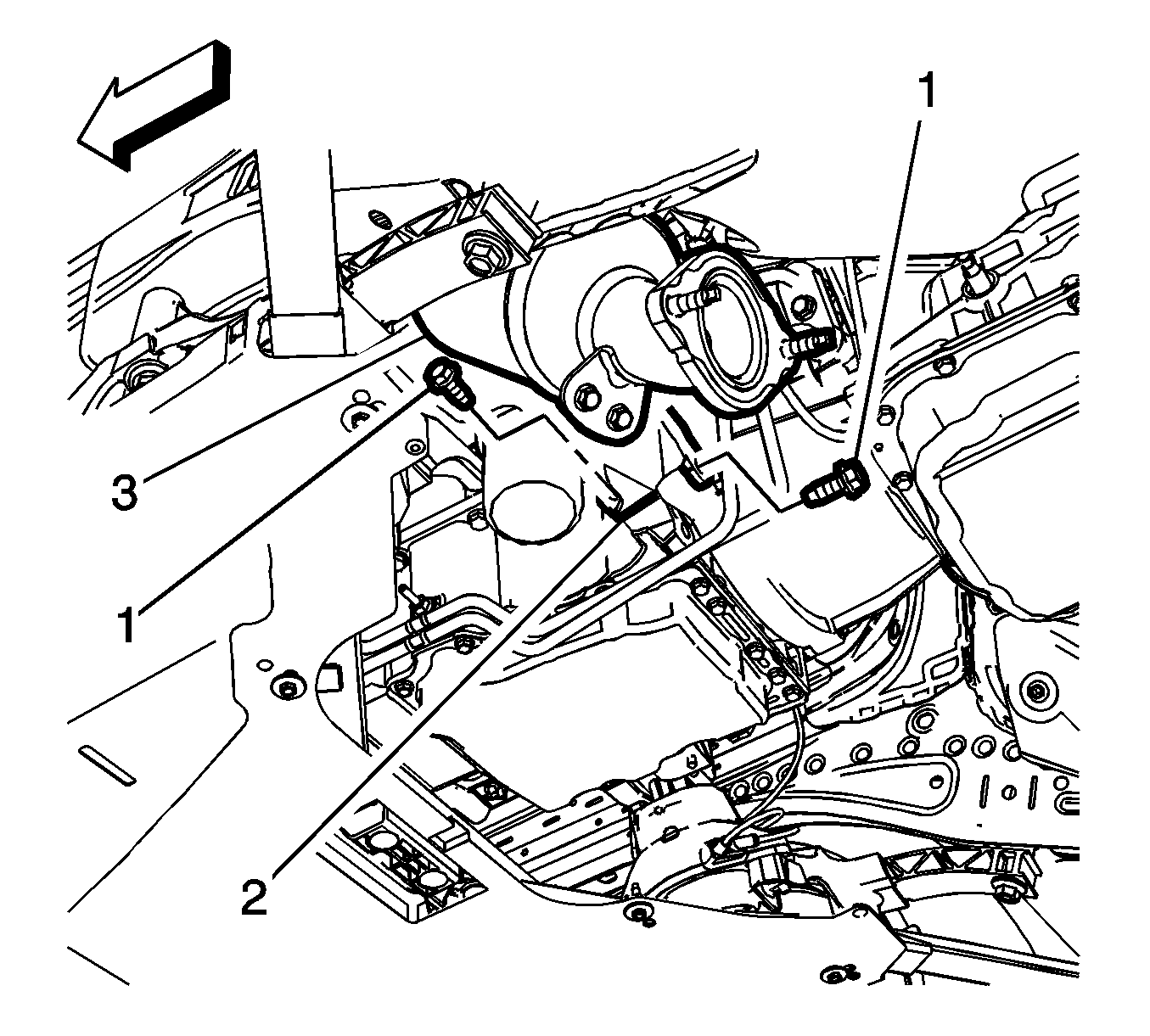

Fig 3: Catalytic Converter, Brace & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Install the catalytic converter (3) with the catalytic converter brace (2), to the engine block, and tighten the fasteners (1) to 22 N.m (16 lb ft).

Fig 4: Exhaust Manifold Fasteners

Courtesy of GENERAL MOTORS COMPANY

Tighten the exhaust manifold fasteners (1) to 50 N.m (37 lb ft).
Connect the heated oxygen sensor harness connector.
Install the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (LCV) .

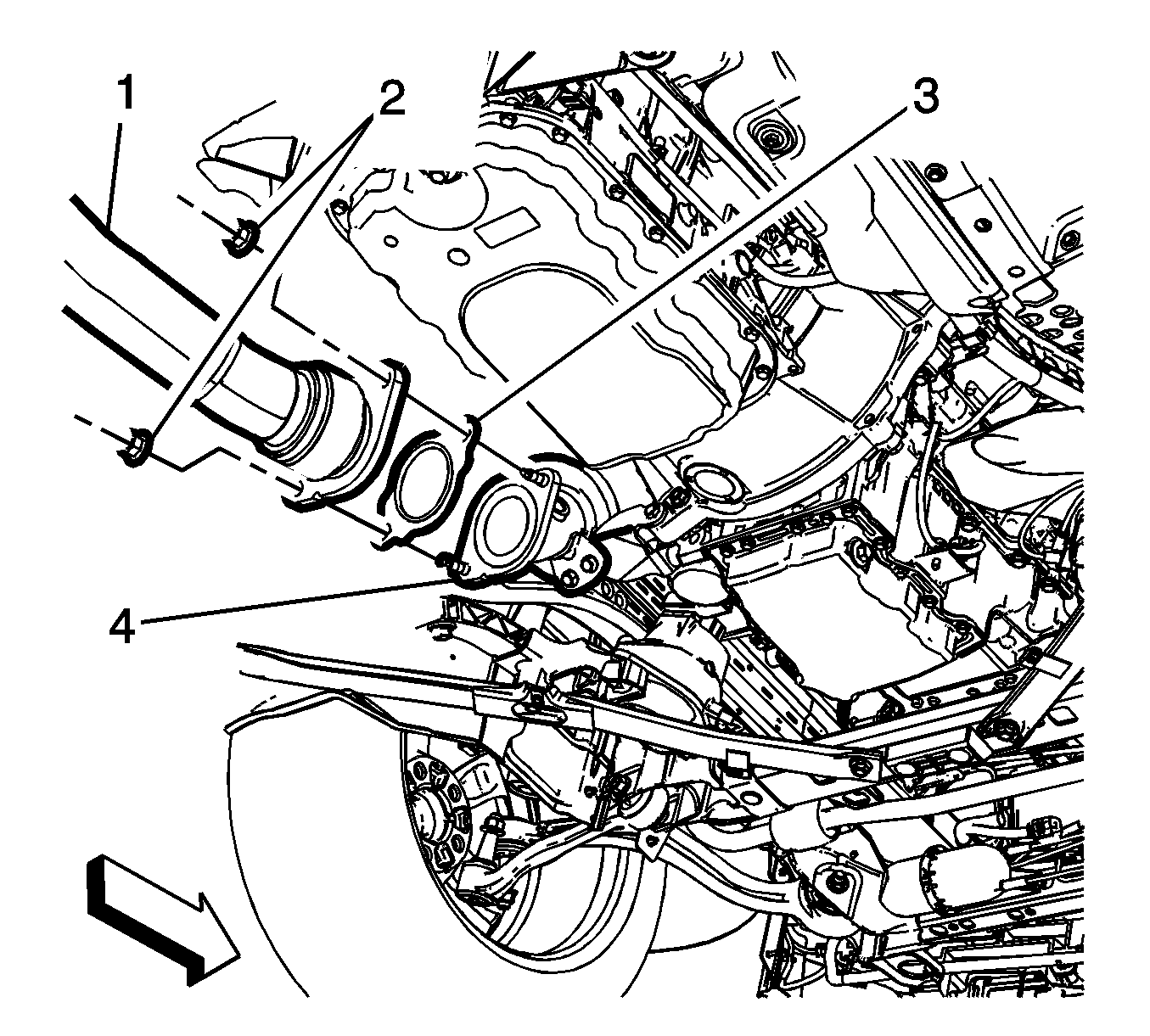

Fig 5: Exhaust Muffler, Catalytic Converter & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Install the exhaust muffler (1) to the catalytic converter (4) with a NEW gasket (3) and tighten the fasteners (2) to 50 N.m (37 lb ft).
Start the vehicle and check for exhaust leaks.
