Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE:

    If reusing the propeller shaft bolts, to ensure proper adhesion and fastener retention, the threads must be free of debris prior to the application of threadlocker. Use an appropriate cleaner to thoroughly clean the threads and allow to dry. Apply threadlocker to the propeller shaft to flange bolts. Ensure that there are no gaps in the threadlocker along the length of the filled area of the bolts. Allow the threadleocker to cure approximately 10 minutes before installation.

  1. Thoroughly clean apply threadlocker to the threads of the propeller shaft bolts. Adhesives, Fluids, Lubricants, and Sealers

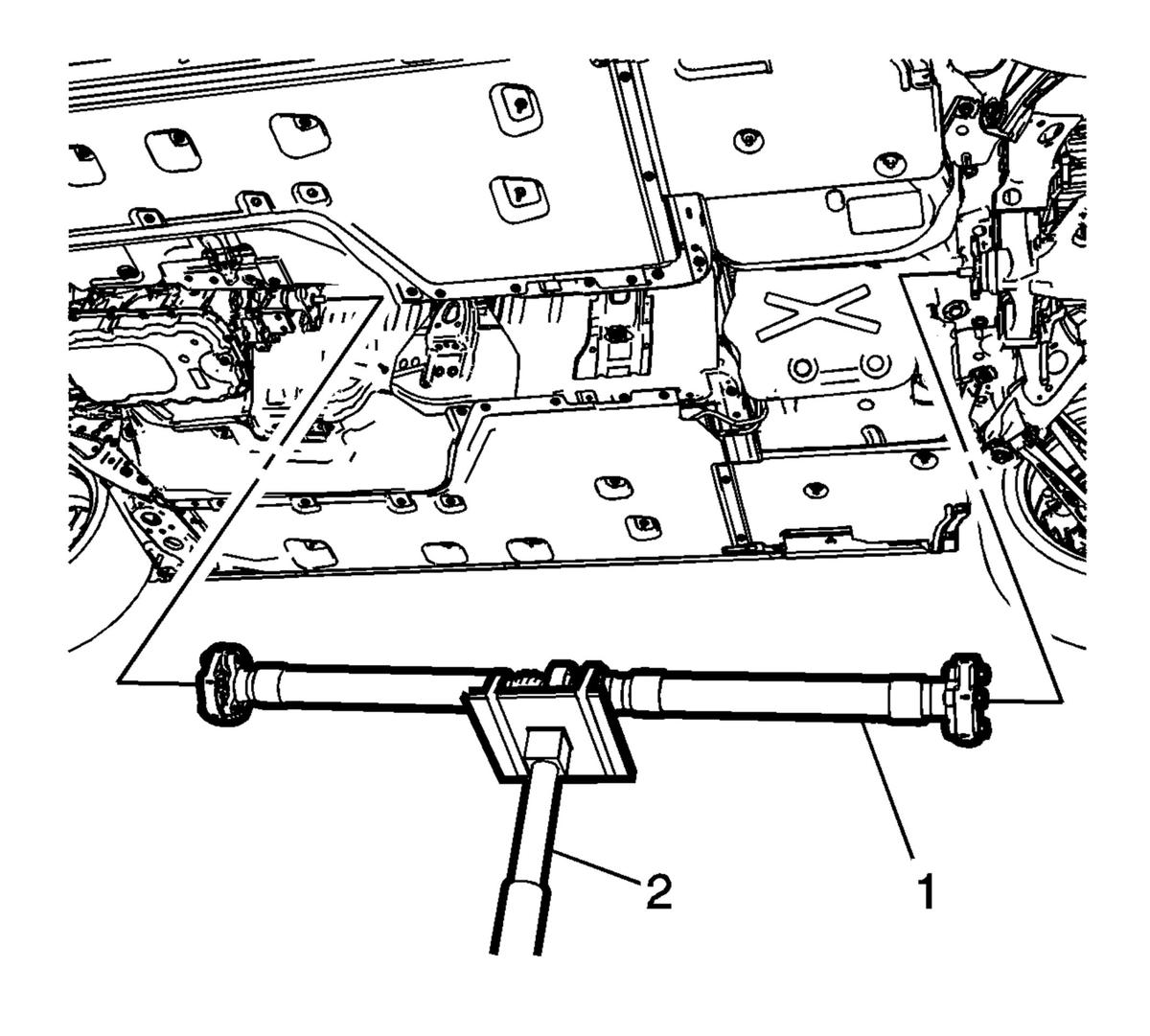

  2. Fig 1: Propeller Shaft
    GM2837690Courtesy of GENERAL MOTORS COMPANY
  3. Position the propeller shaft (1) in the vehicle.

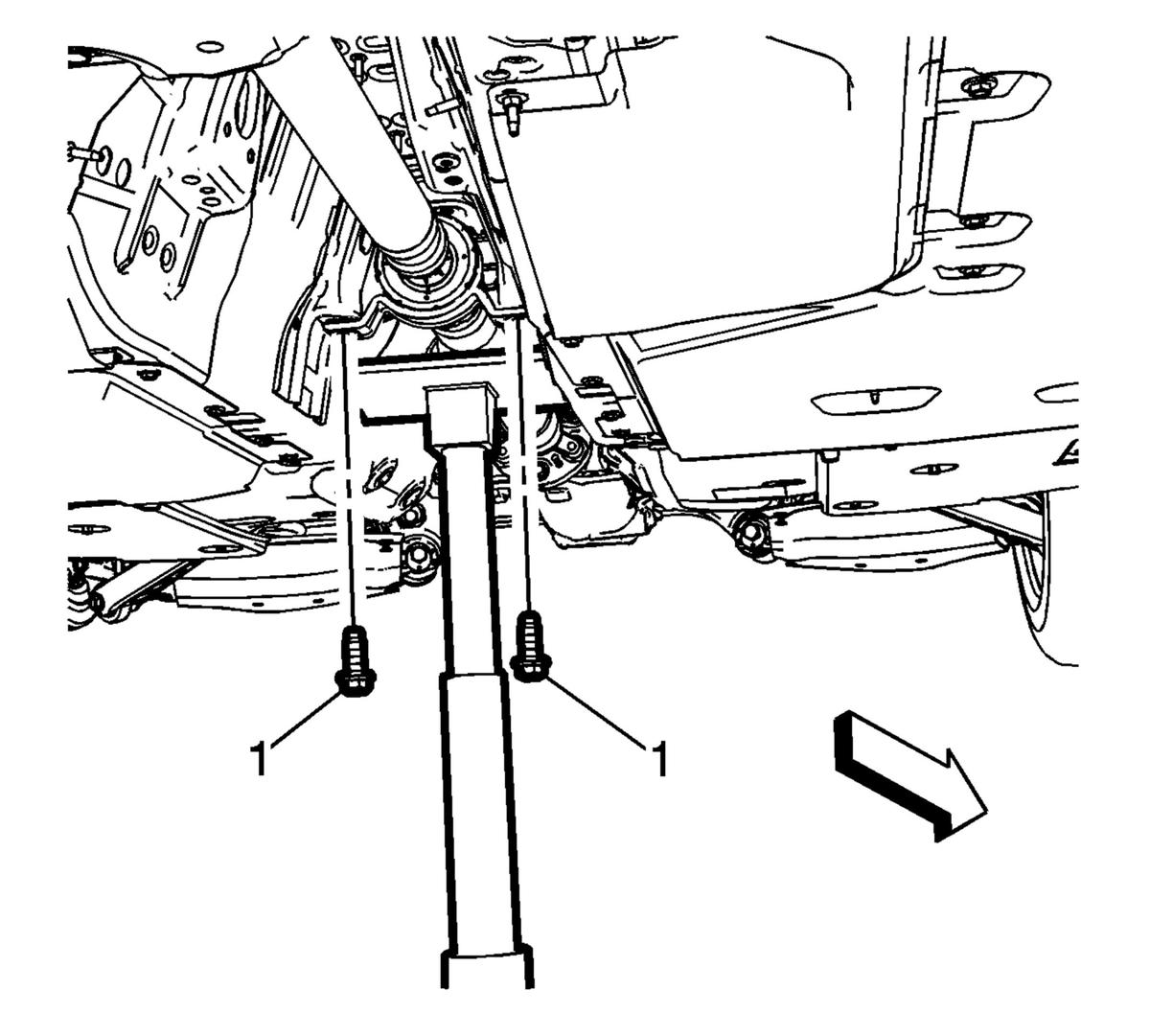

  4. Fig 2: Propeller Shaft Bearing Support Bolts
    GM2837672Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  5. Install the 2 propeller shaft bearing bolts (1) and tighten to 50 N.m (37 lb ft).

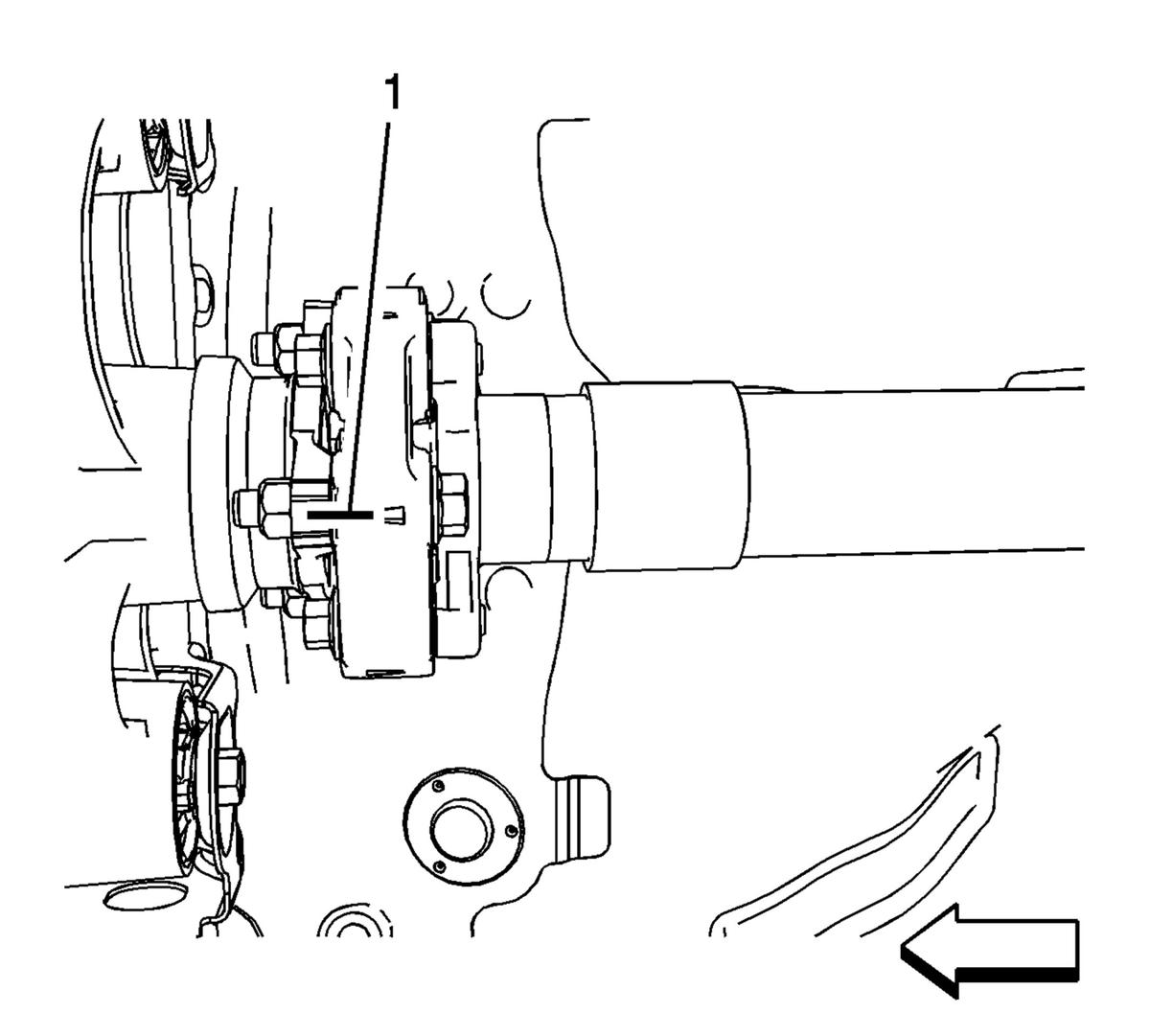

  6. Fig 3: Propeller Shaft Flange/Rear Wheel Drive Shaft Flange Relationship Mark
    GM2837982Courtesy of GENERAL MOTORS COMPANY
  7. Align the reference marks (1) between the propeller shaft flange and the rear wheel drive shaft flange.

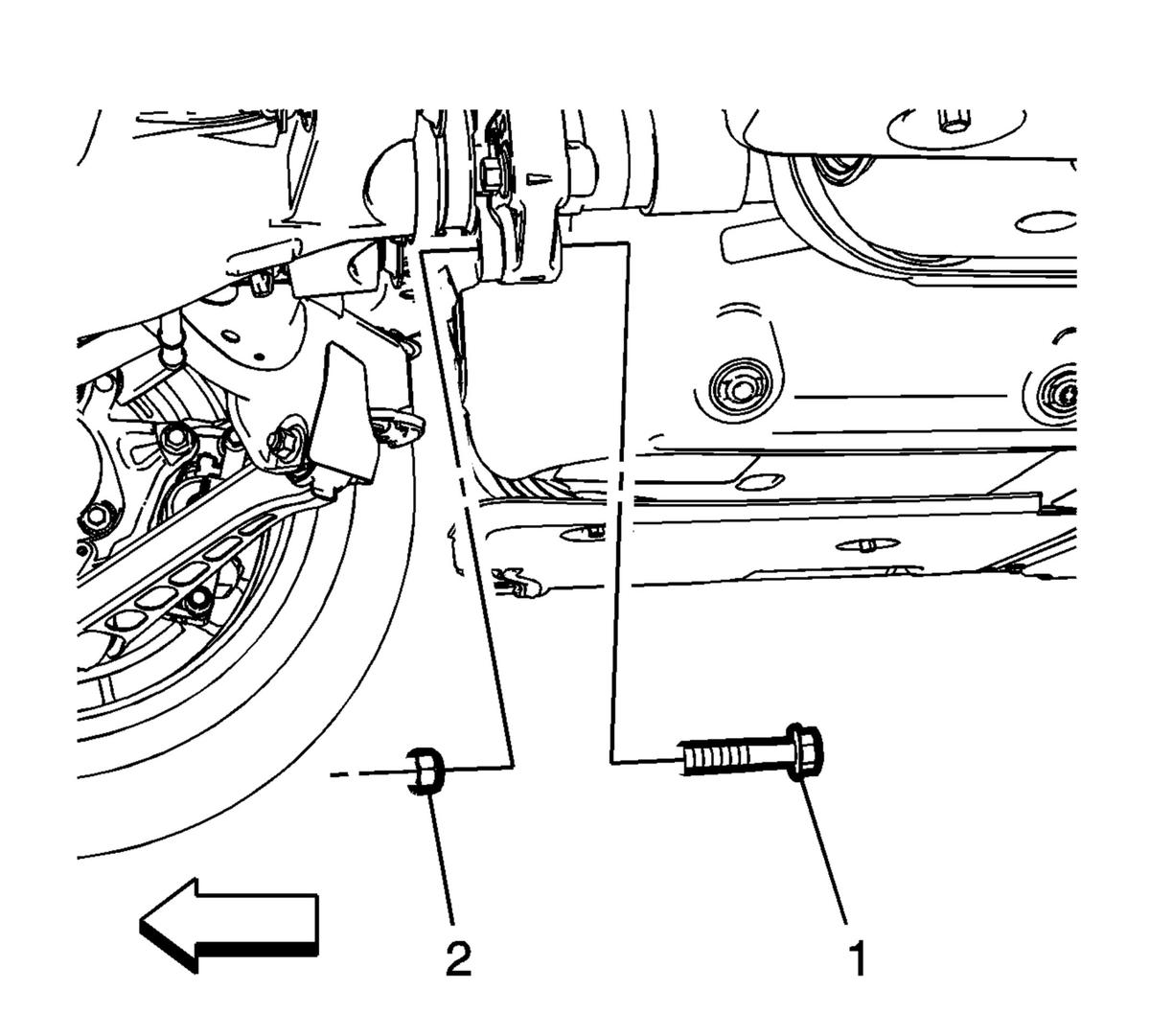

  8. Fig 4: Rear Propeller Shaft Bolt & Nuts
    GM2837681Courtesy of GENERAL MOTORS COMPANY
  9. Install the 3 rear propeller shaft nuts (2) and the bolts (1).
  10. Tighten the bolts (1) to 90 N.m (66 lb ft).

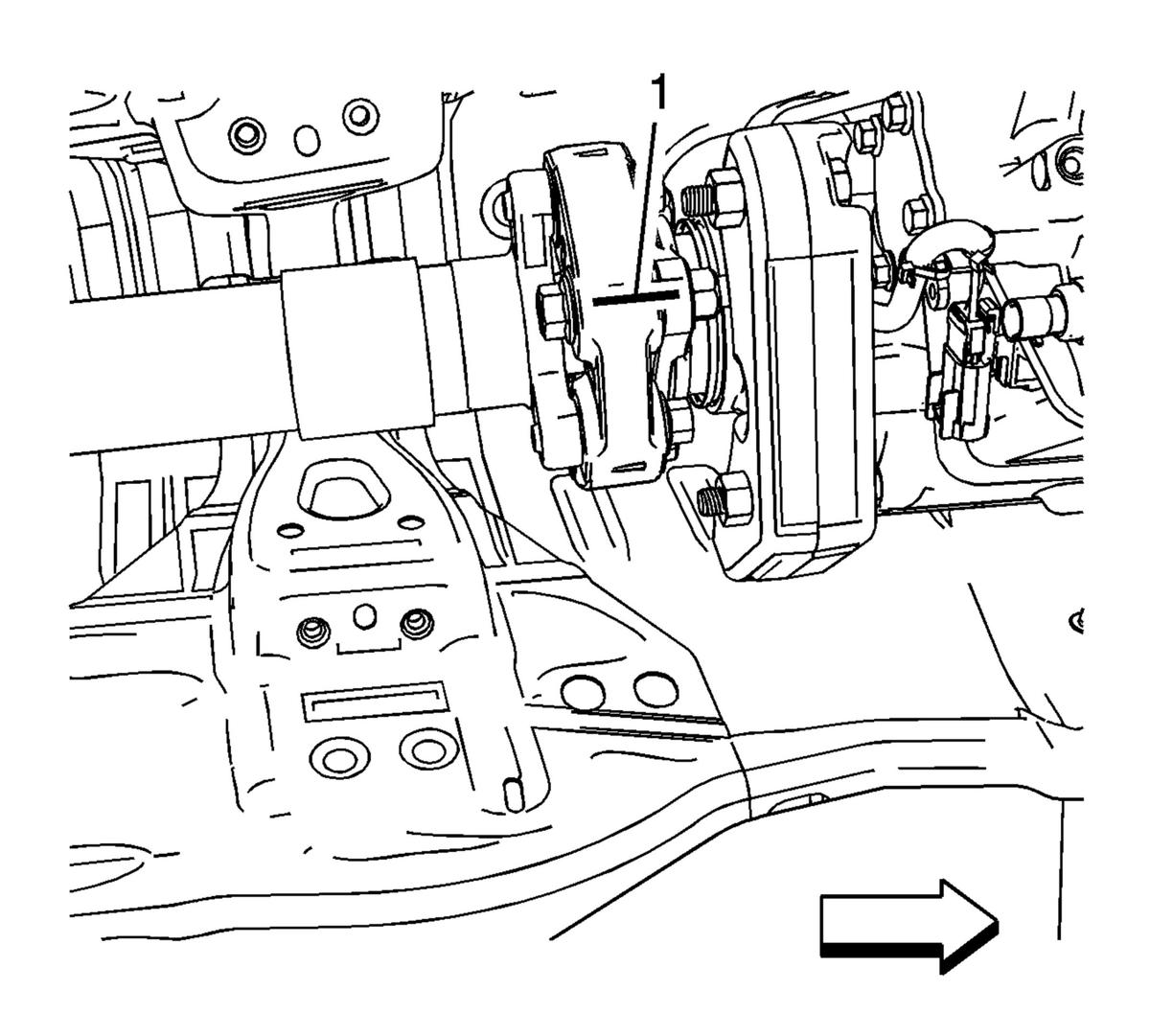

  11. Fig 5: Propeller Shaft Flange/Transmission Output Flange Relationship Mark
    GM2837969Courtesy of GENERAL MOTORS COMPANY
  12. Align the reference marks (1) between the propeller shaft flange and the output flange of the transmission.

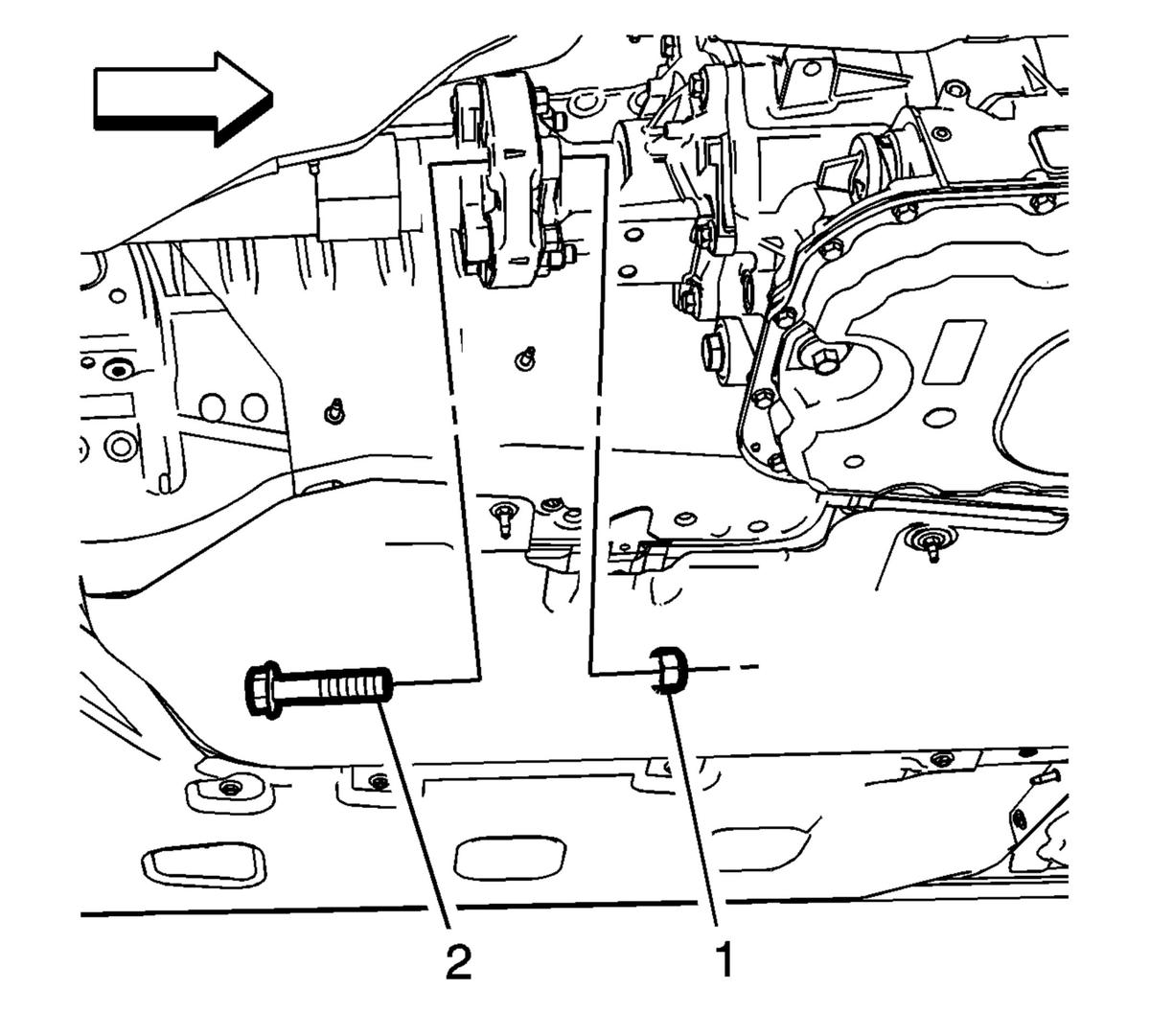

  13. Fig 6: Front Propeller Shaft Bolt & Nuts
    GM2837680Courtesy of GENERAL MOTORS COMPANY
  14. Install the 3 front propeller shaft nuts (2) and the bolts (1).
  15. Tighten the bolts (1) to 90 N.m (66 lb ft).
  16. Install the floor panel number 2 cross brace.
  17. Install the intermediate body exhaust heat shield. Intermediate Body Exhaust Heat Shield Replacement (Non V-Series)Intermediate Body Exhaust Heat Shield Replacement (V-Series)
  18. Install the exhaust muffler. Exhaust Muffler Replacement (LF4)
  19. Install the floor panel number 4 cross bar. Floor Panel Number 4 Cross Bar Replacement
  20. Remove the support and lower the vehicle.
