Intermediate Body Exhaust Heat Shield Replacement (Non V-Series)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Exhaust Service Warning .
WARNING:
Preliminary Procedure Lower the muffler. Refer to Exhaust Muffler Replacement (LCV) Exhaust Muffler Replacement (LTG) , or Exhaust System Replacement (LGX) .Refer to Eye Protection Warning . |
|

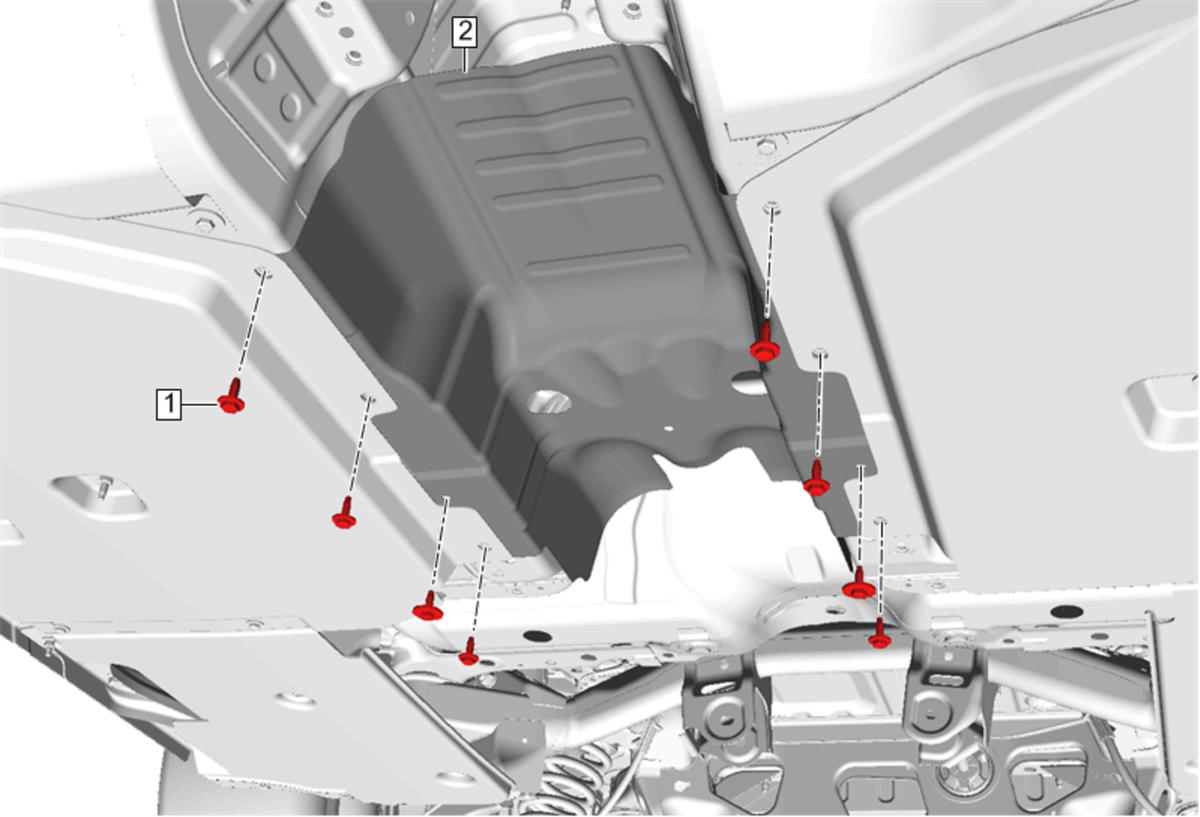

| 1 | Intermediate Body Exhaust Heat Shield Fastener (Qty: 8)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Intermediate Body Exhaust Heat Shield |
