Windshield Wiper Transmission Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

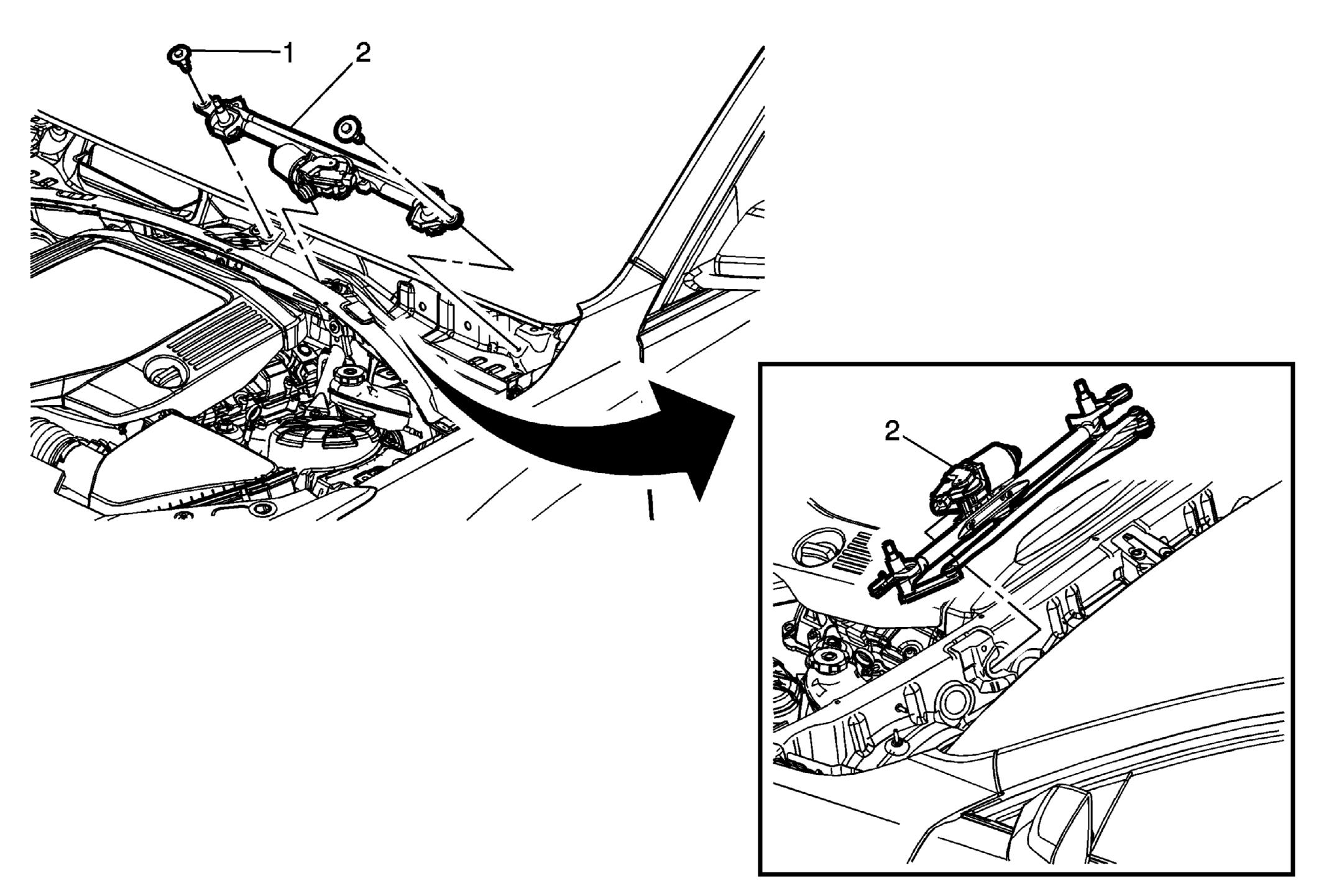

Fig 1: Windshield Wiper Transmission

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Sedan) .
1	Windshield Wiper Transmission Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Windshield Wiper Transmission Procedure Slide the windshield wiper transmission inboard to release the grommet from the plenum. Disconnect the windshield wiper motor electrical connector. Remove the windshield wiper transmission from the vehicle. Transfer windshield wiper motor if necessary. Refer to Windshield Wiper Motor Replacement .

Callout

Component Name

Preliminary Procedure
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Sedan) .

Windshield Wiper Transmission Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Windshield Wiper Transmission

Procedure

Slide the windshield wiper transmission inboard to release the grommet from the plenum.
Disconnect the windshield wiper motor electrical connector.
Remove the windshield wiper transmission from the vehicle.
Transfer windshield wiper motor if necessary. Refer to Windshield Wiper Motor Replacement .
