Air Inlet Grille Panel Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

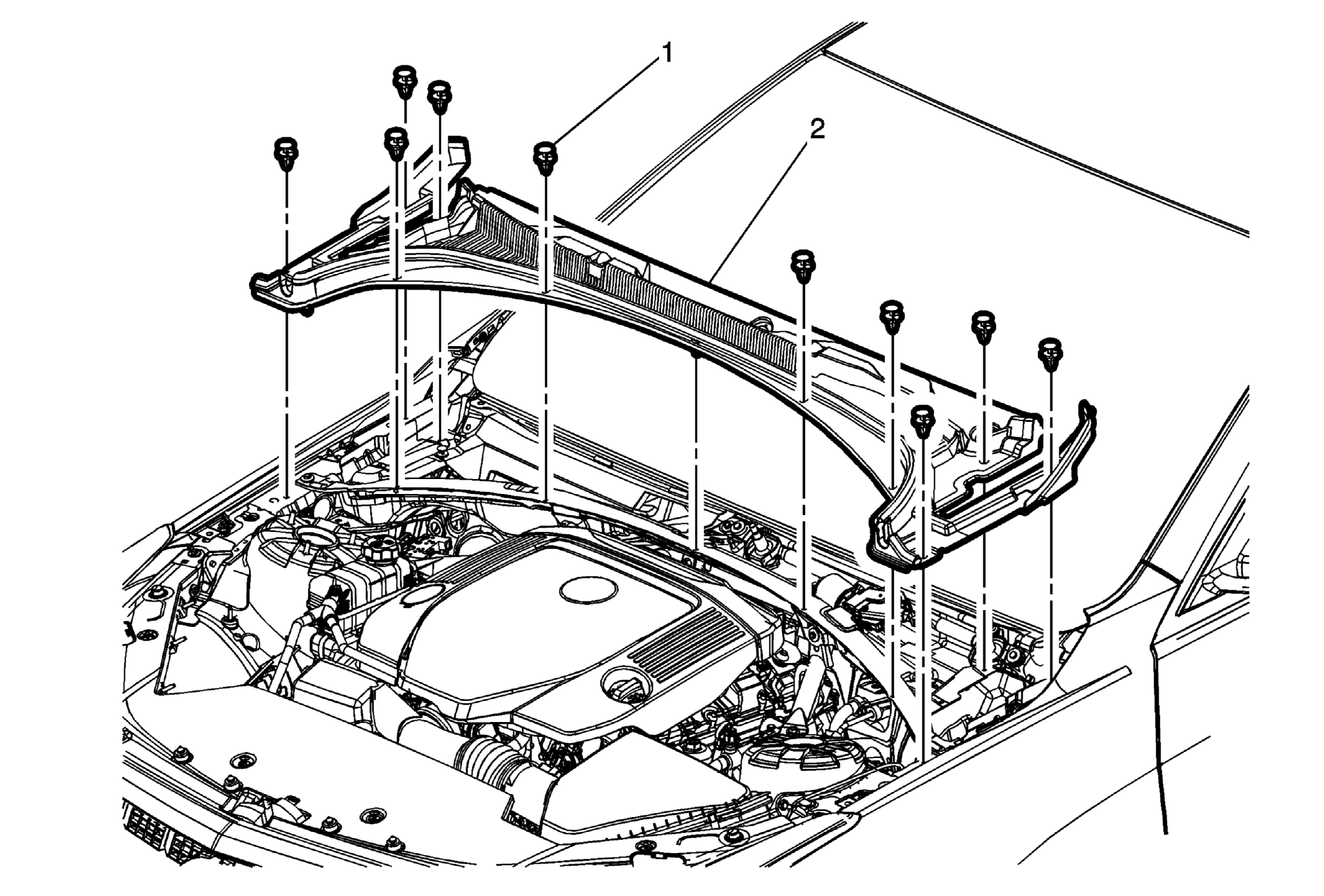

Fig 1: Air Inlet Grille Panel & Retainers (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement (Sedan) . Remove the air inlet grille panel extensions. Refer to Air Inlet Grille Panel Extension Replacement (Sedan) .
1	Air Inlet Grille Panel Retainer (Qty: 10)
2	Air Inlet Grille Panel Procedure Using a trim type release tool, disengage the center air inlet grille panel retainer. Use a suitable plastic tool to release the air inlet grille panel from the windshield lower molding. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges. Disconnect the windshield washer hose. Transfer parts as needed.

Callout

Component Name

Preliminary Procedure

Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement (Sedan) .
Remove the air inlet grille panel extensions. Refer to Air Inlet Grille Panel Extension Replacement (Sedan) .

Air Inlet Grille Panel Retainer (Qty: 10)

Air Inlet Grille Panel

Procedure

Using a trim type release tool, disengage the center air inlet grille panel retainer.
Use a suitable plastic tool to release the air inlet grille panel from the windshield lower molding.
Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
Disconnect the windshield washer hose.
Transfer parts as needed.
