Windshield Washer Solvent Container Replacement (Sedan with CE4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

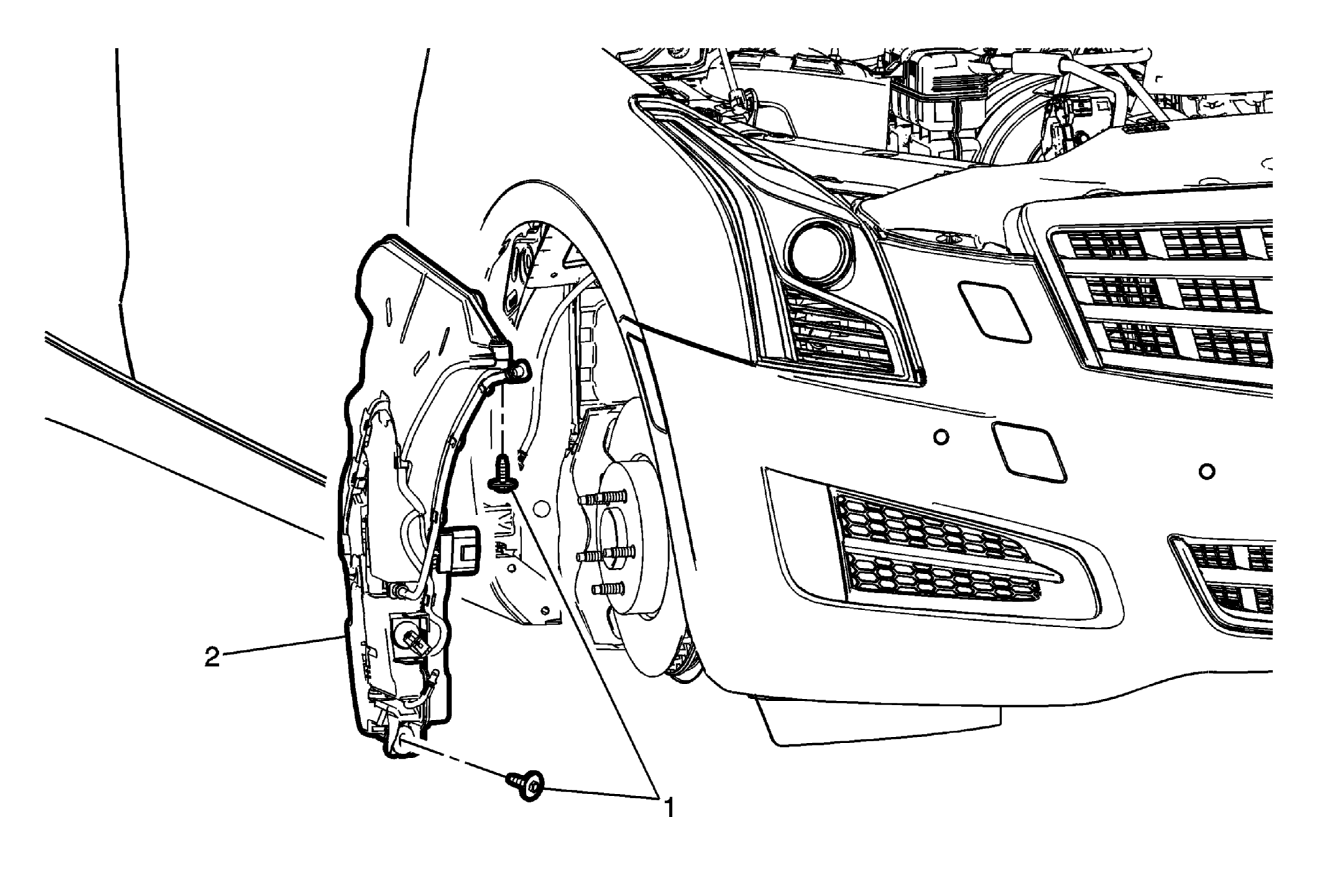

| Callout |
Component Name |
|
Preliminary Procedure
- Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series)
.
- Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement (Sedan with CE4) .
- Disconnect the headlamp washer hose from the headlamp washer pump hose.
- Disconnect the electrical connector from the forward lamp harness connector.
- Disconnect the windshield washer pump hose from the windshield washer hose connection.
|
| 1 |
Windshield Washer Solvent Container Bolt (Qty: 2)
|
| 2 |
Windshield Washer Solvent Container Procedure
- Pull the windshield washer solvent container forward, from behind the right front fender.
- Empty the windshield washer solvent into a suitable clean container.
- Transfer parts as needed.
|
