Windshield Washer Solvent Container Filler Tube Replacement (Sedan with CE4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

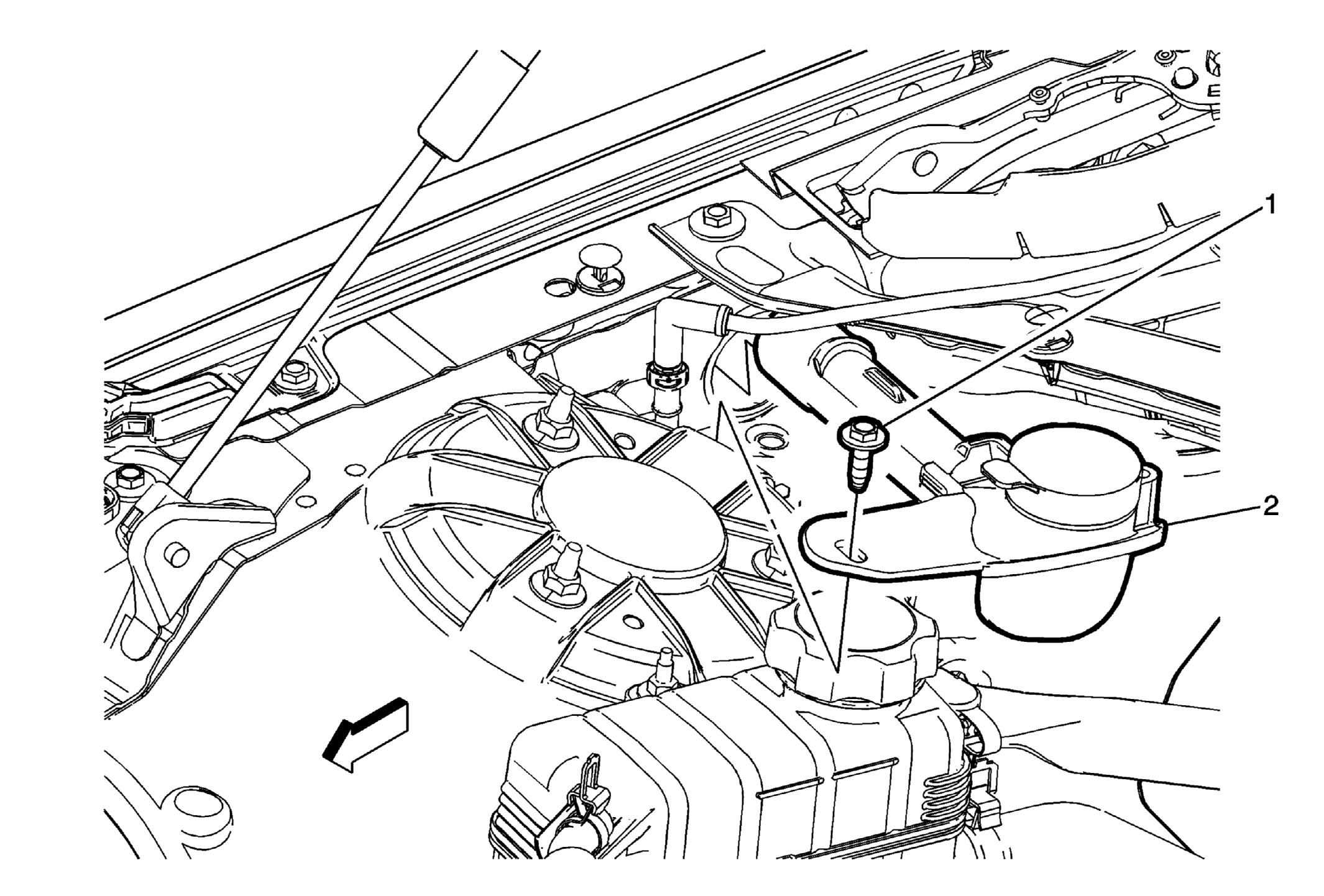

| Callout | Component Name |
|---|---|
| Preliminary Procedure Open and support the hood. |
|
| 1 | Windshield Washer Solvent Container Filler Tube Bolt
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Windshield Washer Solvent Container Filler Tube Procedure Twist slightly left and right when removing the filler tube from the washer solvent container. |
