Windshield Washer Pump Wiring Harness Replacement (Sedan with CE4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

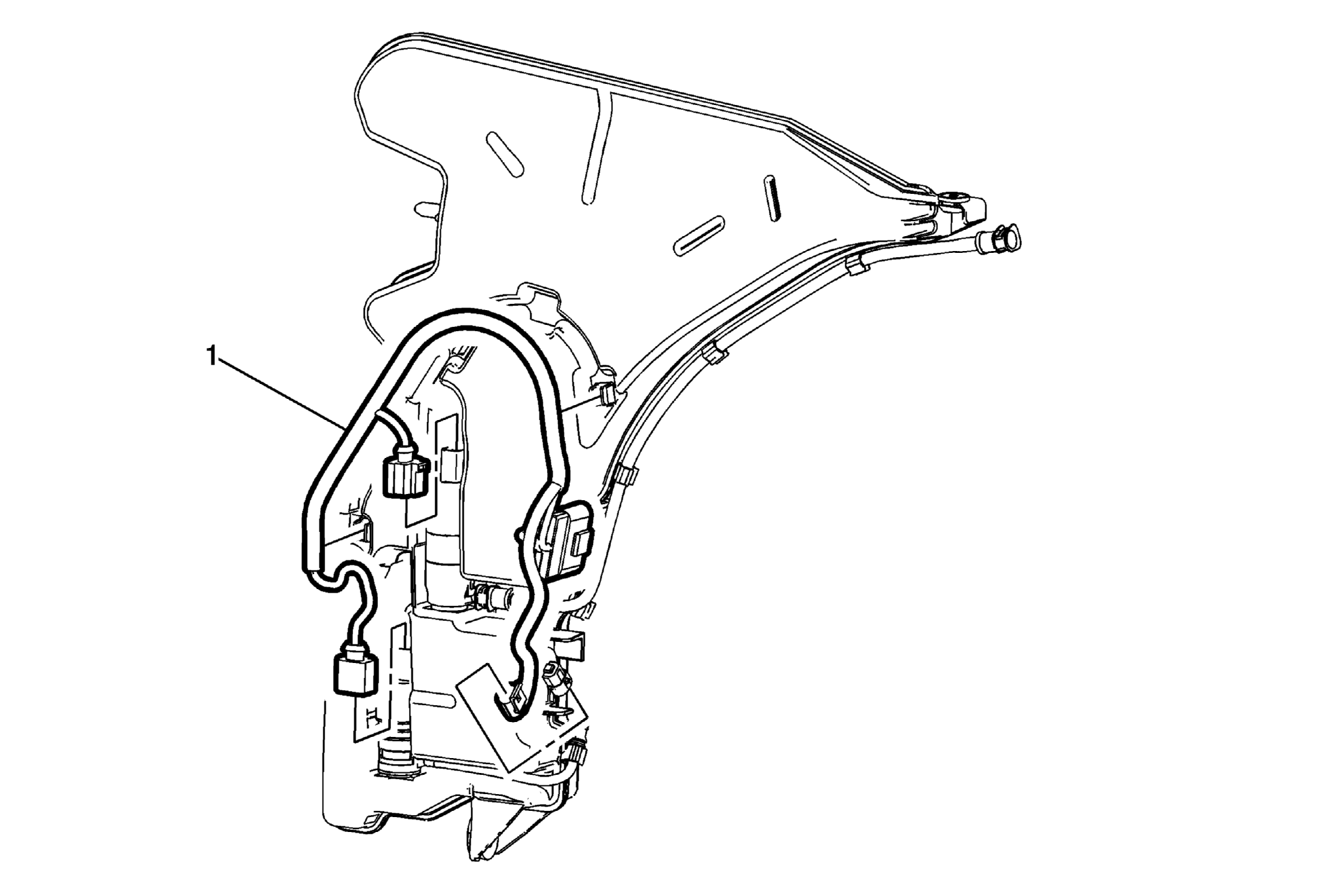

Fig 1: Windshield Washer Pump Wiring Harness (with CE4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (Sedan with CE4) .
1	Windshield Washer Pump Wiring Harness Procedure Using a trim type release tool, disengage the windshield washer pump wiring harness from the windshield washer solvent container. Disconnect the following electrical connectors: The windshield washer pump The headlamp washer pump The windshield washer solvent level sensor Remove the windshield washer pump wiring harness from the windshield washer solvent container.

Callout

Component Name

Preliminary Procedure
Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (Sedan with CE4) .

Windshield Washer Pump Wiring Harness

Procedure

Using a trim type release tool, disengage the windshield washer pump wiring harness from the windshield washer solvent container.
Disconnect the following electrical connectors:
- The windshield washer pump
- The headlamp washer pump
- The windshield washer solvent level sensor
Remove the windshield washer pump wiring harness from the windshield washer solvent container.
