Windshield Washer Nozzle Hose Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

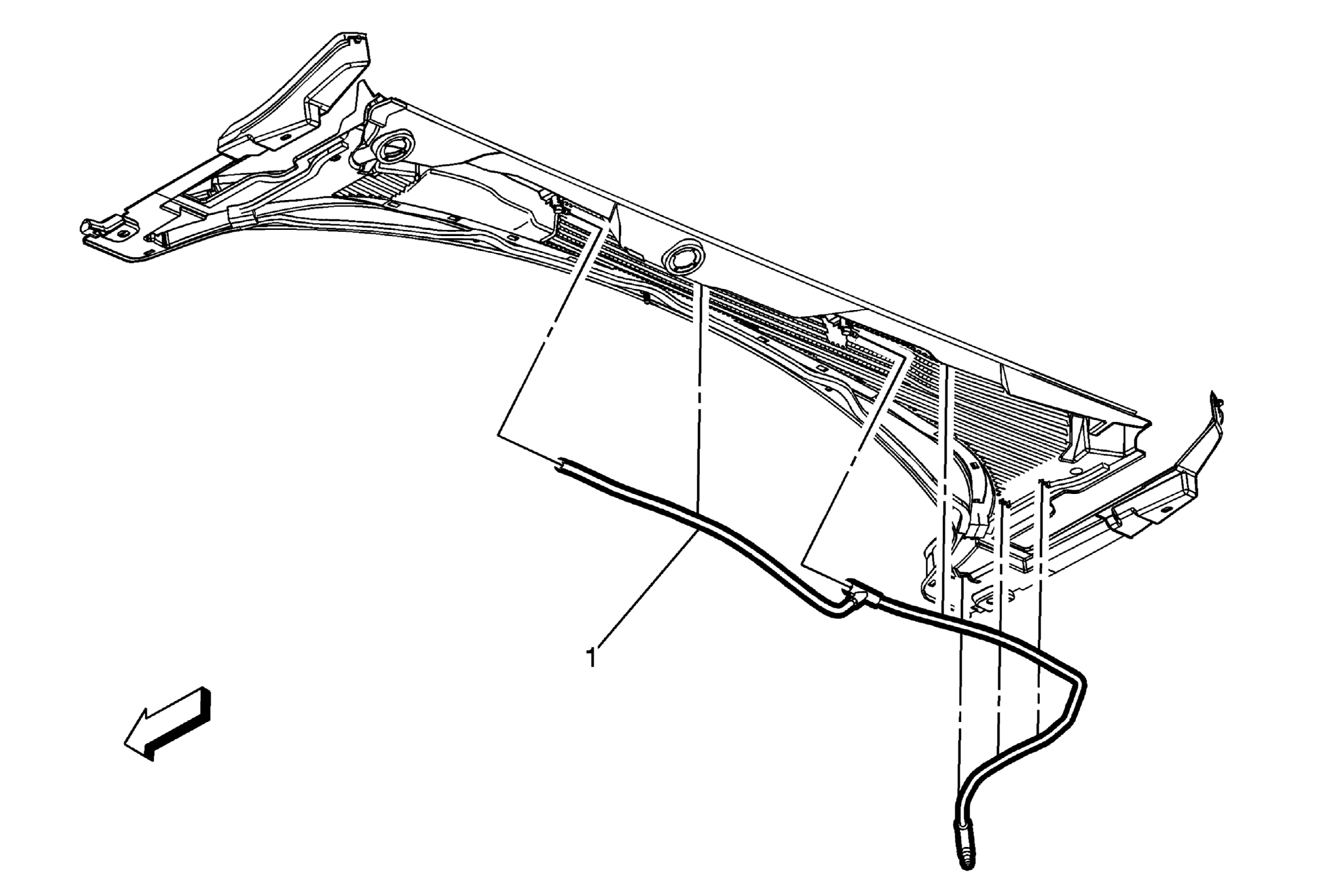

Fig 1: Windshield Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Sedan) .
1	Windshield Washer Nozzle Hose Procedure Disconnect the windshield washer hose at both windshield washer nozzle spouts. Remove the windshield washer hose from the air inlet grille panel retainers.

Callout

Component Name

Preliminary Procedure
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Sedan) .

Windshield Washer Nozzle Hose

Procedure

Disconnect the windshield washer hose at both windshield washer nozzle spouts.
Remove the windshield washer hose from the air inlet grille panel retainers.
