Windshield Washer Nozzle Hose Connector Hose Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement (Coupe) .
- Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series)
.
|
| 1 |

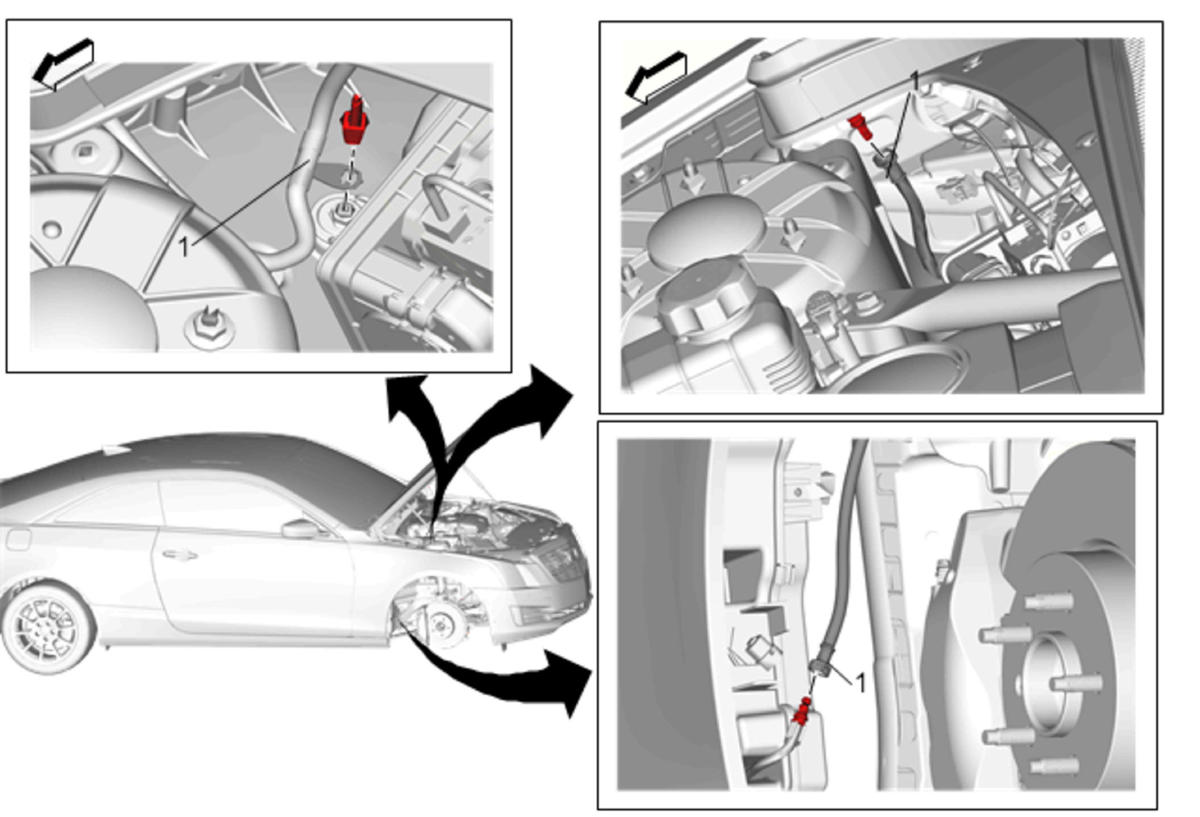

Windshield Washer Nozzle Hose Connector Hose Procedure
- From the front wheelhouse, disconnect the windshield washer nozzle hose connector hose from the windshield washer pump hose.
- From the engine compartment, release the windshield washer nozzle hose connector hose from the front wheelhouse panel stud.
- From the engine compartment, disconnect the windshield washer nozzle hose connector hose from the windshield washer nozzle hose.
- Pull the windshield washer nozzle hose connector hose up through the front wheelhouse panel and remove from the vehicle.
|
