Air Inlet Grille Panel Extension Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

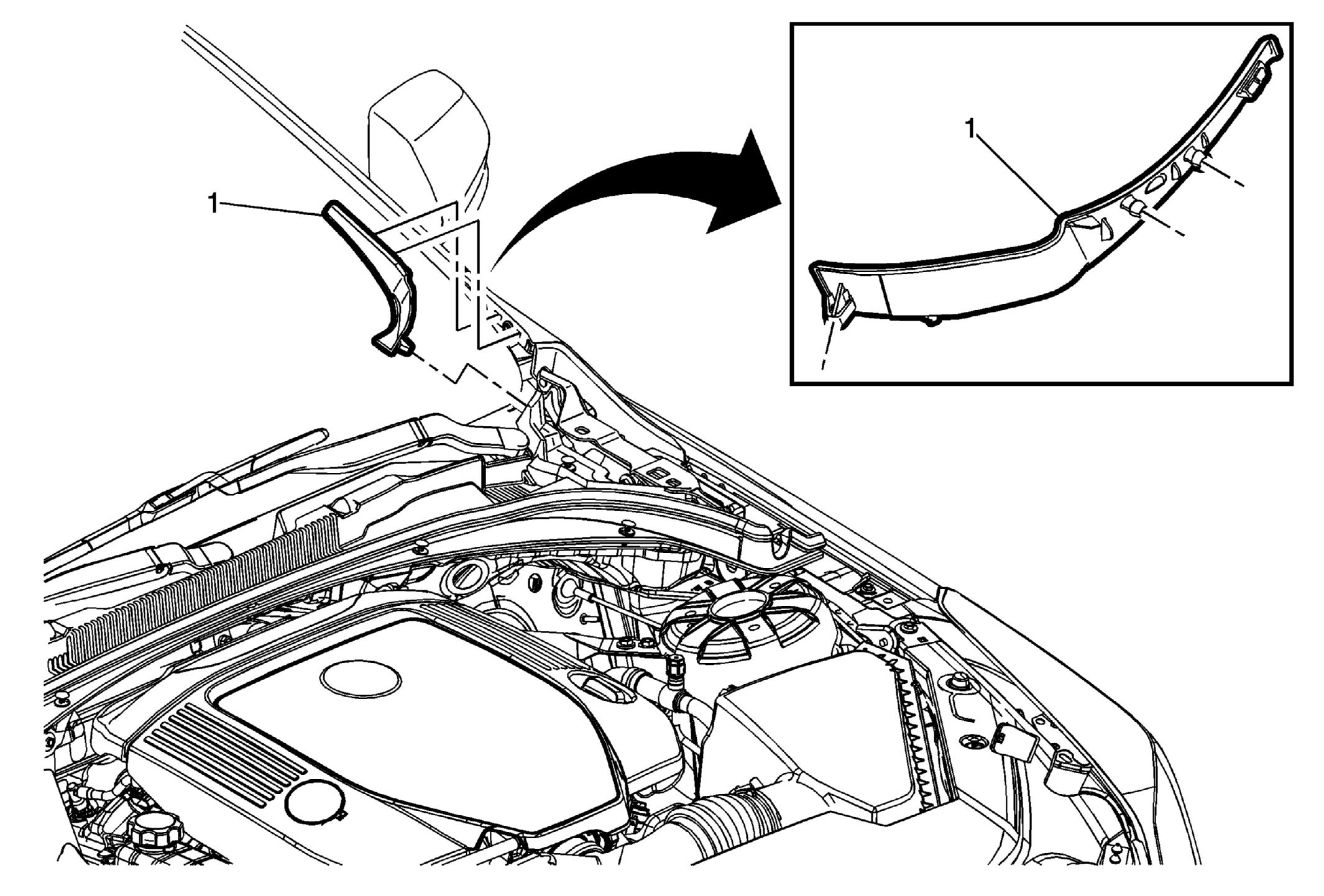

| Callout |
Component Name |
| 1 |
Air Inlet Grille Panel Extension
Procedure
Grasp the air inlet grille panel extension and disengage the retainers from the top edge of the fender and the end of the air inlet grille panel. |
