Removal Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upper rear side door opening reveal molding. Refer to Upper Rear Side Door Opening Reveal Molding Replacement .
- Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Coupe) .
- Cover the following parts to protect from broken glass:
- Upper dash pad
- Defroster outlets and A/C outlets
- Seats and carpeting
- Remove the window from the urethane adhesive.
- Leave a base of urethane approximately 2 mm (0.078 in) on the pinch-weld flange.
- The only suitable lubrication is clear water.
- BO-39032 Stationary Glass Removal Tool, or equivalent in order to remove the window.
- If necessary, use a long utility knife or similar tool to remove the bottom corners of the window from the urethane adhesive.

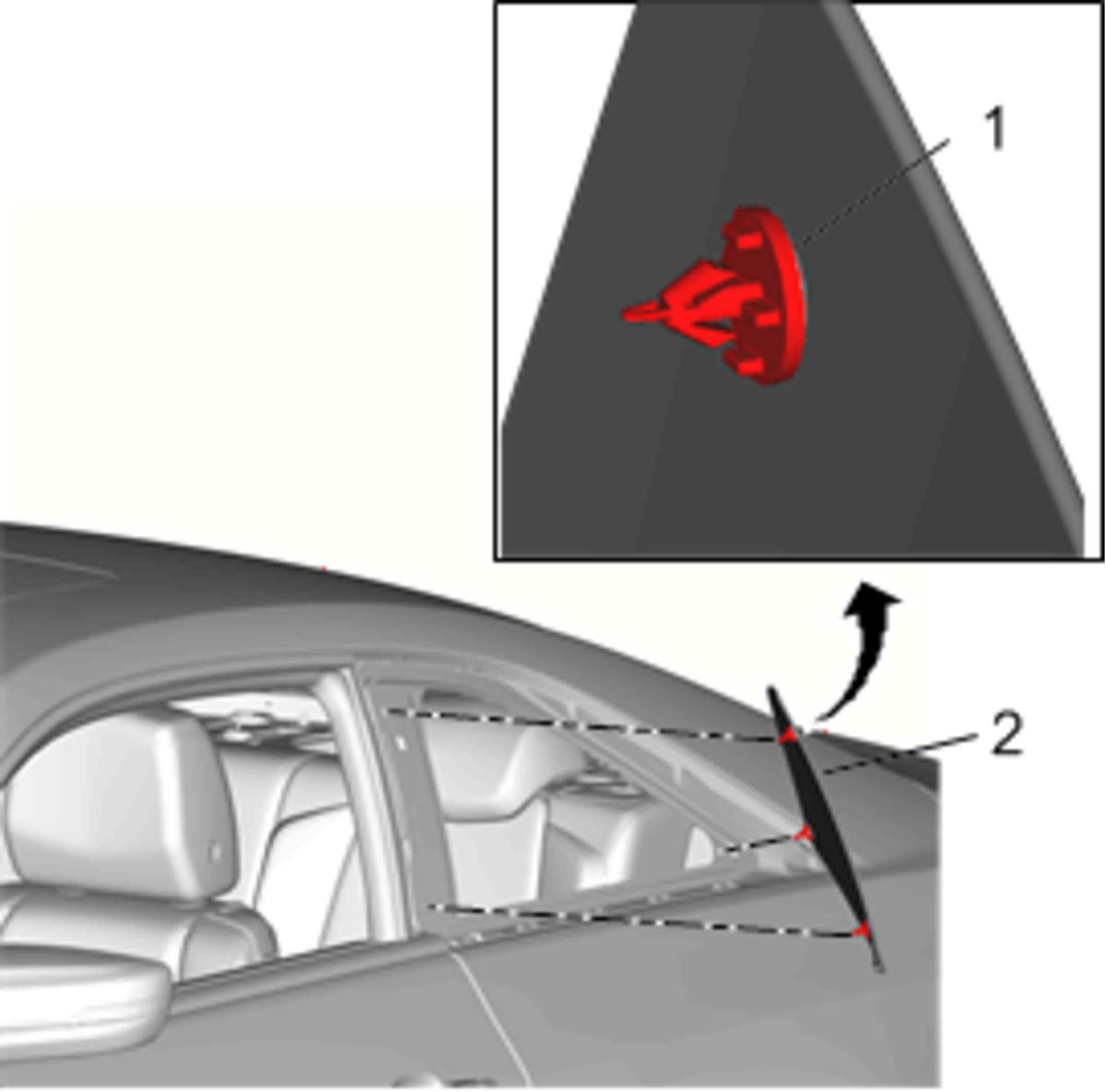

- Remove the locator pins (1) and quarter window (2) from the vehicle.
WARNING:
Refer to Cracked Window Warning .
NOTE:
Before cutting out a quarter window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
WARNING:
Refer to Defroster Outlet Warning .
NOTE:
There are window locating pins, one in each corner of the window. Use care Not to remove or cut them off when removing the window. If the window locator pins are cut, it will be necessary to tape the window in place.
Keep the cutting edge of the tool against the window.
NOTE:
Keep the cutting edge of the knife/tool against the window. Do this from inside the vehicle.
