Upper Rear Side Door Opening Reveal Molding Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

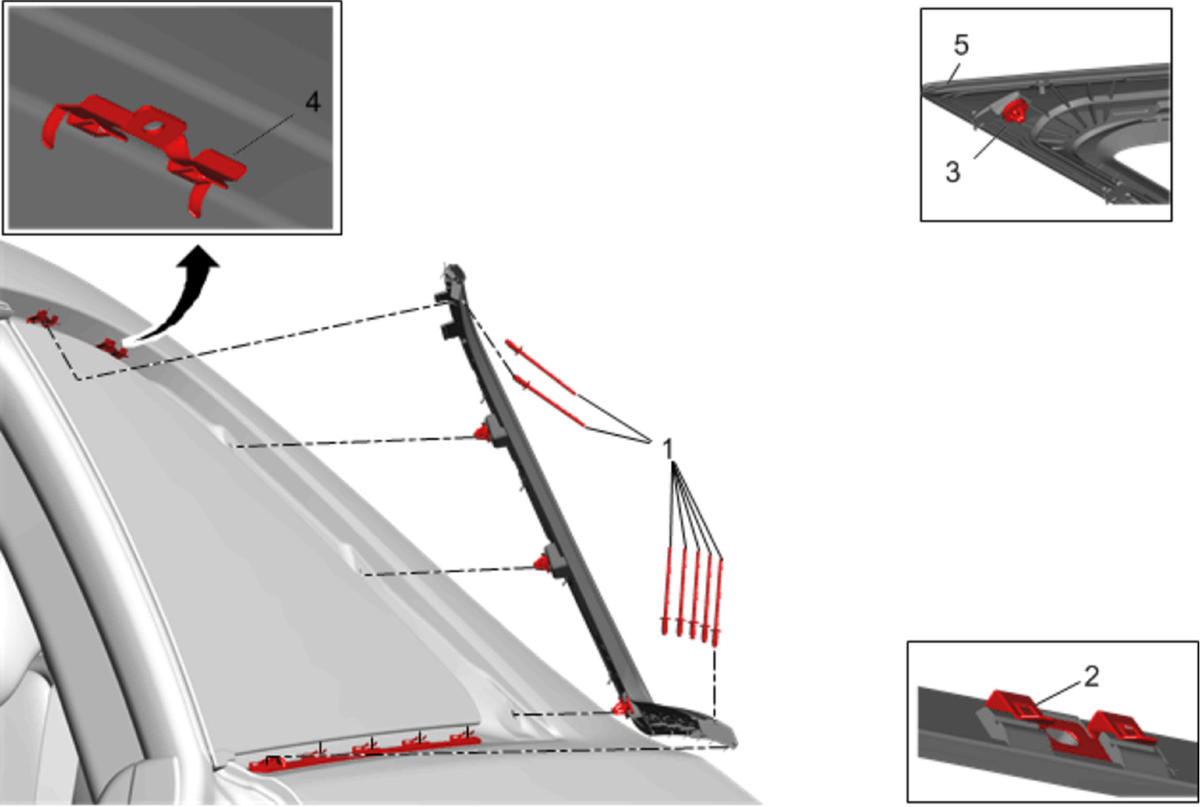

| Callout | Component Name |
|---|---|
| 1 | Rivet (Qty: 7)
WARNING:
Eye protection must be worn when drilling rivets to reduce the chance of personal injury. Procedure Using a twist type drill, remove the rivets. |
| 2 | Rear Side Door Molding Lower Retainer (Qty: 5) Procedure Using an appropriate tool, release the lower molding from the retainers on the vehicle. |
| 3 | Upper Rear Side Door Opening Frame Molding Retainer (Qty: 3) Procedure Using an appropriate tool, release the retainers and molding from the vehicle. |
| 4 | Rear Side Door Molding Upper Retainer (Qty: 2) Procedure Using an appropriate tool, release the upper molding from the retainers on the vehicle. |
| 5 | Upper Rear Side Door Opening Frame Reveal Molding Procedure Slide molding rearward and out to release from the front side door opening frame reveal molding. |
