Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

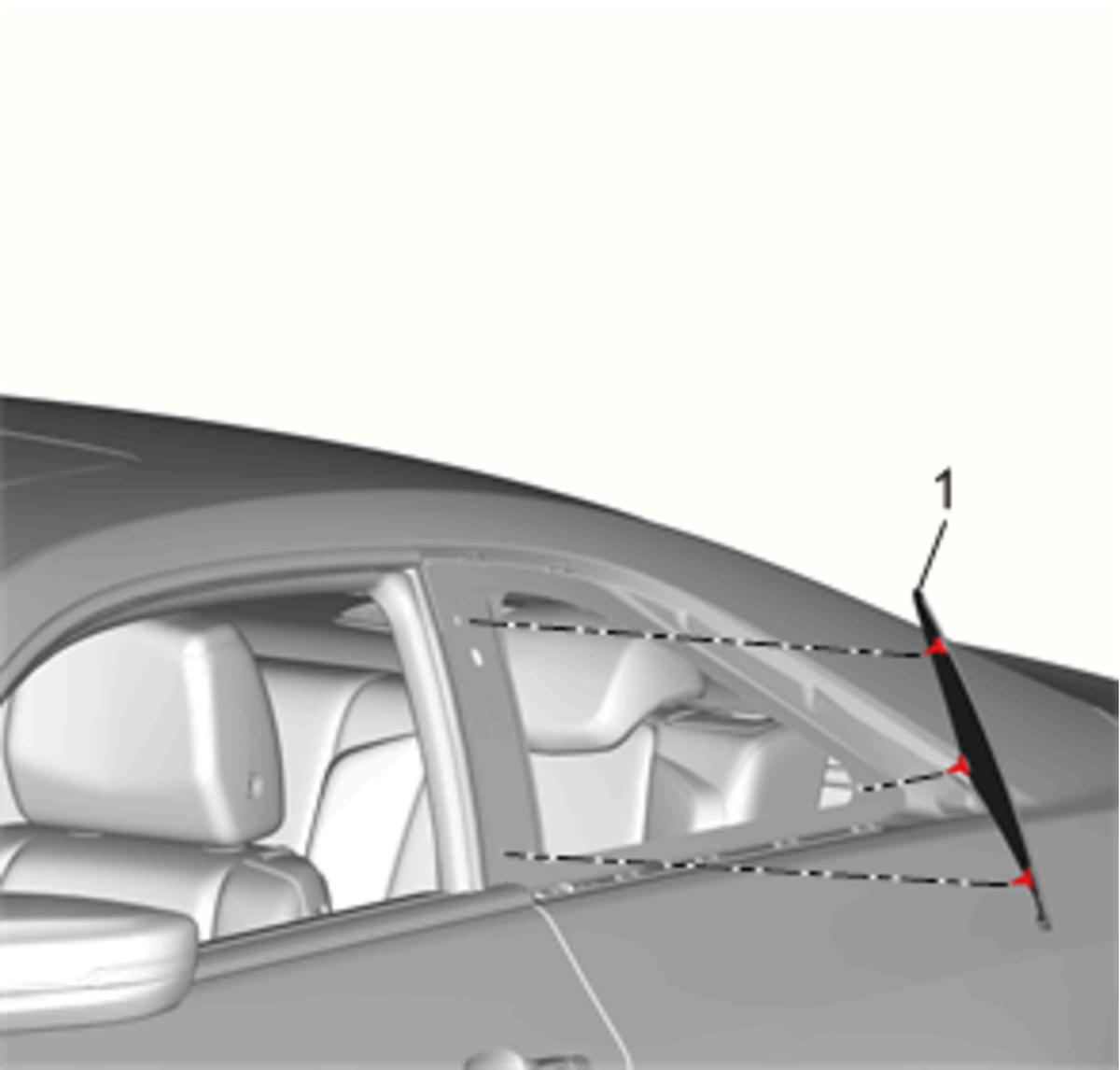

    Fig 1: Quarter Window
    GM3696535Courtesy of GENERAL MOTORS COMPANY
  1. Install the quarter window (1) into the opening. Refer to Adhesive Installation of Encapsulated Stationary Windows .
  2. Install the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Coupe) .
  3. Install the upper rear side door opening reveal molding. Refer to Upper Rear Side Door Opening Reveal Molding Replacement .
  4. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
