Rear Suspension Automatic Forward Lighting Leveling Position Sensor Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

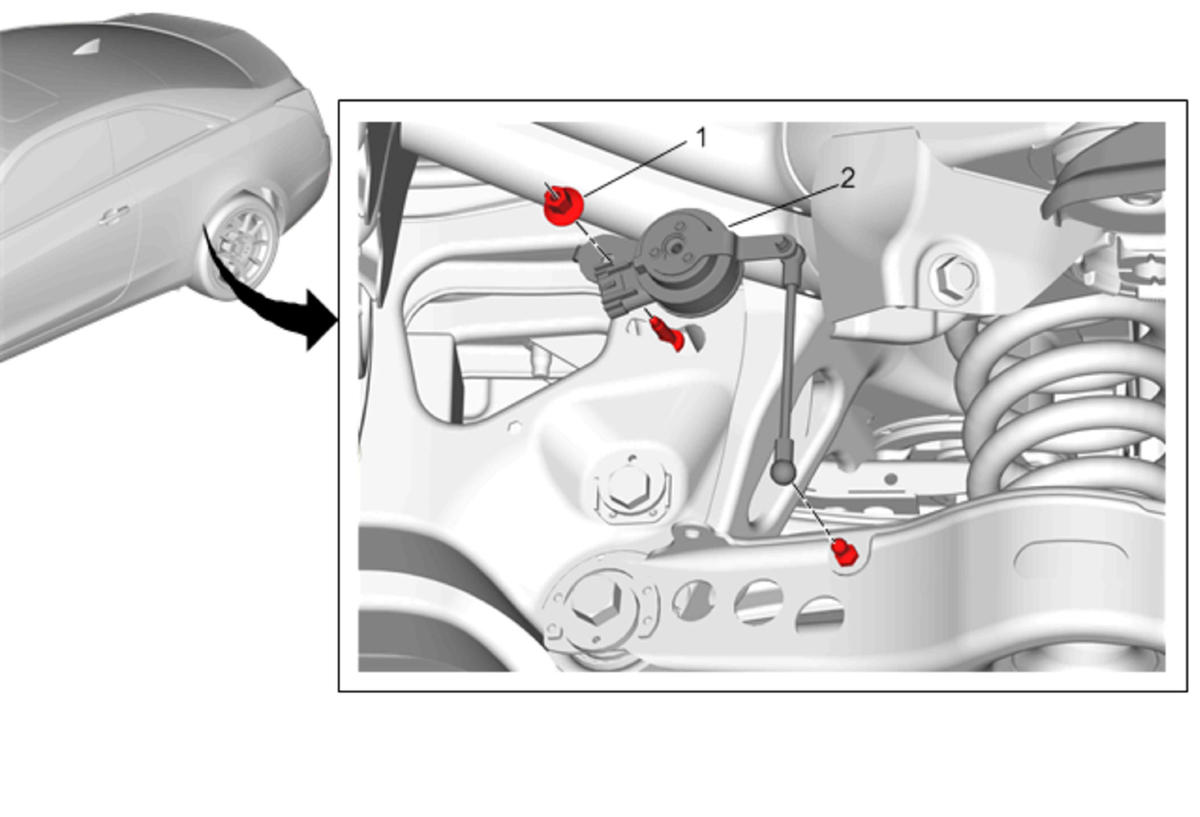

Fig 1: Rear Suspension Automatic Forward Lighting Leveling Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Lift the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . Remove the rear suspension lower control arm cover. Refer to Rear Suspension Lower Control Arm Cover Replacement .
1	Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Suspension Automatic Forward Lighting Leveling Position Sensor Procedure Disconnect the electrical connector. Using an appropriate tool, separate the ball and socket.

Callout

Component Name

Preliminary Procedures

Lift the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
Remove the rear suspension lower control arm cover. Refer to Rear Suspension Lower Control Arm Cover Replacement .

Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Rear Suspension Automatic Forward Lighting Leveling Position Sensor

Procedure

Disconnect the electrical connector.
Using an appropriate tool, separate the ball and socket.
