Rear Suspension Lower Control Arm Cover Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

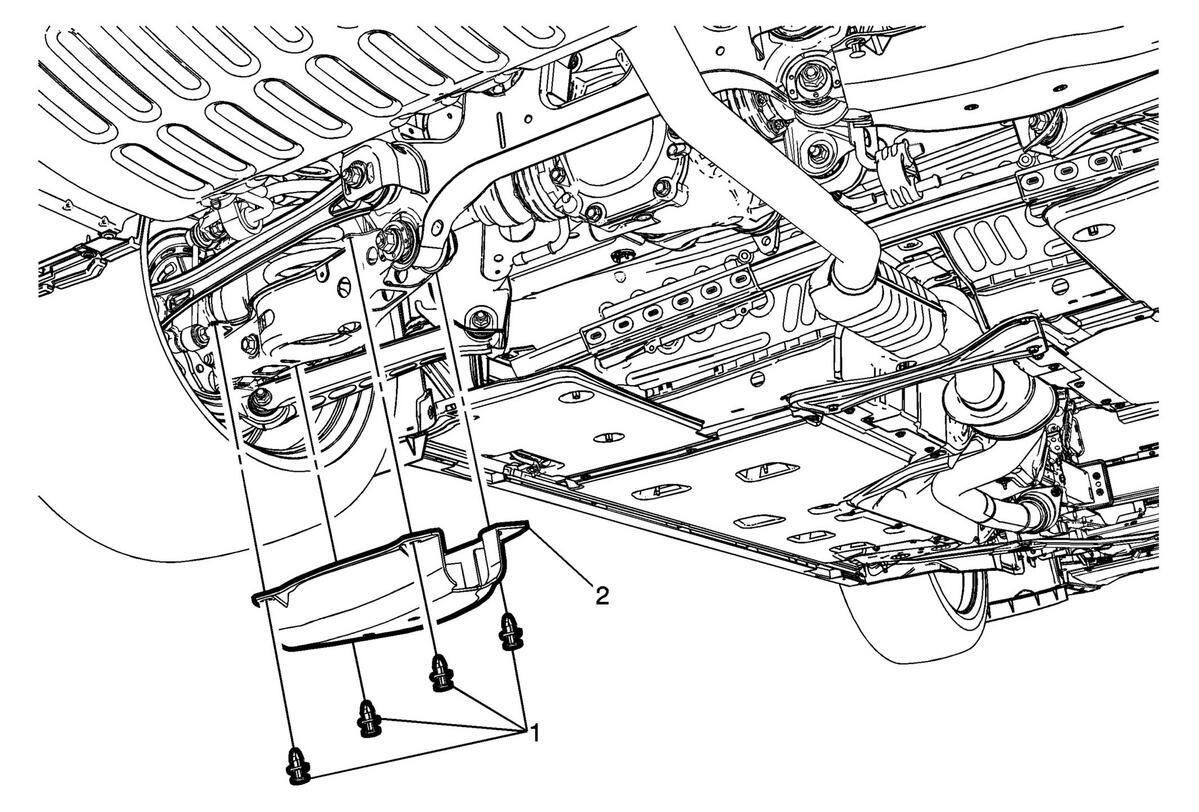

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise the support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) |
|
| 1 | Push Pin Fastener (Qty: 4) Procedure Using the appropriate tool, release the push pin fastener on the lower control arm cover.
NOTE:
Ensure push pin fastener is correctly installed through both the rear suspension lower control arm cover and lower control arm. |
| 2 | Rear Suspension Lower Control Arm Cover
NOTE:
Rear suspension lower control arm covers are not interchangeable from left to right side. Install covers on same side they were removed. |
