Rear Side Door Inside Handle Illumination Lamp Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

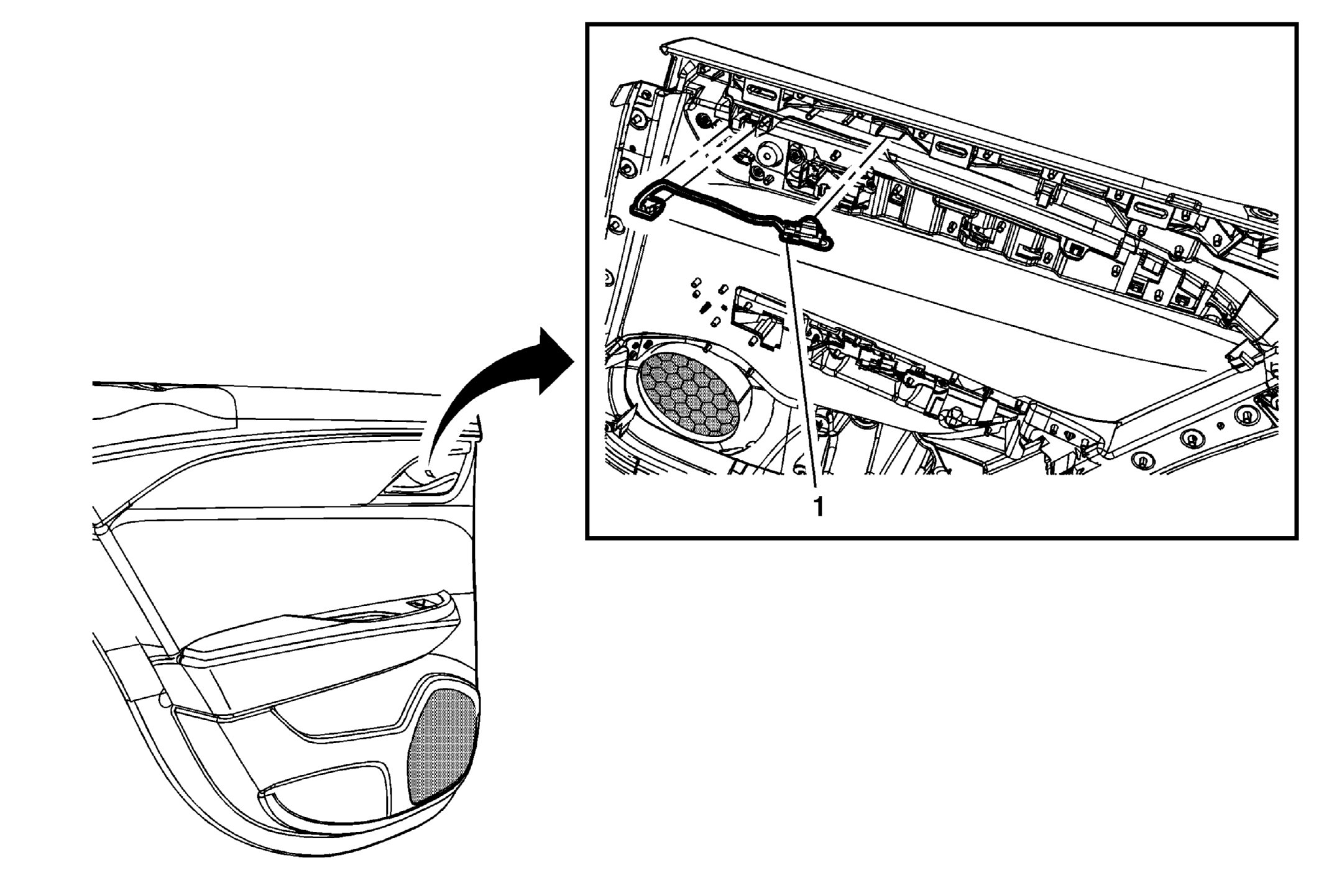

Fig 1: Rear Side Door Inside Handle Illumination Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the rear side door trim panel applique. Refer to Rear Side Door Trim Panel Applique Replacement .
1	Rear Side Door Inside Handle Illumination Lamp Procedure Disconnect the electrical connectors. Unsnap lamp assembly from the rear side door inside handle.

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
Remove the rear side door trim panel applique. Refer to Rear Side Door Trim Panel Applique Replacement .

Rear Side Door Inside Handle Illumination Lamp

Procedure

Disconnect the electrical connectors.
Unsnap lamp assembly from the rear side door inside handle.
