Rear License Plate Lamp Bulb Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

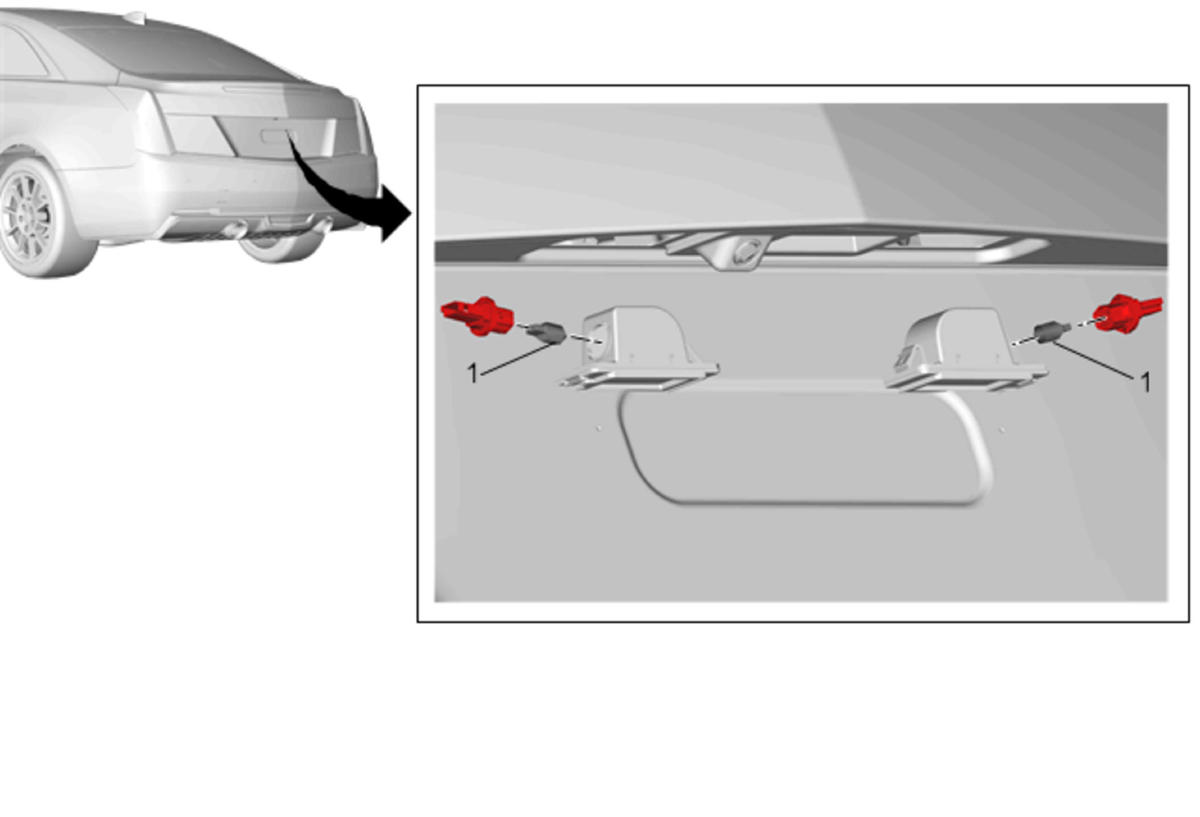

Fig 1: Rear License Plate Lamp Bulb (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear license plate lamp. Refer to, Rear License Plate Lamp Replacement (Coupe) .
1	Rear License Plate Lamp Bulb Procedure Rotate the rear license plate lamp bulb socket counterclockwise and remove from rear license plate lamp. While holding the rear license plate lamp bulb socket, pull rear license plate lamp bulb straight out from rear license plate lamp bulb socket.

Callout

Component Name

Preliminary Procedure
Remove the rear license plate lamp. Refer to, Rear License Plate Lamp Replacement (Coupe) .

Rear License Plate Lamp Bulb

Procedure

Rotate the rear license plate lamp bulb socket counterclockwise and remove from rear license plate lamp.
While holding the rear license plate lamp bulb socket, pull rear license plate lamp bulb straight out from rear license plate lamp bulb socket.
