Rear License Plate Lamp Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |

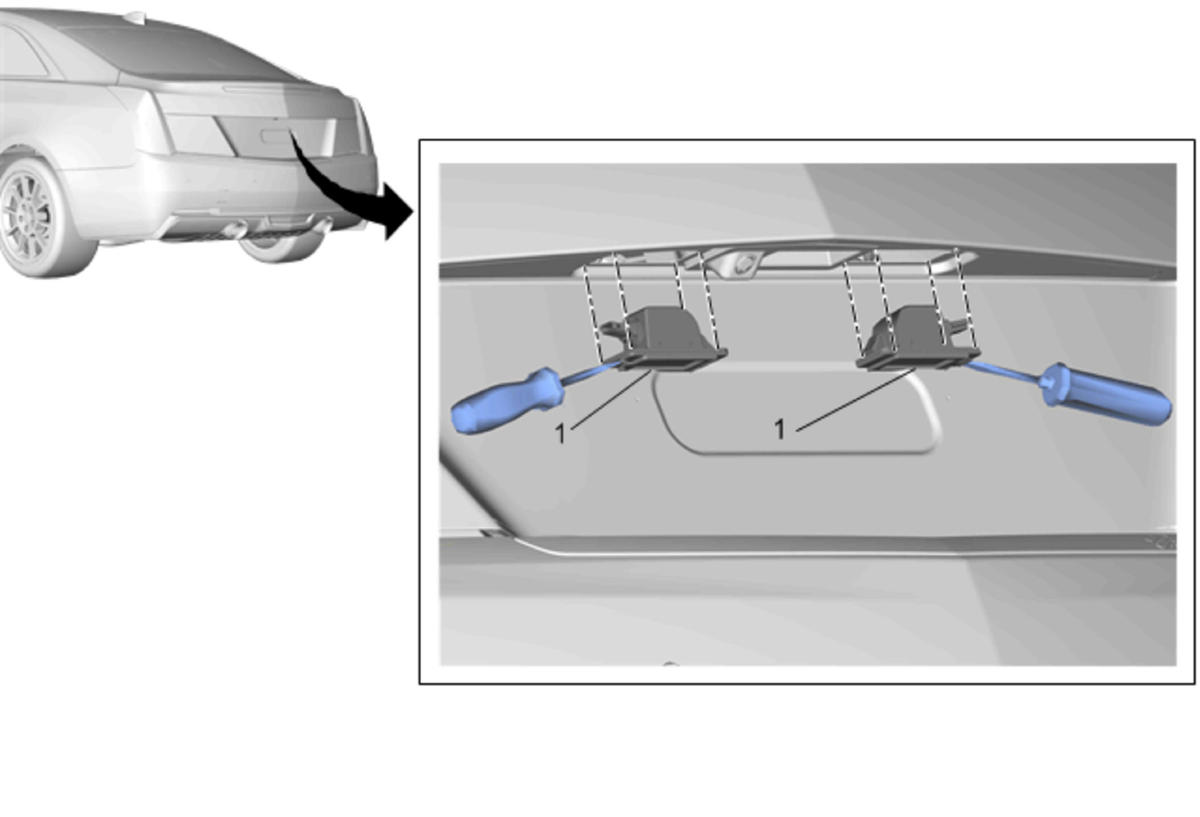

Rear License Plate Lamp Procedure
- Use an appropriate tool, compress the retainer on the outboard end of the rear license plate lamp and release the rear license plate lamp from the rear compartment lid.
- Disconnect electrical connector.
|
