High Mount Stop Lamp Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

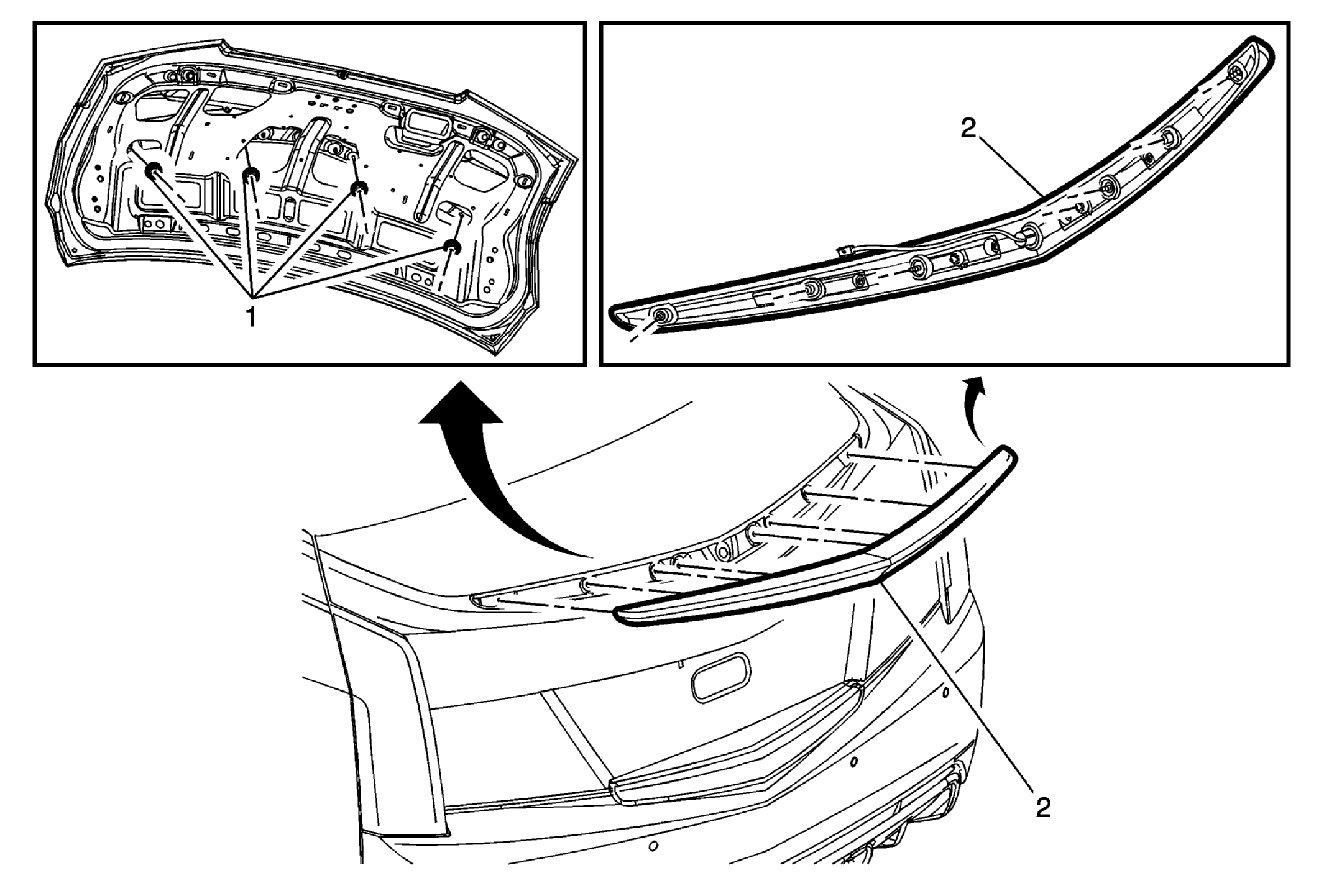

Fig 1: High Mount Stop Lamp (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	High Mount Stop Lamp Nut (Qty: 4) CAUTION: Refer to Fastener Caution .
2	High Mount Stop Lamp Procedure Disconnect the electrical connector. Compress the tabs to release the 2 high mount stop lamp retainers. Remove the high mount stop lamp from the vehicle.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

High Mount Stop Lamp Nut (Qty: 4)

CAUTION:

Refer to Fastener Caution .

High Mount Stop Lamp

Procedure

Disconnect the electrical connector.
Compress the tabs to release the 2 high mount stop lamp retainers.
Remove the high mount stop lamp from the vehicle.
