Headlamp Bracket Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

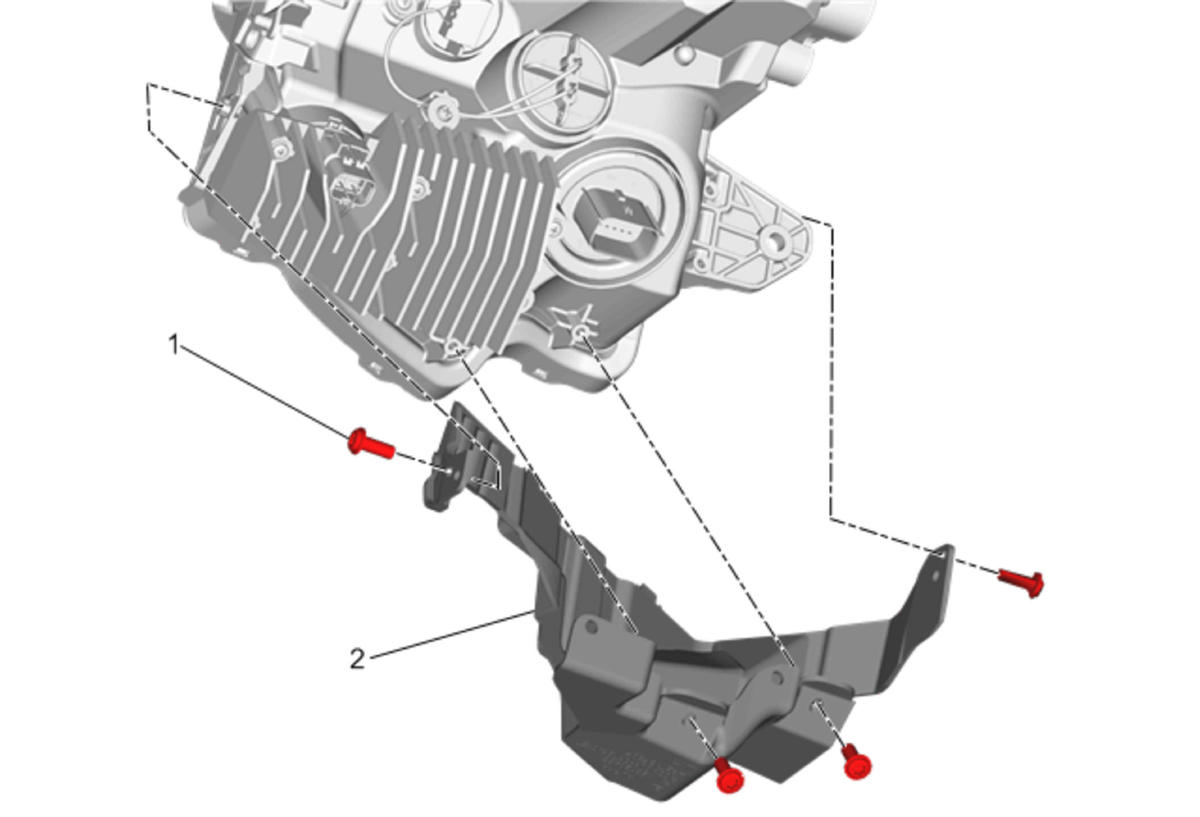

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the headlamp. Refer to Headlamp Replacement (Coupe with HID) Headlamp Replacement (Coupe with Halogen) . |
|
| 1 | Headlamp Bracket Screw (Qty: 4) Procedure Hand tighten the screw only, in order to secure the bracket to the bottom of the headlamp assembly. |
| 2 | Headlamp Bracket |
