Hazard Warning Switch Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

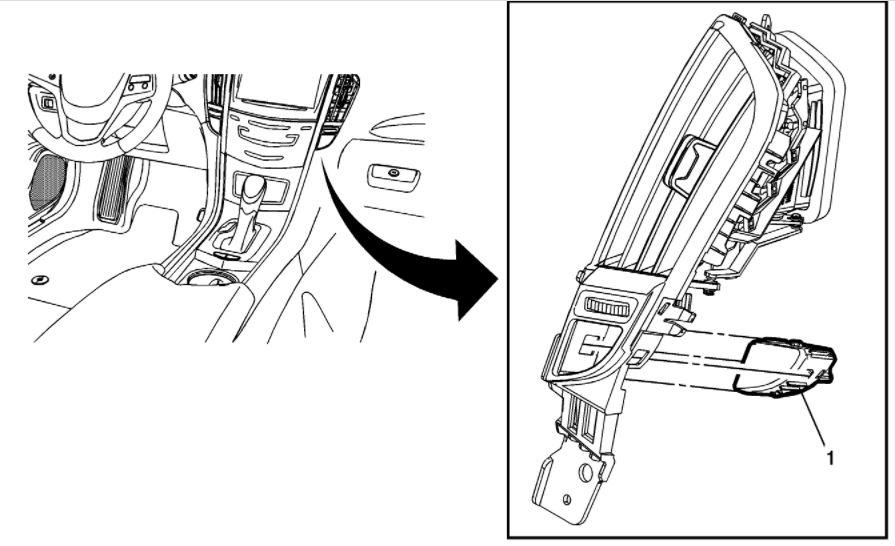

Fig 1: Hazard Warning Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel air outlet - right side. Refer to Instrument Panel Center Air Outlet Replacement - Right Side .
1	Hazard Warning Switch Procedure Disconnect electrical connection. Depress tabs on switch and remove from the air outlet.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel air outlet - right side. Refer to Instrument Panel Center Air Outlet Replacement - Right Side .

Hazard Warning Switch

Procedure

Disconnect electrical connection.
Depress tabs on switch and remove from the air outlet.
